Sealed Gage Transducers with 4 to 20mA Output
PX429 and PX449 Sealed Gage Series
CE

Sealed Gage Transducer | High Accuracy & Low Drift

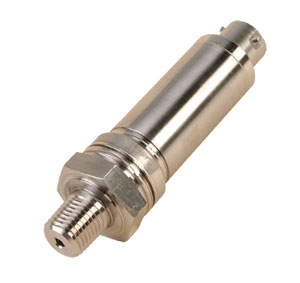

PX429 and PX449 Sealed Gage Series:Sealed Gage Transducers with 4 to 20mA Output
Click for larger image.

¥ 7,125.00  PX429-3.5KSGI
• FAST DELIVERY! Stock to 1-Week!
• All 316L Stainless Steel Wetted Parts
• High 0.08% Accuracy
• Hermetically Sealed for the Harest Environments
• Available with Solder Pins for Twist-lock Connector Terminations
• Ranges from 0-100 to 0-5000 psis (sealed gage)
• Shock and Vibration Tested

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The hermetically sealed gage version of the PX409 Series features all welded Stainless Steel construction, 316L wetted parts and glass to metal seals (GMS) at the electrical outlets with either twist lock connector (PX429) or solder pins (PX449) terminations. This ensures that the unit is hermetically sealed from external environments and the media. Designed for use on automotive and aircraft test platforms and anywhere environmental concerns demand the most durable characteristics. The sealed gage models have the PX409 Series micro machined silicon core that provides high accuracy, low drift and excellent long term stability in the harshest environments.

4 to 20 mA SPECIFICATIONS
Output: 4 to 20 mA
Supply Voltage: 9 to 30 Vdc max loop res Ω = (Vs-9)x50 [9 to 20 Vdc above 105°C (229°F)]
Accuracy (Combined Linearity, Hysteresis and Repeatability): ±0.08% BSL max
Zero Balance: ±0.5% full scale typical 1% max (1% typical, 2% max for 1 psi and below)
Span Setting: ±0.5% full scale typical 1% max (1% typical, 2% max for 1 psi and below); calibrated in vertical direction with fitting down
Shock: 50 g 11 mS half sine, vertical and horizontal axis
Vibration: 5-2000-5 Hz 30 minute cycle, Curve L Mil-Spec 810 figure 514-2-2, horizontal and vertical axis
Operating Temperature Range: -45 to 115°C (-49 to 240°F)
Compensated Temperature:
    Ranges >5 psi: -29 to 85°C (-20 to 185°F)
    Ranges ≤5 psi: -17 to 85°C (0 to 185°F)
Thermal Effects Zero (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Thermal Effects Span (Over Compensated Range):
    Ranges >5 psi: ±0.5% span
    Ranges ≤5 psi: ±1.0% span
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Twist-Lock Termination
 PX429-100SGI 8 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 100psi
 PX429-150SGI 8 Weeks   ¥7,165.00    4 to 20 mA Output, Sealed Gage 150psi
 PX429-250SGI 8 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 250psi
 PX429-500SGI 8 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 500psi
 PX429-750SGI 8 Weeks   ¥7,165.00    4 to 20 mA Output, Sealed Gage 750psi
 PX429-1.0KSGI 8 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 1000psi
 PX429-1.5KSGI 15 Weeks   ¥7,165.00    4 to 20 mA Output, Sealed Gage 1500psi
 PX429-2.5KSGI 8 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 2500psi
 PX429-3.5KSGI 25 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 3500psi
 PX429-5.0KSGI 25 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 5000psi
 Glass to Metal Seal Pins
 PX449-100SGI    Consult sales   4 to 20 mA Output, Sealed Gage 100psi
 PX449-150SGI    Consult sales   4 to 20 mA Output, Sealed Gage 150psi
 PX449-250SGI    Consult sales   4 to 20 mA Output, Sealed Gage 250psi
 PX449-500SGI    Consult sales   4 to 20 mA Output, Sealed Gage 500psi
 PX449-750SGI    Consult sales   4 to 20 mA Output, Sealed Gage 750psi
 PX449-1.0KSGI    Consult sales   4 to 20 mA Output, Sealed Gage 1000psi
 PX449-1.5KSGI    Consult sales   4 to 20 mA Output, Sealed Gage 1500psi
 PX449-2.5KSGI 8 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 2500psi
 PX449-3.5KSGI    Consult sales   4 to 20 mA Output, Sealed Gage 3500psi
 PX449-5.0KSGI 25 Weeks   ¥7,125.00    4 to 20 mA Output, Sealed Gage 5000psi
 Accessories
 PT06F10-6S In Stock   ¥326.00    Mating connector for PX429 (sold separately)
† Price are shown in RMB.

 Note: Comes complete with 5-point NIST traceable calibration. See page B-174 for compatible meters.
