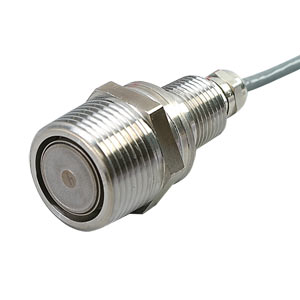

OMEGA's PX42 is a high-accuracy,
millivolt output, industrial pressure
transducer with a specially designed
flush diaphragm for use with
industrial fluids and slurries
that are difficult to measure
because of sticking or plugging of
orifices. Its hermetically sealed, all
stainless steel construction makes it
suitable for the harshest industrial
environments. Three meters (10')
of vented 4-conductor shielded
cable is standard with a ½ NPT
fitting on the body for conduit
installation. Pressure ranges from
0 to 3 up to 30 psi are available
to cover most processing and
industrial applications.
The PX42 is also available in metric configurations, with G1 ports, and models from 0-400 mbar to 0-1.6 bar pressure ranges.
Please see the PXM42 for complete details, or contact our Pressure department for more information..
PERFORMANCE
Accuracy: 0.25% linearity, hysteresis and repeatability combined
ENVIRONMENTAL
Operating Temp Range: -54 to 121°C (-65 to 250°F) Compensated Temp Range: 16 to 71°C (60 to 160°F) Thermal Effects: Span: 0.005% of rdg/°F Zero: 0.005% of FSO/°F
PRESSURE
Proof Pressure: ≤8 psi: 300% of rated pressure >8 psi: 200% of rated pressure Burst Pressure: 500% of rated pressure
MECHANICAL
Wetted Parts: 316L SS with InconelR diaphragm Optional: Hastelloy C-276 Pressure Port: 1-11½ NPT male Electrical Connection: 3 m (10') 4-conductor shielded vented cable
