Discontinued - Thin Film Pressure Sensor with 100 mV Output, Excellent Long Term Stability

PX602 and PX612

PX602 and PX612:Discontinued - Thin Film Pressure Sensor with 100 mV Output, Excellent Long Term Stability

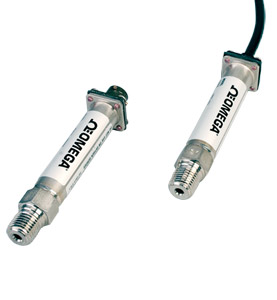

Click for larger image.

^¥ 3,665.00 PX602-015GV

•	All Stainless Steel Case
•	Small and Lightweight
•	NEMA 4 Rated
•	Connector or Cable Models
View related products - Sensors

SPECIFICATIONS
Excitation: 10 Vdc (5 to 10 Vdc limits)
Output: 0 to 100 mV @ 10 Vdc
Sensitivity: 10 mV/V
Input Impedance: 1500 Ω
Output Impedance: 100 Ω
Insulation Resistance: 100 MΩ @50 Vdc
Accuracy: ±0.4% BFSL
Hysteresis: ±0.2%
Repeatability: ±0.05%
Stability: ±1%/year
Zero Balance: ±1%
Durability: 100 million cycles
Operating Temp: -48 to 91°C (-55 to 195°F)
Compensated Temp: -29 to 82°C (-20 to 180°F)
Thermal Zero Effect: ±0.07% FS/°C
Thermal Span Effect: ±0.07% FS/°C
Proof Pressure:
    15 to 2000 psi = 200%
    3000 to 5000 psi = 150%
    7500 to 20,000 psi = 120%
Burst Pressure:
    15 to 2000 psi = 800%
    3000 to 20,000 psi = 500%
Gages: Thin film polysilicon
Diaphragm: 17-4 PH stainless steel
Case: 300 Series stainless steel
Pressure Connection:
    15 to 10,000 psi: ¼ NPT
    15,000 and 20,000 psi: ⁹⁄16-18 UNF Aminco fitting
Electrical Connection: 0.9 m (36") braided-shield PVC cable or connector
Weight: 71 g (2.5 oz.) without cable
Response time: 5 ms
Construction: Sealed units (except PX602 ≤ 500 psi is vented to room)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PX602-015GV	9 Weeks	¥3,665.00	0-15 psi cable style Gage pressure transducer with millivolt output	qty.

PX602-100GV	9 Weeks	¥3,480.00	0-100 psi cable style Gage pressure transducer with millivolt output	qty.

PX612-1KGV	9 Weeks	¥3,810.00	1,000 psi connector style Gage pressure transducer with millivolt output	qty.

PX612-10KGV	2 Weeks	¥4,305.00	10,000 psi connector style Gage pressure transducer with millivolt output	qty.

PT06F8-4S	2 Weeks	¥291.00	Mating connector for PX612 series (sold separately)	qty.

† Price are shown in RMB.

Note: Comes with complete operator’s manual.
15,000 and 20,000 psi models supplied with female AMINCO fitting.
Ordering Example: (1) PT06F8-4S Mating Connector (sold separately), ¥291.00, plus (1) PX612-100GV a 100 psi connector style transducer, ¥3,810.00, ¥291.00 + 3,810.00 = $4,101.00

Part Number Builder

	(1)		(2)
P P X X 6 6		- -
Qty:

Option Descriptions

(1)

Cable or Connector Style

Select
02 for 3 foot cable
12 for 4 pin connector (mating connector sold separately)

(2)

Range

Select
015GV for 0 to 15 psi
030GV for 0 to 30 psi
060GV for 0 to 60 psi
100GV for 0 to 100 psi
150GV for 0 to 150 psi
200GV for 0 to 200 psi
300GV for 0 to 300 psi
500GV for 0 to 500 psi
1KGV for 0 to 1000 psi
2KGV for 0 to 2000 psi
3KGV for 0 to 3000 psi
5KGV for 0 to 5000 psi
7.5KGV for 0 to 7500 psi
10KGV for 0 to 10000 psi
15KGV for 0 to 15000 psi
20KGV for 0 to 20000 psi

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
