PX91-MV

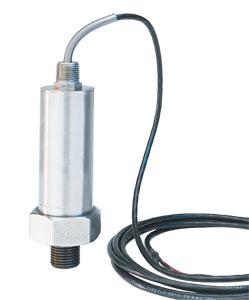

High Temperature High Pressure Transducer

Click for larger image.

^¥ 10,995.00 PX91N0-10KSV

•	All Stainless Steel Construction
•	High Operating Temperature 218°C (425°F)
•	Hermetically Sealed for Harsh Environments
•	Pressure adaptors available C250 Fitting
•	See Related Links Below for Cables and Accessories
•	Comes with 5-point NIST traceable calibration
View related products - Pressure Transducers

OMEGA’s PX91 Series is a rugged, very high temperature pressure transducer series. It is hermetically sealed, has all stainless steel construction and is designed for use in very high temperature test chambers. The PX91 is available in sealed gage pressures up to 200,000 psi and operating temperature up to 218°C (425°F). The pressure connection is via a high pressure ferrule connection.

SPECIFICATIONS
Excitation: 10 V ac/dc (15V max)
Output: 1 mV/V ±0.25%
Bridge Resistance: 350 Ω nominal
Zero Balance: ±2.5%
Linearity: ±0.35% FSO <75K psi ±0.50% FSO ≥75K psi
Hysteresis: ±0.10% FSO
Repeatability: ±0.10% FSO
Operational Temp Range: -73 to 218°C (-100 to 425°F)
Compensated Temp Range: -18 to 218°C (70 to 425°F)
Thermal Effects:
   Span: 0.01% Rdg/°F
   Zero: 0.01% FSO/°F
Proof Pressure:
   5K to 50K psi: 120% of rated pressure
   60K to 200K psi: 110% of rated pressure
Burst Pressure:
   5K to 50K psi: 150% of rated pressure
   60K to 200K psi: 120% of rated pressure
Wetted Parts:
   5 to 75K: 17-4 PH Stainless Steel
   80K to 200K: 455 Stainless Steel
Pressure Port:
   5K to 70K psi: 1/2-14 NPS (use with 0.315 dia. 59° ferrule)
   >70K psi: 1-14 NS-2 (use with 0.910 dia 150° ferrule)
Electrical Connection: 10ft (3m) 4-conductor shielded cable

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PX91N0-10KSV	18 Weeks	¥10,995.00	0-10,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-15KSV	18 Weeks	¥10,995.00	0-15,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-20KSV	18 Weeks	¥10,995.00	0-20,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-30KSV	18 Weeks	¥10,995.00	0-30,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-35KSV	18 Weeks	¥10,995.00	0-35,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-50KSV	18 Weeks	¥11,055.00	0-50,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-60KSV	18 Weeks	¥10,995.00	0-60,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91N0-70KSV		Consult sales	0-70,000 psi sealed gage transducer with 1/2 -14 NPS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91P0-80KSV	18 Weeks	¥16,235.00	0-80,000 psi sealed gage model with a 1-14 NS fitting, 10 ft (3m) cable and a mV/V output	qty.

PX91P0-100KSV	18 Weeks	¥16,235.00	0-100,000 psi sealed gage model with a 1-14 NS fitting, 10 ft (3m) cable and a mV/V output	qty.


Pressure Adaptors

PA9150K-250C	2 Weeks	¥2,130.00	60K psi max adaptor to 250C fitting	qty.

PA9150K-375C	12 Weeks	¥2,130.00	60K psi max adaptor to 350C fitting	qty.

PA9150K-H1P-XF6		Consult sales	100K psi max adaptor to HIP, XF6 fitting	qty.

PA91100K-250C	2 Weeks	¥2,120.00	60K psi max adaptor to 250C fitting	qty.

PA91100K-375C	2 Weeks	¥2,060.00	60K psi max adaptor to 375C fitting	qty.


Replacement Cones

PX91PCS-N	3 Weeks	¥355.00	Replacement cone for "N" style pressure fitting used on ranges of 60,000 psi and below	qty.

PX91PCS-P	5 Weeks	¥334.00	Replacement cone for "P" style pressure fitting used on ranges of 80,000 psi and above	qty.

† Price are shown in RMB.

Note: Comes complete with 5-point NIST traceable calibration. Metric Ranges available - Consult Engineering
Ordering Example: (1) PX91P0-100KSV is a 100,000 psi sealed gage model with a 1-14 NS fitting and 10 ft (3m) cable and a mV/V output, ¥16,235.00

Part Number Builder

Option Descriptions

(1)

Pressure Port

Select
N for 1/2 -14 NPS use with 0.315in. dia 59° ferrule (70K psi or less)
P for 1-14 NS-2 use with 0.910in. dia. 150° ferrule (greater than 70K psi)

(2)

Electrical Connection

Select
0 for 10 ft (3m) Cable
1 for PT1H-10-6P Connector or Equal (no charge)
5 for Lightening Protected Amplifier Housing (no charge)

(3)

Range (psi)

Select
5K for 0-5000 psi
10K for 0-10000 psi
15K for 0-15000 psi
20K for 0-20000 psi
30K for 0-30000 psi
35K for 0-35000 psi
50K for 0-50000 psi
60K for 0-60000 psi
80K for 0-80000 psi
100K for 0-100000 psi
120K for 0-120000 psi
150K for 0-150000 psi
200K for 0-200000 psi

(4)

Output

Select
SV for mV/V
S5T for 0-5 Vdc
SI for 4-20 mA

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
