Discontinued -General Purpose Pressure Transducer |
| PXM35 Metric Series |
|
 |
|
|
General Purpose Pressure Transducer Metric
 |

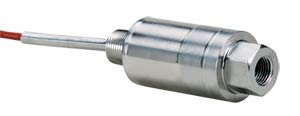

| Click for larger image. |
|
|
|
|
|
|
 |
OMEGA’s PXM35 Series is a high accuracy, millivolt output, industrial pressure transducer. Its all stainless steel construction make it suitable for the harshest environments. The PXM35 is available in gauge, sealed gauge or absolute models. A twist lock connector electrical termination is standard.
The PXM35 is also available in standard/imperial configurations, with NPT ports, and models from 0-15 to 0-30,000 psi pressure ranges.
Please see the PX35 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc (15 V Max)
Output: 3 mV/V ±20%
Accuracy: 0.25% Linearity, Hysteresis and Repeatability Combined
Zero Balance: ±2.0% FSO
Input Resistance: 350 Ohms Min.
Output Resistance: 315 to 530 Ohms
Operational Temp Range: -73 to 149°C (-100 to 300°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.0054% Rdg/°C
Zero: 0.008% FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4PH Stainless Steel
Pressure Port: G 1/4 MALE Standard
Optional: G 1/4 Female, G 1/8 Male/Female
Electrical Connection: 3 m (10 ft) 4-conductor cable
|
|
|
|
|
|
† Price are shown in RMB.
Note: Mating connector sold separately. Part number PT06F10-6S, $26.50 each.
To order Absolute Pressure models, change "G" in the part number to "A". No charge.
To order Sealed Gauge models, change "G" in the part number to "S". No charge.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) PT06F10-6S mating connector, ¥326.00,
|
|
|
|
|
| |
|
