Discontinued - Heavy Duty Industrial Transmitter |
| PXM41-5V Metric Series |
|
 |
|
|
|
|
 |
END OF LIFE NOTICE:
The PX41 and PXM41 Series transducers are scheduled to go out of production at the end of 2017. The replacements are the PX51/PXM51 transducers. Please direct any Questions to Pressure Application Engineering.

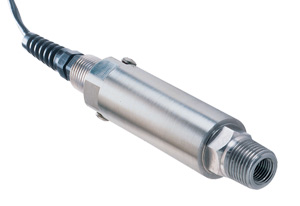

OMEGA’s PXM41 Series is a high accuracy, rugged, low cost 5V output, industrial pressure transducer. Its all stainless steel construction makes it suitable for the harshest environments. The PXM41 is available in gauge, absolute or sealed models. Three metres of four conductor shielded cable is standard. Twist-lock style or Micro DIN connectors are also available. A wide selection of amplified voltage and current output models in the PXM41 family makes this a truly versatile family of industrial transducers.
The PXM41 is also available in standard/Imperial configurations, with NPT ports, and models from 0-10 to 0-30,000 psi pressure ranges.
Please see the PX41 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10-35 Vdc
Output: 0.5 to 5.5 Vdc; adj± 10%
Zero Balance: 0.5 V; adj ±10% FSO
Accuracy: 0.25% FS Linearity and Hysteresis Combined
Operational Temp Range: -47 to +121°C (-50 to +250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Span: 0.0054% of Rdg/°C
Zero: 0.009% of FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH Stainless Steel
Pressure Port: G 1/4 Male or Female, G 1/8 Male or Female
Electrical Connections:
Style "0" = 3 m cable
Style "1" = PTIH-10-6P connector
Style "6" = micro DIN
See Custom Configurations
Mating Connector:
Style "1" = PT06F-10-6S (not included)
Style "6" = included
Weight: 170 g (6 oz)
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: To order Sealed Gauge Pressure models, replace "G" in model number with "S" (no charge).
To order Absolute Pressure models replace "G" in model number with "A" (no charge).
NIST Traceable Calibration Certificate Included
For Imperial Threads and psi Ranges please see the PX41-I Series
For complete product specifications see the Related Links section at the bottom of this page.
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Fitting
|
| |
Select
MA for G 1/8 male
MB for G 1/8 female
MC for G 1/4 male
MD for G 1/4 female
|
(2)
|
Electrical Termination
|
| |
Select
0 for 3 meter cable
1 for PT1H-10-6P connector (mating connector sold separately)
6 for micro DIN connector (no shunt cal)
|
(3)
|
Pressure Range
|
| |
Select
001 for 0-1 Bar
1.60 for 0-1.6 Bar
2.50 for 0-2.5 Bar
004 for 0-4 Bar
006 for 0-6 Bar
010 for 0-10 Bar
016 for 0-16 Bar
025 for 0-25 Bar
040 for 0-40 Bar
060 for 0-60 Bar
100 for 0-100 Bar
160 for 0-160 Bar
250 for 0-250 Bar
400 for 0-400 Bar
|
(4)
|
Units
|
| |
Select
A for Absolute Pressure
G for Gage Pressure
S for Sealed Gage Pressure
|
(5)
|
Output
|
| |
Select
5T for 0 to 5 Volt Output
5V for 0.5 to 5.5 Volt Output
10T for 0 to 10 Volt Output
I for 4 to 20 mA Output
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | |
|
|
|
|
|
|
| |
|
