Discontinued - Diffused Semiconducter Pressure Transmtter, Metric, 0-1 to 0-25 bar, mV/V Output

PXM6000 Series Metric, mV/V

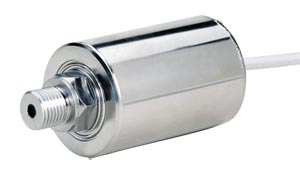

Click for larger image.

•	High Reliability
•	Long Term Stability
•	All Stainless Steel Case
•	Vacuum Range Available
•	Built-In Temperature Sensor
View related products - Pressure Transducers

OMEGA’s PXM6000 Series Pressure Transducer fits easily into your application. This low cost transducer is small and light, and mounting requires no bulky structures. The sensor is a small, about 2.5 mm square, silicon chip with four diffused strain gauges, mounted in the stainless steel case. Laser trimmed resistors provide temperature compensation and adjust zero balance and span. The 30 mV output easily is compatible with most amplifiers and data acquisition systems The PXM6000 uses solid state media isolation for improved reliability. Thin films of chemically inert materials are deposited or grown on the chip surface to provide electrical isolation between the sensor and pressure medium. The sensor is less sensitive to vibration and more dependable in high shock environments because the films add no significant mass. Corrosion resistance is outstanding, and the isolation will remain effective because there is no gel or oil column to deteriorate.

The PXM6000 is also available in standard/imperial configurations, with 1/8 or 1/4 NPT, MS33656-4 or MS33649-4 ports, and models from 0-15 to 0-300 psi pressure ranges. Please see the PX6000 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 10 Vdc Regulated
Output: 3 mV/V ±10%
Input Resistance: 2500 Ohms minimum
Output Resistance: 1000 to 1500 Ohms
Zero Balance: 0 mV ±5% FSO
Dielectric Isolation Resistance: 100 MOhms Mminimum at 45 Vdc
Temperature Sensor: Resistance @ 24°C (75°F) 900 to 1500 Ω
Temperature Coefficient: 8% to 10%. per 55.6°C(100°F)
Accuracy: ± 0.25% FS for all ranges (Linearity, Hysteresis and Repeatability combined )
Operational Temp Range: -54° to 150°C (-65 ° to 300°F)
Compensated Temp Range: -54° to 121°C (-65° to +250°F)
Thermal Effects:
Span: = ± 0.04% of FSO/°C
Zero: = ± 0.04% of FSO/°C
Vibration Sensitivity: At 35g peak sinusoidal vibration from 10 Hz to 2000 Hz ( 1/2" D.A.), the output shall not exceed 0.04% FSO/g for 1 bar range to 0.005% FSO/g for 7 bar and above
Natural Frequency: Greater than 35 kHz for 7 bar and above
Shock: 100g, 11 milliseconds half sine wave without damage
Proof Pressure: 2.0 times rated pressure will not cause changes in performance beyond the specified tolerances
Burst Pressure: 3.0 times rated pressure for pressure ranges below 14 bar, or 2.5 times rated pressure for pressure ranges above 14 bar will not cause rupture of the pressure sensor
Wetted Parts: 316 Stainless Steel, Silicon Nitride, pyrex glass, epoxy, Kovar
Electrical Connection:
Style "0" = 0.6 m (2 ft) cable
Style "1" = PT1H-10-6P connector
Style "6" = micro DIN Connector
Pressure Port: G 1/4 Male (std)
Optional: G 1/4 Female, G 1/8 Male or Female
Weight: 113 g (4 oz.)
Mating Connector:
Style "1" = PT06F10-6S (not inlcuded)
Style "6" Micro DIN mating connector included

For special options consult Sales or Pressure Engineering.

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PXM6000MC6-001BARAV		Consult sales	Diffused semiconductor transducer, 0-1 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-1.60BARAV		Consult sales	Diffused semiconductor transducer, 0-1.6 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-004BARAV		Consult sales	Diffused semiconductor transducer, 0-4 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-006BARAV		Consult sales	Diffused semiconductor transducer, 0-6 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-010BARAV		Consult sales	Diffused semiconductor transducer, 0-10 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-016BARAV		Consult sales	Diffused semiconductor transducer, 0-16 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-025BARAV		Consult sales	Diffused semiconductor transducer, 0-25 Bar absolute pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-001BARGV		Consult sales	Diffused semiconductor transducer, 0-1 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-1.60BARGV		Consult sales	Diffused semiconductor transducer, 0-1.6 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-004BARGV		Consult sales	Diffused semiconductor transducer, 0-4 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-006BARGV		Consult sales	Diffused semiconductor transducer, 0-6 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-010BARGV		Consult sales	Diffused semiconductor transducer, 0-10 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-016BARGV		Consult sales	Diffused semiconductor transducer, 0-16 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

PXM6000MC6-025BARGV		Consult sales	Diffused semiconductor transducer, 0-25 Bar gauge pressure range, G 1/4 male fitting, micro DIN connector and 3mV/V output	qty.

† Price are shown in RMB.

Part Number Builder

	(1)	(2)		(3)		(4)	(5)
P P X X M M 6 6 0 0 0 0 0 0			- -		B B A A R R
Qty:

Option Descriptions

(1)

Pressure Port

Select
MA for G 1/8 male
MB for G 1/8 female
MC for G 1/4 male
MD for G 1/4 female

(2)

Electrical Connection

Select
0 for 0.6 meter shielded cable
1 for PT1H-10-6P connector or equivalent (mating connector sold separately)
3 for 4 pin solder eyelet(no temp. sensor)
6 for micro DIN connector (mating connector included/no temp sensor)

(3)

Pressure Range (Bar)

Select
001 for 0 to 1 Bar
1.60 for 0 to 1.6 Bar
004 for 0 to 4 Bar
006 for 0 to 6 Bar
010 for 0 to 10 Bar
016 for 0 to 16 Bar
025 for 0 to 25 Bar

(4)

Pressure Units

Select
A for Absolute pressure
G for Gauge pressure
S for Sealed gauge pressure

(5)

Output

Select
V for 3 mV/V nominal
5T for 0 to 5 Vdc
I for 4 to 20 mA

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
