RTD Extension Cables |
| RECU, GECU and TECU |
|
 |
|
|

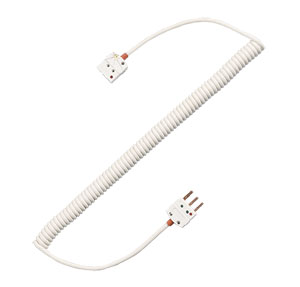

RTD Extension Cables with retractable coil or straight wire
 |
| Click for larger image. |
|
|
|
|
| • |
Retractable Coil Cord Cable in 1 and 4 ft. Lengths with 5:1 Stretch
|
| • |
24 Gage PFA Coated or Glass Overbraid Stranded Copper Wire in 10 and 25 ft. Lengths
|
| • |
3-Wire Copper Leads are standard
|
| • |
Standard Size or Mini Quick Connectors
|
| • |
Two Lead Wires Are Supplied if 2 Lead Connectors Are Ordered
|
| • |
3 or 2 Lead, Round or Flat Pin Connectors
|
View related products - RTD (PT100) Probes, Elements and Assemblies
|
| |
|
|
|
 |
Omega offers various RTD extension cables for interconnecting RTD sensors with instrumentation. They come in either straight or retractable coil configurations,with glass braided or PFA insulating jackets. The retactable coil cord cables come in either 1 foot or 4 foot retracted lenghts that can stretch to 5 feet or 20 feet respectively.Ten termination types are available.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Note: Retractable cables are expandable 5:1. One foot will expand to 5 ft. length. Note: PFA coated wire extension cables are constructed from 24 gage wire.
Ordering Example: (1) RECU1-MTP-U-M-MTP-U-F Retractable cable,1ft(which stretches to 5 ft),with subminiature MTP male and female terminations, ¥267.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
RTD EXTENSION CABLES
|
| |
Select
RECU1 for Retractable cable 1 ft
RECU4 for Retractable cable 4 ft
GECU10 for Straight cable glass braided 10 ft
GECU25 for Straight cable glass braided 25 ft
TECU10 for Straight cable PFA-coated 10 ft
TECU25 for Straight cable PFA-coated 25 ft
|
(2)
|
Termination 1
|
| |
Select
MTP-U-M for MTP male connector
OST-U-M for OST male connector
OTP-U-M for OTP male connector
SMP-U-M for SMP male connector
TA3M for TA3 male connector
|
(3)
|
Termination 2
|
| |
Select
OST-U-F for OST female connector
OTP-U-F for OTP female connector
MTP-U-F for MTP female connector
SMP-U-F for SMP female connector
TA3F for TA3 female connector
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
