3-Pack Class B Industrial Grade RTD Probes, 6 different styles |
| RTD-800 Series |
|
 |
|
|
RTD Sensors Industrial Grade 3-Packs
 |
| Click for larger image. |
|
|
¥
1,785.00

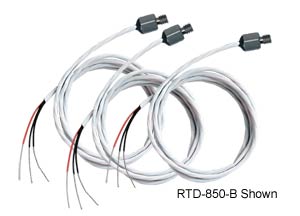

RTD-850-B
|
| • |
Popular Sensor Styles Stocked for Immediate Delivery
|
| • |
Industrial Grade (Class “B”, ±0.12%) Accuracy
|
| • |
6 Styles: Air Probe, Surface Probe, NPT threaded probe, Tab Mount probe, Screw on, Flange Mount
|
| • |
Sold in Economical 3-Packs
|
| • |
Same Rugged Sensor Construction as Our High-Accuracy Sensors, at a Lower Price
|
| • |
Simple, Flexible Sensing Option for a Wide Variety of Measurement Applications
|
| • |
Standard 0.00385 Curve RTD Ellements
|
View related products - RTD (PT100) Probes, Elements and Assemblies
|
| |
|
|
|
 |
The RTD-800 Series probes are made with high performance industrial grade Class "B" RTD sensors assembled in 6 styles and packaged in a convenient 3-pack.
Typical Applications Include: Environmental Monitoring, Performance Testing,
Climate Control, HVAC, Thermal Protection of Electronic Products
(Power Supplies, Electronic Racks, and Enclosures Temperature) and Monitoring of
Processes, Equipment, and Structures
|
|
|
|
|
|
† Price are shown in RMB.
Note: Select Specifications: All sensors are provided with platinum elements with a resistance of 100.00 ±0.12 Ohms at 0°C, and a temperature coefficient (alpha) of 0.00385 Ohms/Ohms/°C. All sensors are supplied with 1 m (40") of 3-conductor, #26 AWG stranded nickel-plated copper, PFA insulated, PFA jacketed cable. Standard termination is stripped leads.
Termination Options Available: For “-MTP” or “-OTP” connectors add “-MTP” or “-OTP” to the model number and add $7 per sensor to the price. For a 3-pin audio connector, add “-TA3F” to the model number and add $10 per sensor to the price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
This product page contains items (OM-CP-QUADRTD) that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
Ordering Example: (1) RTD-850-B Bolt on style RTD Sensor, 3-pack, stainless steel housing, stripped leads termination, 3 feet PFA insulated lead wire., ¥1,785.00
|
|
|
|
|
| |
|
