Encapsulated RTD Sensors
RTD-809

Encapsulated RTD Sensors

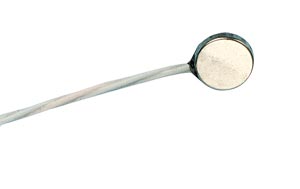

RTD-809:Encapsulated RTD Sensors
Click for larger image.

¥ 1,275.00  RTD-809
• Flat Disc Shape is Ideal for Surface Temperature Measurements
• Bonds to Surfaces for Measuring Heat Loss or Operating Temperatures
• Sensor Contains a High-Accuracy, 100 Ohm, Class “A” DIN Platinum Element. 1 meter (40") or PFA Insulated & Jacketed Cable and 3-Pin Miniature Connector
• Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
• Max temp. 230ºC

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

This flat "disc" encapsulated 100 ohm Class A DIN platinum RTD sensor is ideal for surface temperature measurements such as heat loss or compressor efficiency applications. The sensing end can be cemented into place for permanent mounting or can be adhered using a single-side tape.

When combined with Omega's extension cables, transmitters, controllers, dataloggers, thermometers or temperature displays, these sensors become the heart of a complete temperature control and monitoring system.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RTD-809 In Stock   ¥1,275.00    Encapsulated sensor in a stainless steel housing. PFA insulated lead wire, 1m (40").
 Most Popular Options
 OB-200-2 In Stock   ¥880.00    Omegabond 200 Epoxy, 2oz Twin Pack
 CNi3253 2 Weeks   ¥2,970.00    1/32 DIN Controller with One Analog and One Relay Output
 SPRTX-M1 20 Weeks   ¥2,095.00    4 to 20 ma Plug-In Transmitter
 TX92-4 2 Weeks   ¥5,575.00    Miniature Transmitter, -18 to 260°C
 DP461-RTD    Consult sales   Economical Temperature Meter
 TECU10-MTP-U-M-MTP-U-F 6 Weeks   ¥240.00    10 Foot Long PFA Insulated & Jacketed Extension Cable with 3-Wire Miniature Connectors Both Ends
† Price are shown in RMB.

 Note: Terminations Available: Provided with a miniature connector standard. For heavy-duty connector add “-OTP” to model number and $7 to price. For audio connector add “-TA3F” to model number and $10 to price (note: when specifying the TA3F connector option, please provide the wiring requiremements).

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) RTD-809 Class A RTD sensor, SS housing, PFA lead wire., ¥1,275.00
