Thermocouple Extension Cables with Molded Connectors
TEC(*), REC(*) and GEC(*) Series

Thermocouple Extension Cables with Molded Connectors

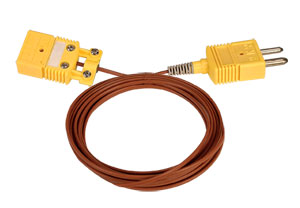

TEC(*), REC(*) and GEC(*) Series:Thermocouple Extension Cables with Molded Connectors
Click for larger image.

¥ 250.00  TECJ10-2
• Retractable Cable in 1 and 4 ft Lengths with 5:1 Stretch
• 24 Gage PFA Coated or Glass Overbraid Stranded Wire in 10 and 25 ft Lengths
• Molded Quick Disconnect or Subminiature Thermocouple Connectors for Low Cost
• Available in J, K, T and E Calibrations

View related products - Wire: Thermocouple, RTD, Thermistor and Hook-Up

Click to scroll below to order See Specs PDF Related Items View a printer friendly page
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.
 TECJ10-2 2 Weeks   ¥250.00    PFA Coated Wire Extension Cable, J Calibration, 10 ft Length, Connector #1 - OST, female, Connector #2 - OST, male
 TECK10-2 7 Weeks   ¥250.00    PFA Coated Wire Extension Cable, K Calibration, 10 ft Length, Connector #1 - OST, female, Connector #2 - OST, male
 TECK10-9 In Stock   ¥228.00    PFA Coated Wire Extension Cable, K Calibration, 10 ft Length, Connector #1 - SMP, female, Connector #2 - SMP, male
 TECT10-9 2 Weeks   ¥250.00    PFA Coated Wire Extension Cable, T Calibration, 10 ft Length, Connector #1 - SMP, female, Connector #2 - SMP, male
 TECK25-9 In Stock   ¥470.00    PFA Coated Wire Extension Cable, K Calibration, 25 ft Length, Connector #1 - SMP, female, Connector #2 - SMP, male
 TECT25-9 2 Weeks   ¥470.00    PFA Coated Wire Extension Cable, T Calibration, 25 ft Length, Connector #1 - SMP, female, Connector #2 - SMP, male
 TECK10-13 2 Weeks   ¥237.00    PFA Coated Wire Extension Cable, K Calibration, 10 ft Length, Connector #1 - SMP, female, Connector #2 - Stripped leads
 TECT10-13 2 Weeks   ¥237.00    PFA Coated Wire Extension Cable, T Calibration, 10 ft Length, Connector #1 - SMP, female, Connector #2 - Stripped leads
 TECK25-13 2 Weeks   ¥495.00    PFA Coated Wire Extension Cable, K Calibration, 25 ft Length, Connector #1 - SMPW, female, Connector #2 - Stripped Leads
 TECK10-14 7 Weeks   ¥228.00    PFA Coated Wire Extension Cable, K Calibration, 10 ft Length, Connector #1 - SMP, female, Connector #2 - Stripped Leads
 GECJ10-9 7 Weeks   ¥240.00    Glass Braid Wire Extension Cable, J Calibration, 10 ft Length, Connector #1 - SMPW, female, Connector #2 - SMP, male
 GECJ25-1 2 Weeks   ¥485.00    Glass Braid Wire Extension Cable, J Calibration, 25 ft Length, Connector #1 - OST, female, Connector #2 - OST, female
 GECK10-9 2 Weeks   ¥240.00    Glass Braid Wire Extension Cable, J Calibration, 10 ft Length, Connector #1 - SMPW, female, Connector #2 - SMP, male
 RECK1-2 7 Weeks   ¥284.00    Retractable Extension Cable, K Calibration, 1ft Length, Connector #1 - OSTW, Female, Connector #2 - OST, male
 RECK1-9 In Stock   ¥311.00    Retractable Extension Cable, K Calibration, 1ft Length, Connector #1 - SMP, male, Connector #2 - SMP, male
 RECK4-2 2 Weeks   ¥505.00    Retractable Extension Cable, K Calibration, 4ft Length, Connector #1 - OSTW, Female, Connector #2 - OST, male
 RECK4-9 2 Weeks   ¥555.00    Retractable Extension Cable, K Calibration, 4 ft Length, Connector #1 - SMP female, Connector #2 - SMP male
 TECJ10-9 2 Weeks   ¥240.00    PFA Wire Extension Cable, T Calibration, 10 ft Length, Connector #1 - SMPW, female, Connector #2 - SMP, male
 TECK10-10 2 Weeks   ¥237.00    PFA Wire Extension Cable, J Calibration, 10 ft Length, Connector #1 - SMP, male, Connector #2 - SMP, male
† Price are shown in RMB.

 Note:
Retractable cables are expandable 5:1, so one foot will expand to 5 ft. in length.
OST connectors are standard size; SMP connectors are subminiature size.
   Part Number Builder
(1) (2) (3) (4) (5)
-
-
Qty:
Option Descriptions
(1) Type
  Select
TEC for PFA Coated Wire
GEC for Glass Braid Wire
REC for Retractable
(2) Calibration
  Select
J for J type (Iron-Constantan)
K for K type (CHROMEGA™-ALOMEGA™)
T for T type (Copper-Constantan)
E for E type (CHROMEGA™-Constantan)
(3) Length
  Select
1 for 1 ft retracted length(for REC cable only).
4 for 4 ft. retracted length(for REC cable only)
10 for 10 ft. (GEC and TEC cable only)
25 for 25 ft. (GEC and TEC cable only)
(4) Connector Code
  Select
1 for Connector #1 OSTW female Connector #2 OSTW female
2 for Connector #1 OSTW female Connector #2 OST male
3 for Connector #1 OSTW female Connector #2 SMPW female
4 for Connector #1 OSTW female Connector #2 SMP male
5 for Connector #1 OST male Connector #2 OST male
6 for Connector #1 OST male Connector #2 SMPW female
7 for Connector #1 OST male Connector #2 SMP male
8 for Connector #1 SMPW female Connector #2 SMPW female
9 for Connector #1 SMPW female Connector #2 SMP male
10 for Connector #1 SMP male Connector #2 SMP male
11 for Connector #1 OSTW female Connector #2 Stripped Leads
12 for Connector #1 OST male Connector #2 Stripped Leads
13 for Connector #1 SMPW female Connector #2 Stripped Leads
14 for Connector #1 SMP male Connector #2 Stripped Leads
15 for Connector #1 OSTW female Connector #2 Spade lug
16 for Connector #1 OST male Connector #2 Spade lug
17 for Connector #1 SMPW female Connector #2 Spade lug
18 for Connector #1 SMP male Connector #2 Spade lug
(5) ROHS
  Select
Nothing(leave field blank) for Non-ROHS
-ROHS for ROHS
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
