RTD Pipe Plug Probe with NPT Fitting

RTD-NPT

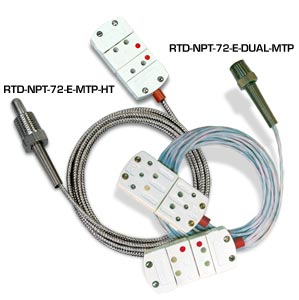

Click for larger image.

•	High Pressure RTD Plug Sensor
•	Available in Either Single or Dual RTD Sensors
•	72" Leads
•	Available with 1/8NPT or 1/4NPT Mounting Threads
View related products - RTD (PT100) Probes, Elements and Assemblies

RTD Single Sensor
This RTD plug sensor is ideal for pressure vessel applications, pressurized containers and applications requiring a temperature sensor with an NPT mounting fitting. The single element design has a 1/4" diameter, 304 stainless steel probe that extends 1/2" from a 1/4"NPT mounting thread (optional 1/8"NPT mounting thread also available). Leads are 6' long, stranded #26 AWG nickel plated copper, PFA-insulated & jacketed with steel overbraid. Sensors are supplied with or without subminiature connectors. Pressure rating is 2500 psi., and the maximum temperature rating is 230°C (445°F).

RTD Dual Element Sensor
Dual RTD pipe plug probes come standard with flush sensing surfaces which minimize interference with moving parts, and 1/8"NPT mounting threads (optional 1/4"NPT mounting threads also available). The leads are 6' long, stranded #26AWG nickel plated copper, PFA insulated & jacketed cables with miniature connectors on each cable.

For complete product specifications see the Related Links section at the bottom of this page.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Pipe Plug RTD Sensors

RTD-NPT-72-E-1/4		¥1,015.00	100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Steel Overbraid and Stripped Leads, 1/4 NPT Mounting Thread, 230°C (450°F) Max Temperature.	qty.

RTD-NPT-72-E-1/4-MTP	2 Weeks	¥1,125.00	100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Steel Overbraid and Miniature Male Connector, 1/4 NPT Mounting Thread and 230°C (450°F) Max Temperature.	qty.

RTD-NPT-72-E-1/8-MTP	2 Weeks	¥1,125.00	100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Steel Overbraid and Miniature Connectors, 1/8 NPT Mounting Thread and 230°C (450°F) Max Temperature.	qty.

RTD-NPT-72-E-1/4-MTP-HT	2 Weeks	¥1,415.00	100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Steel Overbraid and Miniature Connectors, 1/4 NPT Mounting Thread and 480°C (896°F) Max Temperature.	qty.

RTD-NPT-72-E-1/8-MTP-HT	6 Weeks	¥1,390.00	100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Steel Overbraid and Miniature Connectors, 1/8 NPT Mounting Thread and 480°C (896°F) Max Temperature.	qty.


Dual Element RTD Pipe Plug Sensors

RTD-NPT-72-E-DUAL-1/4-MTP	2 Weeks	¥2,300.00	Dual 100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Miniature Connectors, 1/4 NPT Mounting Thread and 230°C (450°F) Max Temperature.	qty.

RTD-NPT-72-E-DUAL-1/8-MTP	2 Weeks	¥1,880.00	Dual 100Ω Class "A" DIN Platinum, 72" Long PFA Insulated Cables with Miniature Connectors, 1/8 NPT Mounting Thread and 230°C (450°F) Max Temperature.	qty.

RTD-NPT-72-E-DUAL-1/4-MTP-HT-S	6 Weeks	¥2,225.00	Dual 100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Seel Braid and Miniature Connectors, 1/4 NPT Mounting Thread and 480°C (896°F) Max Temperature.	qty.

RTD-NPT-72-E-DUAL-1/8-MTP-HT-S	6 Weeks	¥2,185.00	Dual 100Ω Class "A" DIN Platinum, 72" Long Fiberglass Insulated Cables with Steel Overbraid and Miniature Connectors, 1/8 NPT Mounting Thread and 480°C (896°F) Max Temperature.	qty.


Sold Separately, Mating Connector & clamp & other accessory Part Number

OTP-U-F		¥116.00	Mating Connector for OTP Termination end	qty.

MTP-U-F		¥49.00	Mating Connector for MTP Termination type	qty.

SPRTX-M1	12 Weeks	¥2,095.00	4 to 20 ma RTD Connector-Transmitter™, Low Range, Miniature Size Connector.	qty.

DP460-RTD		Consult sales	Economy Temperature Meter	qty.

TX92-5	2 Weeks	¥3,875.00	Miniature Temperature Transmitter (-18 to 399°C)	qty.

DRF-RTD-115VAC-0/200C-4/20		Consult sales	RTD Signal Conditioner with 0 to 200C Range, 4 to 20mA Output and 115Vac Power	qty.

HH804U		¥1,750.00	High Accuracy RTD Input Thermometer	qty.

OM-DAQPRO-5300		Consult sales	Portable Handheld Data Logger	qty.

† Price are shown in RMB.

Part Number Builder

	(1)		(2)	(3)	(4)	(5)
R R T T D D - - N N P P T T - - 7 7 2 2 - - E E		- -
Qty:

Option Descriptions

(1)

RTD Dual Element Sensor

Select
Nothing(leave field blank) for None
-DUAL for Dual 100 U Class A DIN Platinum thin-film elements

(2)

Thread Size

Select
1/4 for 1/4 NPT
1/8 for 1/8 NPT

(3)

Termination Options

Select
-TA3F for Audio Connector
-OTP for OTP Connector
-MTP for MTP Connector
Nothing(leave field blank) for Stripped Leads

(4)

Temperature Range

Select
-HT for 480ºC max
Nothing(leave field blank) for 230ºC max

(5)

Cable Options

Select
Nothing(leave field blank) for None
-S for Steel Overbraid for -DUAL only

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
