NEMA Type 4 Enviroline® Series Single Door Outdoor Electrical Enclosures for Flange Mounted Disconnects
SCE-XEL Series Electrical Disconnect Enclosure
1 year warranty

Outdoor Enclosure

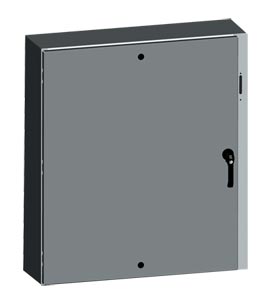

SCE-XEL Series Electrical Disconnect Enclosure:NEMA Type 4 Enviroline® Series Single Door Outdoor Electrical Enclosures for Flange Mounted Disconnects
Click for larger image.

¥ 8,035.00  SCE-20XEL2108LP
• 0.075" Carbon Steel
• Seams Continuously Welded and Ground Smooth
• Flange Trough Collar Around All Sides Of Door Opening
• Oil-Resistant Gasket
• Collar Studs Provided for Mounting Optional Panels
• Disconnect Cutout Provided On Flange
• Concealed Hinge
• Doors Are Interchangeable and Easily Removed By Pulling Hinge Pins
• 3-Point Latching Mechanism
• Latches Are Opened Or Closed With A Screwdriver (Optional Tamper-Resistant Inserts Are Available)
• Mounting Holes on Back of Enclosure
• Mounting Hardware, Sealing Washer and Hole Plug Included
• Ground Stud On Door and Body
• Black Zinc Die Cast Coinproof/ Padlocking Handle
• Disconnect Switch (or Circuit Breaker) and Operating Mechanism Are Not Furnished with This Enclosure

View related products - NEMA Electrical Enclosures

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

Application
DISCONNECT ENCLOSURE TYPE 1
The SCE-XEL outdoor electrical enclosure is designed to house most standard type disconnects. For outdoor application a drip shield is recommended.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12 & 13
UL Listed Type 4, & 12
CSA Type 4 & 12
IEC 60529 IP 66

SCE_XEL Product Diagram
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Electrical Enclosures - sub-panels sold separately
 SCE-20XEL2108LP 4 Weeks   ¥8,035.00    20"Hx 21.38"Wx 8"D
 SCE-20XEL2110LP 4 Weeks   ¥8,490.00    20"Hx 21.38"Wx 10"D
 SCE-20P20 2 Weeks   ¥1,000.00    Sub-panel for 20x21

 SCE-24XEL2108LP 4 Weeks   ¥8,600.00    24"Hx 21.38"Wx 8"D
 SCE-24P20 6 Weeks   ¥1,145.00    Sub-panel for 24x21

 SCE-24XEL2508LP 4 Weeks   ¥9,280.00    24"Hx 25.38"Wx 8"D
 SCE-24XEL2510LP 4 Weeks   ¥9,735.00    24"Hx 25.38"Wx 10"D
 SCE-24P24 2 Weeks   ¥1,255.00    Sub-panel for 24x25

 Electrical Enclosures below must ship by Truck Freight
 SCE-30XEL2508LP 4 Weeks   ¥10,300.00    30"Hx 25.38"Wx 8"D
 SCE-30XEL2510LP 4 Weeks   ¥10,750.00    30"Hx 25.38"Wx 10"D
 SCE-30P24 2 Weeks   ¥1,455.00    Sub-panel for 30x25

 SCE-36XEL2508LP 4 Weeks   ¥11,210.00    36"Hx 25.38"Wx 8"D
 SCE-36XEL2510LP 4 Weeks   ¥11,885.00    36"Hx 25.38"Wx 10"D
 SCE-36P24 6 Weeks   ¥1,835.00    Sub-panel for 36x25

 SCE-36XEL3108LP 4 Weeks   ¥12,675.00    36"Hx 31.38"Wx 8"D
 SCE-36XEL3110LP 4 Weeks   ¥13,255.00    36"Hx 31.38"Wx 10"D
 SCE-36XEL3112LP 4 Weeks   ¥13,180.00    36"Hx 31.38"Wx 12"D
 SCE-36XEL3116LP 4 Weeks   ¥15,410.00    36"Hx 31.38"Wx 16"D
 SCE-36P30 6 Weeks   ¥2,455.00    Sub-panel for 36x31

 SCE-42XEL3110LP 4 Weeks   ¥14,600.00    42"Hx 31.38"Wx 10"D
 SCE-42XEL3112LP 4 Weeks   ¥15,410.00    42"Hx 31.38"Wx 12"D
 SCE-42XEL3116LP 4 Weeks   ¥16,645.00    42"Hx 31.38"Wx 16"D
 SCE-42P30 6 Weeks   ¥2,905.00    Sub-panel for 42x31

 SCE-42XEL3710LP 4 Weeks   ¥15,850.00    42"Hx 37.38"Wx 10"D
 SCE-42XEL3712LP 4 Weeks   ¥17,130.00    42"Hx 37.38"Wx 12"D
 SCE-42XEL3716LP 4 Weeks   ¥18,715.00    42"Hx 37.38"Wx 16"D
 SCE-42P36 2 Weeks   ¥3,320.00    Sub-panel for 42x37

 SCE-48XEL3710LP 4 Weeks   ¥17,680.00    48"Hx 37.38"Wx 10"D
 SCE-48XEL3712LP 4 Weeks   ¥18,595.00    48"Hx 37.38"Wx 12"D
 SCE-48XEL3716LP 4 Weeks   ¥21,095.00    48"Hx 37.38"Wx 16"D
 SCE-48P36 4 Weeks   ¥3,500.00    Sub-panel for 48x37

 SCE-60XEL3710LP 4 Weeks   ¥20,610.00    60"Hx 37.38"Wx 10"D
 SCE-60XEL3712LP 4 Weeks   ¥21,655.00    60"Hx 37.38"Wx 12"D
 SCE-60XEL3712LP 4 Weeks   ¥21,655.00    60"Hx 37.38"Wx 12"D
 SCE-60XEL3716LP 2 Weeks   ¥23,570.00    60"Hx 37.38"Wx 16"D
 SCE-60P36 2 Weeks   ¥5,025.00    Sub-panel for 60x37

 Drip Shields Recommended for Outdoor Applications -SS screws included
 SCE-DS20N4 4 Weeks   ¥1,035.00    20" wide, powder coated drip shield
 SCE-DS24N4 4 Weeks   ¥1,150.00    24" wide, powder coated drip shield
 SCE-DS30N4 4 Weeks   ¥1,175.00    30" wide, powder coated drip shield
 SCE-DS36N4 4 Weeks   ¥1,195.00    36" wide, powder coated drip shield
 SCE-DS42N4 4 Weeks   ¥1,315.00    42" wide, powder coated drip shield
 Mounting Foot Kits for Wall Mounting, Polyamide Brackets with Zinc Plated or Stainless Steel Fasteners
 SCE-ELMFK4 6 Weeks   ¥765.00    4 mounts and fasteners per kit NEMA 4 & 12
 SCE-ELMFK6 2 Weeks   ¥645.00    6 mounts and fasteners per kit NEMA 4 & 12
 SCE-ELMFK4SS 4 Weeks   ¥535.00    4 mounts and fasteners per kit NEMA 4, 4X & 12
 SCE-ELMFK6SS 2 Weeks   ¥630.00    6 mounts and fasteners per kit NEMA 4, 4X & 12
† Price are shown in RMB.

 Note: * Indicates provision for 400 amp disconnect
