PVC Hook Up Wire, 300 V UL appliance wire
HW3000 Series

PVC insulated Hook Up Wire
HW3000 Series:PVC Hook Up Wire, 300 V UL appliance wire

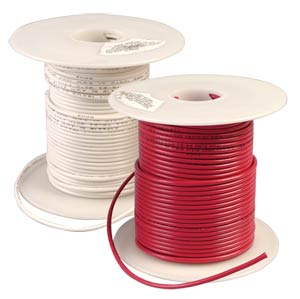

Click for larger image.

• PVC Insulated Appliance Hook Up Wire
• Operating Temperature:
- 40 to 105°C (-40 to 221°F)
- UL AWM 1569
- 40 to 90°C (-40 to 194°F)
- CSA TR-64
- 40 to 80°C (-40 to 176°F)
- UL AWM 1007
• 300V Voltage Rating
• Stranded or Solid Tinned Copper Conductor
• Color-Coded PVC Insulation
• UL AWM Styles 1007 and 1569
• CSA TR-64
• RoHS Compliant

View related products - Wire: Thermocouple, RTD, Thermistor and Hook-Up

Click to scroll below to order See Specs PDF Related Items View a printer friendly page


The HW3000 Series Hook-Up Wire is a PVC insulated 300 Volt rated single conductor appliance wire with UL AWM 1007, UL AWM 1569 and CSA TR-64 ratings, and is ROHS compliant. It is tinned to minimize oxidation and is available as solid or stranded in multiple colors. This PVC insulated hook up wire can be used within enclosed electronic equipment. Typical application include control panels, meters, computers, business machines and appliances where point to point wiring is required.



Omega has hundreds of different types of Hook-Up Wire in assorted gauges and colors, solid or stranded conductors, 100 and 1000 foot spools, many for immediate delivery.

PVC INSULATION UL 1007/1569, CSA TR-64
MODEL NO.AWG NO. WIRE TYPEINSULATION
THICKNESS mm (in)		NOMINAL
OD mm (in)
MODEL NO. AWG
NO. 		WIRE
TYPE 		INSULATION
THICKNESS mm (in) 		NOMINAL
OD mm (in)
HW3047-(*)-(**) 30 7/38 0.41 (0.016) 1.1 (0.043)
HW3048-(*)-(**) 28 7/36 0.41 (0.016) 1.2 (0.047)
HW3049-(*)-(**) 26 7/34 0.41 (0.016) 1.3 (0.051)
HW3050-(*)-(**) 24 7/32 0.41 (0.016) 1.4 (0.057)
HW3051-(*)-(**) 22 7/30 0.41 (0.016) 1.7 (0.065)
HW3053-(*)-(**) 20 10/30 0.41 (0.016) 1.8 (0.071)
HW3055-(*)-(**) 18 16/30 0.41 (0.016) 2.0 (0.080)
HW3057-(*)-(**) 16 26/30 0.41 (0.016) 2.4 (0.095)
HW3050/1-(*)-(**) 24 Solid 0.41 (0.016) 1.4 (0.057)
HW3051/1-(*)-(**) 22 Solid 0.41 (0.016) 1.7 (0.065)
HW3053/1-(*)-(**) 20 Solid 0.41 (0.016) 1.8 (0.071)
HW3055/1-(*)-(**) 18 Solid 0.41 (0.016) 2.0 (0.080)
HW3057/1-(*)-(**) 16 Solid 0.41 (0.016) 2.4 (0.095)
* Specify color by entering color code from the chart. ** Specify Length “-100” or “-1000”.

COLOR CHART
1 White 9 Gray
2 Black 10 Violet
3 Red 12 White/Red
4 Green 14 White/Yellow
5 Yellow 16 White/Brown
6 Blue 17 White/Orange
7 Brown 19 White/Violet
8 Orange 28 Green/Yellow
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 Examples of typical part numbers for wire is shown in this Ordering Box. Please use the Part Number Builder below to specify your actual wire part number
 HW3047-1-100    Consult sales   PVC 30 AWG White Hook Up Wire, stranded, 100'
 HW3048-2-100    Consult sales   PVC 28 AWG Black Hook Up Wire, stranded, 100'
 HW3050-4-100    Consult sales   PVC 24 AWG Green Hook Up Wire, stranded, 100'
 HW3051-9-100    Consult sales   PVC 22 AWG Gray Hook Up Wire, stranded, 100'
 HW3053-6-100    Consult sales   PVC 20 AWG Blue Hook Up Wire, stranded, 100'
 HW3050/1-3-100    Consult sales   PVC 24 AWG Red Hook Up Wire, solid, 100'
 MULTI-COLOR/Stripe Stranded - Green/Yellow and White/Color
 HW3057-28-100    Consult sales   PVC 16 AWG Green/Yellow Hook Up Wire, 100'
 HW3055-28-100    Consult sales   PVC 18 AWG Green/Yellow Hook Up Wire, 100'
 HW3055-12-100    Consult sales   PVC 18 AWG White/Red Hook Up Wire, 100'
 HW3055-14-100    Consult sales   PVC 18 AWG White/Yellow Hook Up Wire, 100'
 HW3055-14-1000    Consult sales   PVC 18 AWG White/Yellow Hook Up Wire, 1000'
 HW3055-16-100    Consult sales   PVC 18 AWG White/Yellow Hook Up Wire, 100'
 HW3055-17-100    Consult sales   PVC 18 AWG White/Orange Hook Up Wire, 100'
 HW3051-12-100    Consult sales   PVC 22 AWG White/Red Hook Up Wire, 100'
 HW3051-14-100    Consult sales   PVC 22 AWG White/Yellow Hook Up Wire, 100'
 HW3051-14-1000    Consult sales   PVC 22 AWG White/Yellow Hook Up Wire, 1000'
 HW3051-16-100    Consult sales   PVC 22 AWG White/Brown Hook Up Wire, 100'
 HW3051-17-100    Consult sales   PVC 22 AWG White/Orange Hook Up Wire, 100'
 HW3051-19-100    Consult sales   PVC 22 AWG White/Violet Hook Up Wire, 100'
 HW3050-12-100    Consult sales   PVC 24 AWG White/Red Hook Up Wire, 100'
 HW3050-14-100    Consult sales   PVC 24 AWG White/Yellow Hook Up Wire, 100'
 HW3050-16-100    Consult sales   PVC 24 AWG White/Brown Hook Up Wire, 100'
 HW3050-16-1000    Consult sales   PVC 24 AWG White/Brown Hook Up Wire, 1000'
 HW3050-17-100    Consult sales   PVC 24 AWG White/Orange Hook Up Wire, 100'
 HW3050-19-100    Consult sales   PVC 24 AWG White/Violet Hook Up Wire, 100'
† Price are shown in RMB.

 Ordering Example: (1) HW3055-3-100 30 m (100') spool of 18 stranded (16 x 30), PVC insulation hook up wire, red, ¥620.00
   Part Number Builder
(1) (2) (3)
H
H
W
W
3
3
0
0
-
-
-
-
Qty:
Option Descriptions
(1) Wire Size and Type
  Select
47 for 30 awg - 7/38 wire type
48 for 28 awg - 7/36 wire type
49 for 26 awg - 7/34 wire type
50 for 24 awg - 7/32 wire type
51 for 22 awg - 7/30 wire type
53 for 20 awg - 10/30 wire type
55 for 18 awg - 16/30 wire type
57 for 16 awg - 26/30 wire type
50/1 for 24 awg - Solid wire type
51/1 for 22 awg - Solid wire type
53/1 for 20 awg - Solid wire type
55/1 for 18 awg - Solid wire type
57/1 for 16 awg - Solid wire type
(2) Color
  Select
1 for White
2 for Black
3 for Red
4 for Green
5 for Yellow
6 for Blue
7 for Brown
8 for Orange
9 for Gray
10 for Violet
(3) Length
  Select
100 for 100 feet
1000 for 1000 feet
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
