Rotary Torque Sensor
Socket Extension Connection
TQ502A Series
1 year warranty

Socket Extension Rotary Torque Sensor
TQ502A Series:Rotary Torque SensorSocket Extension Connection

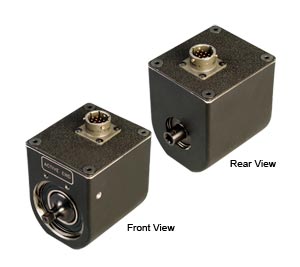

Click for larger image.

¥ 22,805.00  TQ502A-600
• Ideal for Use with Production Fastening Applications
• Bi-directional Measurement
• Ideal for Use with Drive/Socket Systems
• Used for Static or Dynamic Torque Measurement

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Rated Output: 1.5 to 3 mV/V nominal (calibration sheet provided)
Excitation: 20 Vdc maximum
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.1% FS
Zero Balance: ±1.0% FS
Operating Temp Range: -55 to 120°C (-65 to 250°F)
Compensated Temp Range: 21 to 75°C (70 to 167°F)
Thermal Effects:
    Zero: ±0.002% FS/°F
    Span: ±0.002% rdg/°F
Overload Capacity: 150% FS
Bridge Resistance: 1000 Ω
Maximum rpm: 5000
Construction:
    Sensor: Alloy steel
    Housing: Alloy aluminum
Electrical: Mating connector supplied

OPTIONS
 Add as suffix after part number
-MB, Mounting Foot
-EN1024, 1024 ppr Angle Encoder
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 STANDARD TORQUE SENSORS
 TQ502A-50 26 Weeks   ¥22,805.00    50 in-lb, 4 ft-lb, 6 NM, 1/4'' drive, 2.0 mV/V output
 TQ502A-125 26 Weeks   ¥22,805.00    125 in-lb, 10 ft-lb, 14 NM, 1/4'' drive, 2.0 mV/V output
 TQ502A-200 26 Weeks   ¥22,805.00    200 in-lb, 16 ft-lb, 23 NM, 3/8'' drive, 2.0 mV/V output
 TQ502A-600 26 Weeks   ¥22,805.00    600 in-lb, 50 ft-lb, 68 NM, 3/8'' drive, 3.0 mV/V output
 TQ502A-1.5K 26 Weeks   ¥22,805.00    1500 in-lb, 125 ft-lb, 170 NM, 1/2'' drive, 3.0 mV/V output
 TQ502A-2.4K 26 Weeks   ¥22,805.00    2400 in-lb, 200 ft-lb, 271 NM, 1/2'' drive, 3.0 mV/V output
 ACCESSORY
 TQ513-514-FOOTMOUNT In Stock   ¥1,185.00    User attachable foot mount
† Price are shown in RMB.

 Note: Comes complete with operator’s manual.
  Ordering Example: (1) TQ502A-600 socket extension rotary torque sensor with 3/8in square drive, 0 to 600 in-lb range, ¥22,805.00
   Part Number Builder
(1) (2) (3)
T
T
Q
Q
5
5
0
0
2
2
A
A
Qty:
Option Descriptions
(1) Capacity
  Select
-50 for 50 in-lb
-125 for 125in-lb
-200 for 200in-lb
-600 for 600in-lb
-1.5K for 1500in-lb
-2.4K for 2400in-lb
(2) Encoder Option
  Select
Nothing(leave field blank) for No Option
-EN1024 for Integral 1024 ppr optical encoder add $545
(3) Bracket Option
  Select
Nothing(leave field blank) for None
-MB for Foot mounting bracket add $85
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
