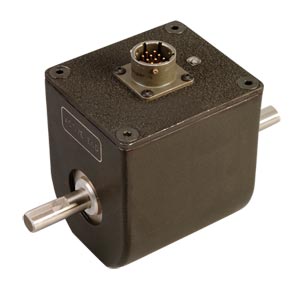

Digital Rotating Torque Sensor, Shaft to Shaft Configuration

TQ514

Click for larger image.

^¥ 43,445.00 TQ514-003

•	No Slip Rings for Quiet, High Speed Operation Up to 10,000 RPM
•	Amplifed ±5 Vdc Output for Easy Computer Interface
•	Optional Optical Encoder for Angle or Speed Measurement
View related products - Load Cells, Force Sensors and Torque Transducers

The TQ514 Series use a unique digital, non-contact wireless system to supply power to and transmit the signal from the rotating sensor. The digital torque signal is then converted and amplified to a ±5 Vdc analog signal. This system reduces noise and allows for higher operating speeds. An optional 512 ppr optical encoder is available to measure angle or speed.

SPECIFICATIONS
Excitation Voltage: 12 to 15 Vdc
Supply Current: 350 mA see (PST Series for power supply)
Output at Full Scale: Isolated ±5 Vdc
Sample Rate: 20,000 samples per second
Bandwidth: dc to 1 kHz
Linearity: 0.10% FS
Hysteresis: 0.10% FS
Zero Balance: 1.0% FS
Operating Temperature: -40 to 85°C (-40 to 185°F)
Compensated Temperature: 21 to 76°C (70 to 170°F)
Thermal Effects
   Zero: 0.0036% FS/°C
   Span: 0.0036% FS/°C
Material:
   <100 in-lb: SS shafts, aluminum sensor
   ≥100 in-lb: steel shaft and sensor
Overload Capacity: 150% FS
Maximum Shaft Speed: 10,000 RPM
Electrical Connection: 10-pin twist lockconnector (mating connector supplied)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TQ514-003	26 Weeks	¥43,445.00	50 in-oz, 3.125 in-lb, 0.35 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ514-006	26 Weeks	¥43,445.00	100 in-oz, 6.25 in-lb, 0.71 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ514-012	26 Weeks	¥43,445.00	200 in-oz, 12.5 in-lb, 1.41 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ514-030	26 Weeks	¥43,445.00	500 in-oz, 31.25 in-lb, 3.53 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ514-062	26 Weeks	¥43,445.00	1000 in-oz, 62.5 in-lb, 7.06 N-M, 3/8' shaft, 1/32' flat key	qty.

TQ514-100	26 Weeks	¥43,445.00	100 in-lb, 12 N-M, 0.749 shaft, 3/16' key	qty.

TQ514-200	26 Weeks	¥50,005.00	200 in-lb, 23 N-M, 0.749 shaft, 3/16' key	qty.

TQ514-500	26 Weeks	¥43,445.00	500 in-lb, 56 N-M, 0.999 shaft, 1/4' key	qty.

TQ514-1K	17 Weeks	¥43,445.00	1000 in-lb, 113 N-M, 0.999 shaft, 1/4' key	qty.

TQ514-2K	26 Weeks	¥43,445.00	2000 in-lb, 226 N-M, 0.999 shaft, 1/4' key	qty.


ACCESSORY

TQ513-514-FOOTMOUNT		¥1,235.00	Field installable mounting foot	qty.

† Price are shown in RMB.

Note: Each unit comes complete with operator's manual. The DP41-B meter will display the signal but a separate power supply is required. See Related links below for a link to the PSS-12 or PSS-15 power supplies.
Ordering Example: (1) TQ514-012 12 in-lb range rotating torque sensor, ¥43,445.00

Part Number Builder

	(1)	(2)	(3)
T T Q Q 5 5 1 1 4 4
Qty:

Option Descriptions

(1)

Capacity

Select
-003 for 3.125in-lb
-006 for 6.25in-lb
-012 for 12.5in-lb
-030 for 31.25in-lb
-062 for 62.5in-lb
-100 for 100in-lb
-200 for 200in-lb
-500 for 500in-lb
-1K for 1000in-lb
-2K for 2000in-lb

(2)

Encoder Option

Select
Nothing(leave field blank) for No Option
-EN512 for Integral 512 ppr optical encoder add $545

(3)

Bracket Option

Select
Nothing(leave field blank) for None
-MB for Foot mounting bracket add $85

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
