Reaction Torque Sensors, Flange to Shaft Mount, Metric, 0-0.175 N-m to 0-28 N-m |
TQM202 Series |
|
 |
|
|
 |

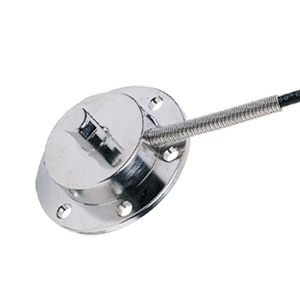

OMEGA’s TQM202 Series Torque Sensor is a small high accuracy flange or surface mount device designed for measuring reaction torque forces up to 28 N-m. The shaft attachment has three equally spaced flat surfaces to assure non-slip mounting without the use of a key. The all stainless steel construction provides long life in industrial environments, and its heavy duty construction assures long term high accuracy measurements.
The TQM202 is also available in standard/Imperial configurations, with ranges from 0-25 oz-in to 0-250 in-lb..
Please see the TQ202 for complete details, or contact our Pressure department
for more information.
SPECIFICATIONS Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.2% FSO
Zero Balance: ±2% FSO (Linearity, Hysteresis, and Repeatability Combined)
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: 0.008% FSO/°C
Span: 0.008% Rdg/°C
Safe Overload:150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 1.5 m (5 ft) 4-conductor shielded PVC cable with Strain Relief
Protection Class: IP65
|
|
|
 |
|
 |
† Price are shown in RMB.
Ordering Example: (1) TQM202-11 is a flange mount reaction torque sensor with 0 to 11 Newton meter range, ¥10,395.00
|
|
 |
|
 |
|  |
