Copper Sheath, .475 Inch Diameter Round Cross-Section - Discontinued

TRC and TRCC Style

Tubular Heaters

TRC and TRCC Style:Copper Sheath, .475 Inch Diameter Round Cross-Section - Discontinued

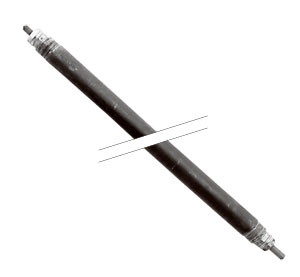

Click for larger image.

•	Copper Sheath
•	120, 208, 240 and 480 Volt
•	177°C (350°F) Max. Sheath Temp.
View related products - Tubular Heaters

The TRC and TRCC series have been discontinued. Please contact our Temperature Engineering department for a viable replacement.

1.2 cm (0.475") DIAMETER
ROUND CROSS-SECTION

Watts	Volts	W/In2	Dimensions cm (")		Copper Sheath Model No.	Weight (Lb)
Watts	Volts	W/In2	Sheath A	Heated B	Copper Sheath Model No.	Weight (Lb)
TRC — 50 W/In2
675	120	50	41 (16)	23 (9 1/8)	TRC-1645/120V	0.2 (0.5)
815	120	50	46 (18)	28 (11 1/8)	TRC-1845/120V	0.2 (0.5)
1000	120	50	51 (20)	33 (13 1/8)	TRC-2045/120V	0.2 (0.5)
1000	208	50	51 (20)	33 (13 1/8)	TRC-2045/208V	0.2 (0.5)
1000	240	50	51 (20)	33 (13 1/8)	TRC-2045/204V	0.2 (0.5)
1250	120	50	58 (23)	41 (16 1/8)	TRC-2345/120V	0.2 (0.5)
1250	208	50	58 (23)	41 (16 1/8)	TRC-2345/208V	0.2 (0.5)
1250	240	50	58 (23)	41 (16 1/8)	TRC-2345/240V	0.2 (0.5)
1300	120	50	64 (25)	46 (18 1/8)	TRC-2545/120V	0.2 (0.5)
1300	240	50	64 (25)	46 (18 1/8)	TRC-2545/240V	0.2 (0.5)
1450	120	50	69 (27)	51 (20 1/8)	TRC-2745/120V	0.2 (0.5)
1450	240	50	69 (27)	51 (20 1/8)	TRC-2745/240V	0.2 (0.5)
1500	120	50	71 (28)	54 (21 1/8)	TRC-2845/120V	0.5 (1)
1500	208	50	71 (28)	54 (21 1/8)	TRC-2845/208V	0.5 (1)
1500	240	50	71 (28)	54 (21 1/8)	TRC-2845/240V	0.5 (1)
1500	480	50	71 (28)	54 (21 1/8)	TRC-2845/480V	0.5 (1)
1650	120	50	76 (30)	59 (23 1/8)	TRC-3045/120V	0.5 (1)
1650	240	50	76 (30)	59 (23 1/8)	TRC-3045/240V	0.5 (1)
1800	120	50	81 (32)	64 (25 1/8)	TRC-3245/120V	0.5 (1)
1800	240	50	81 (32)	64 (25 1/8)	TRC-3245/240V	0.5 (1)
1950	120	50	86 (34)	69 (27 1/8)	TRC-3445/120V	0.5 (1)
1950	240	50	86 (34)	69 (27 1/8)	TRC-3445/240V	0.5 (1)
2100	120	50	91 (36)	74 (29 1/8)	TRC-3645/120V	0.5 (1)
2100	240	50	91 (36)	74 (29 1/8)	TRC-3645/240V	0.5 (1)
2200	120	50	97 (38)	79 (31 1/8)	TRC-3845/120V	0.5 (1)
2200	240	50	97 (38)	79 (31 1/8)	TRC-3845/240V	0.5 (1)
TRCC — 50 W/In2
2000	120	50	102 (40)	71 (28 1/8)	TRCC-4065/120V	0.6 (1.3)
2000	208	50	102 (40)	71 (28 1/8)	TRCC-4065/208V	0.6 (1.3)
2000	240	50	102 (40)	71 (28 1/8)	TRCC-4065/240V	0.6 (1.3)
2000	480	50	102 (40)	71 (28 1/8)	TRCC-4065/480V	0.6 (1.3)
2350	120	50	104 (41)	71 (29 1/8)	TRCC-4165/120V	0.6 (1.3)
2350	240	50	104 (41)	71 (29 1/8)	TRCC-4165/240V	0.6 (1.3)
2500	120	50	111 (43 9/16)	80 (31 11/16)	TRCC-4365/120V	0.6 (1.3)
2500	208	50	111 (43 9/16)	80 (31 11/16)	TRCC-4365/208V	0.6 (1.3)
2500	240	50	111 (43 9/16)	80 (31 11/16)	TRCC-4365/240V	0.6 (1.3)
2500	480	50	111 (43 9/16)	80 (31 11/16)	TRCC-4365/480V	0.6 (1.3)
2600	120	50	112 (44)	82 (32 1/8)	TRCC-4465/120V	0.6 (1.3)
2600	240	50	112 (44)	82 (32 1/8)	TRCC-4465/240V	0.6 (1.3)
2700	120	50	117 (46)	87 (34 1/8)	TRCC-4665/120V	0.6 (1.3)
2700	240	50	117 (46)	87 (34 1/8)	TRCC-4665/240V	0.6 (1.3)
2800	120	50	122 (48)	92 (36 1/8)	TRCC-4865/120V	0.6 (1.3)
2800	240	50	122 (48)	92 (36 1/8)	TRCC-4865/240V	0.6 (1.3)
2900	120	50	127 (50)	97 (38 1/8)	TRCC-5065/120V	0.8 (1.8)
2900	240	50	127 (50)	97 (38 1/8)	TRCC-5065/240V	0.8 (1.8)
3000	208	50	138 (54 1/4)	108 (42 3/8)	TRCC-5465/208V	0.8 (1.8)
3000	240	50	138 (54 1/4)	108 (42 3/8)	TRCC-5465/240V	0.8 (1.8)
3000	480	50	138 (54 1/4)	108 (42 3/8)	TRCC-5465/480V	0.8 (1.8)
3250	240	50	147 (58)	117 (46 1/8)	TRCC-5865/240V	0.8 (1.8)
3250	480	50	147 (58)	117 (46 1/8)	TRCC-5865/480V	0.8 (1.8)
3500	240	50	152 (60)	122 (48 1/8)	TRCC-6065/240V	0.8 (1.8)
3500	480	50	152 (60)	122 (48 1/8)	TRCC-6065/480V	0.8 (1.8)
3750	240	50	167 (66)	130 (51 1/8)	TRCC-6665/240V	0.8 (1.8)
3750	480	50	167 (66)	130 (51 1/8)	TRCC-6665/480V	0.8 (1.8)
4000	208	50	178 (70)	148 (58 1/8)	TRCC-7065/208V	0.8 (1.8)
4000	240	50	178 (70)	148 (58 1/8)	TRCC-7065/240V	0.8 (1.8)
4000	480	50	178 (70)	148 (58 1/8)	TRCC-7065/480V	0.8 (1.8)
4250	240	50	188 (74)	158 (62 1/8)	TRCC-7465/240V	1.0 (2.3)
4250	480	50	188 (74)	158 (62 1/8)	TRCC-7465/480V	1.0 (2.3)
4500	240	50	198 (78)	168 (66 1/8)	TRCC-7865/240V	1.0 (2.3)
4500	480	50	198 (78)	168 (66 1/8)	TRCC-7865/480V	1.0 (2.3)
4750	240	50	208 (82)	178 (70 1/8)	TRCC-8265/240V	1.0 (2.3)
4750	480	50	208 (82)	178 (70 1/8)	TRCC-8265/480V	1.0 (2.3)
5000	208	50	216 (85)	186 (73 1/8)	TRCC-8565/208V	1.0 (2.3)
5000	240	50	216 (85)	186 (73 1/8)	TRCC-8565/240V	1.0 (2.3)
5000	480	50	216 (85)	186 (73 1/8)	TRCC-8565/480V	1.0 (2.3)
5250	240	50	229 (90)	198 (78 1/8)	TRCC-9065/240V	1.0 (2.3)
5250	480	50	229 (90)	198 (78 1/8)	TRCC-9065/480V	1.0 (2.3)
5500	240	50	239 (94)	209 (82 1/8)	TRCC-9465/240V	1.0 (2.3)
5500	480	50	239 (94)	209 (82 1/8)	TRCC-9465/480V	1.0 (2.3)
5750	240	50	249 (98)	219 (86 1/8)	TRCC-9865/240V	1.5 (3.3)
5750	480	50	249 (98)	219 (86 1/8)	TRCC-9865/480V	1.5 (3.3)
6000	208	50	254 (100)	224 (88 1/8)	TRCC-10065/208V	1.5 (3.3)
6000	240	50	254 (100)	224 (88 1/8)	TRCC-10065/240V	1.5 (3.3)
6000	480	50	254 (100)	224 (88 1/8)	TRCC-10065/480V	1.5 (3.3)
6667	208	50	274 (108)	244 (96 1/8)	TRCC-10865/208V	1.5 (3.3)
6667	240	50	274 (108)	244 (96 1/8)	TRCC-10865/240V	1.5 (3.3)
6667	480	50	274 (108)	244 (96 1/8)	TRCC-10865/480V	1.5 (3.3)
8334	480	50	340 (134)	310 (122 1/8)	TRCC-13465/480V	2.0 (4.3)
10000	480	50	406 (160)	376 (148 1/8)	TRCC-16065/480V	2.0 (4.3)
2778	240	50	152 (60)	113 (44 3/8)	TRCC-6085/240V	0.8 (1.8)
4166	240	50	198 (78)	158 (62 3/8)	TRCC-7885/240V	1.0 (2)
5556	240	50	234 (92)	194 (76 3/8 )	TRCC-9285/240V	1.4 (3)

0.8 cm (0.315") DIAMETER
ROUND CROSS-SECTION

Watts	Volts	W/In2	Dimensions cm (")		Copper Sheath Model No.	Weight (Lb)
Watts	Volts	W/In2	Sheath A	Heated B	Copper Sheath Model No.	Weight (Lb)
500	120	53	41 (16)	23 (9 1/4)	TRC-1648/120V	0.2 (0.4)
700	120	53	51 (20)	34 (13 1/4)	TRC-2048/120V	0.2 (0.4)
700	240	53	51 (20)	34 (13 1/4)	TRC-2048/240V	0.2 (0.4)
1125	120	53	71 (28)	54 (21 1/4)	TRC-2848/120V	0.4 (0.8)
1125	240	53	71 (28)	54 (21 1/4)	TRC-2848/240V	0.4 (0.8)
1325	120	53	81 (32)	64 (25 1/4)	TRC-3248/120V	0.4 (0.8)
1325	240	53	81 (32)	64 (25 1/4)	TRC-3248/240V	0.4 (0.8)
1525	120	53	91 (36)	74 (29 1/4)	TRC-3648/120V	0.4 (0.8)
1525	240	53	91 (36)	74 (29 1/4)	TRC-3648/240V	0.4 (0.8)
1725	120	53	102 (40)	84 (33 1/4)	TRC-4048/120V	0.5 (1)
1725	240	53	102 (40)	84 (33 1/4)	TRC-4048/240V	0.5 (1)
2050	120	53	117 (46)	100 (39 1/4)	TRC-4648/120V	0.5 (1)
2050	240	53	117 (46)	100 (39 1/4)	TRC-4648/240V	0.5 (1)
2050	480	53	117 (46)	100 (39 1/4)	TRC-4648/480V	0.5 (1)
2350	120	53	132 (52)	115 (45 1/4)	TRC-5248/120V	0.6 (1.3)
2350	240	53	132 (52)	115 (45 1/4)	TRC-5248/240V	0.6 (1.3)
2350	480	53	132 (52)	115 (45 1/4)	TRC-5248/480V	0.6 (1.3)
2675	120	53	147 (58)	130 (51 1/4)	TRC-5848/120V	0.6 (1.3)
2675	240	53	147 (58)	130 (51 1/4)	TRC-5848/240V	0.6 (1.3)
2675	480	53	147 (58)	130 (51 1/4)	TRC-5848/480V	0.6 (1.3)
2975	120	53	163 (64)	145 (57 1/4)	TRC-6448/120V	0.6 (1.3)
2975	240	53	163 (64)	145 (57 1/4)	TRC-6448/240V	0.6 (1.3)
2975	480	53	163 (64)	145 (57 1/4)	TRC-6448/480V	0.6 (1.3)
3300	240	53	178 (70)	161 (63 1/4)	TRC-7048/240V	0.6 (1.3)
3300	480	53	178 (70)	161 (63 1/4)	TRC-7048/480V	0.6 (1.3)
3600	240	53	193 (76)	176 (69 1/4)	TRC-7648/240V	0.6 (1.3)
3600	480	53	193 (76)	176 (69 1/4)	TRC-7648/480V	0.6 (1.3)
3900	240	53	208 (82)	191 (75 1/4)	TRC-8248/240V	0.8 (1.8)
3900	480	53	208 (82)	191 (75 1/4)	TRC-8248/480V	0.8 (1.8)
4225	240	53	224 (88)	206 (81 1/4)	TRC-8848/240V	0.8 (1.8)
4225	480	53	224 (88)	206 (81 1/4)	TRC-8848/480V	0.8 (1.8)
4525	240	53	239 (94)	222 (87 1/4)	TRC-9448/240V	0.8 (1.8)
4525	480	53	239 (94)	222 (87 1/4)	TRC-9448/480V	0.8 (1.8)
4850	240	53	254 (100)	232 (93 1/4)	TRC-10048/240V	1.1 (2.5)
4850	480	53	254 (100)	232 (93 1/4)	TRC-10048/480V	1.1 (2.5)
5150	240	53	269 (106)	252 (99 1/4)	TRC-10648/240V	1.1 (2.5)
5150	480	53	269 (106)	252 (99 1/4)	TRC-10648/480V	1.1 (2.5)
5475	240	53	284 (112)	267 (105 1/4)	TRC-11248/240V	1.1 (2.5)
5475	480	53	284 (112)	267 (105 1/4)	TRC-11248/480V	1.1 (2.5)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Example part numbers are shown below. For additional configurations see the Part Number Builder below this table.

TRC-2048/120V		Consult sales	Heater, 700 W, 120 V	qty.

TRC-3648/120V		Consult sales	Heater, 1525 W, 120 V	qty.

TRC-1648/120V		Consult sales	Heater,500W,120V	qty.

TRC-1648/120V/EE26		Consult sales	Heater,500W,120V	qty.

TRC-2048/120V/FULLY ANNEALED		Consult sales	TUBULAR HTR. FULLY ANNEALED	qty.

† Price are shown in RMB.

Part Number Builder

(1)		(2)	(3)		(4)
	- -			/ /
Qty:

Option Descriptions

(1)

Model

Select
TRC for TRC Style
TRCC for TRCC Style

(2)

Sheath A

Select
16 for 16 in.
18 for 18 in.
20 for 20 in.
23 for 23 in.
25 for 25 in.
27 for 27 in.
28 for 28 in.
30 for 30 in.
32 for 32 in.
34 for 34 in.
36 for 36 in.
38 for 38 in.
40 for 40 in.
41 for 41 in.
43 for 43 in.
44 for 44 in.
46 for 46 in.
48 for 48 in.
50 for 50 in.
52 for 52 in.
54 for 54 in.
58 for 58 in.
60 for 60 in.
64 for 64 in.
66 for 66 in.
70 for 70 in.
74 for 74 in.
76 for 76 in.
78 for 78 in.
82 for 82 in.
85 for 85 in.
88 for 88 in.
90 for 90 in.
92 for 92 in.
94 for 94 in.
98 for 98 in.
100 for 100 in.
106 for 106 in.
108 for 108 in.
112 for 112 in.
134 for 134 in.
160 for 160 in.

(3)

Code in Part Number

Select
48 for code 48
65 for code 65

(4)

Voltage

Select
120V for 120 V
240V for 240 V
480V for 480 V

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
