Surface and Insertion Probes |
| 88000 Series Probes |
|
 |
|
|
|
|
|
¥
1,170.00
88308K
|
| • |
Straight and Right Angle Version
|
| • |
E and K Thermocouple Types
|
| • |
Small Surface Area Probes
|
| • |
Spring Loaded Compact Tip Styles
|
| • |
Pointed Tip Design Ideal for Measuring Soft and Semi-frozen Materials and Molten Plastics and Rubbers
|
| • |
Meet the Standard Limits of Error
|
| • |
TAS Adapter Sold Separately!!
|
View related products - Thermocouples
|
| |
|
|
|
 |

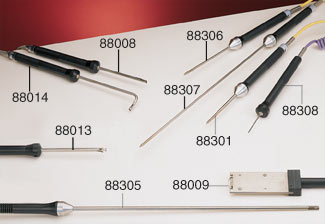

Model 88008(*)
Micro-sensor probe, designed for precise
measurements of small surface areas, such as
transistors and integrated circuits. Small contact
surface area of 0.040 x 0.118" for fast response.
400°C (750°F) max. surface temperature.
Note: element not replaceable.
Model 88009(*)
Thin-body type probe designed to measure the surface of the bottom
of narrow gaps or slits, like that of a plate heater. 260°C (500°F) max.
service temperature.
Note: element not replaceable.
Model 88013(*)
Fast-response spring-loaded compact tip probe, for measurements to
815°C (1500°F). Surface pad made from 400 series stainless steel.
0.187" dia. surface area. Not designed for long-term exposure to high
temperatures.
Note: element not replaceable.
Model 88014(*)
Right angle version of the 88013. Fast-response spring-loaded
compact tip probe, for measurements to 815°C (1500°F). Surface
pad made from 400 series stainless steel. 0.187" dia. surface area.
Not designed for long-term exposure to high temperatures.
Note: element not replaceable.
Model 88104(*)
Right angle version of the 88008, with unique lateral spring design and
small contact surface area. 400°C (750°F) max. surface temperature.
Note: element not replaceable.
Model 88301(*)
Suitable for measuring internal temperatures of semi-solid materials,
such as rubbers, plastics, clay, as well as for liquid measurements.
Tapered stainless steel sheath with 480°C (900°F) max service
temperature.
Note: element not replaceable.
Model 88305(*)
Measure temperatures in moving air, with drilled sheath
protect the thermocouple, while exposing it to air flow.
0.5 to 20 second response time (depending on air velocity).
480°C (900°F) max service temperature.
Note: element not replaceable.
Model 88306(*)
Pointed tip design, ideal for measuring soft and semi-frozen
material, molten plastics and rubbers. 4" sheath, with
6 to 20 s response time. 500°C (930°F) max
service temperature.
Note: element not replaceable.
Model 88307(*)
Longer version of the 88306, with
12" sheath.
Note: element not
replaceable.
Model 88308(*)
Specially designed fine hypodermic needle probe,
least likely to disturb the surrounding insertion area.
6 to 20 second response time, 205°C (400°F) max.
service temperature.
Note: element not replaceable.
*Specify Calibration:
K: CHROMEGA™-ALOMEGA™
E: CHROMEGA-Constantan
All 88000 series probes are supplied with retractable cable
[expands to 1.5 m (5')] and male subminiature connector.
|
|
|
|
|
|
† Price are shown in RMB.
Note: All 88000 series probes are supplied with retractable cable (expands to 5') and male subminiature connector. All probes meet the standard limits of error.
Ordering Example: (1) 88308K K type, Hypodermic needle probe, 1 1/2 inch sheath, 205 deg C (400 deg F), ¥1,170.00
|
|
|
|
|
| |
|
