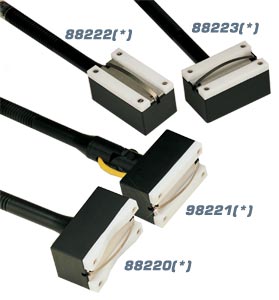

Unique Block Surface Thermocouple Probes

88000 Series Block Surface Probes

Click for larger image.

^¥ 2,220.00 98221K

•	Available in K and E Thermocouple Calibrations
•	Probes Designed with Braces to Minimize Flexing Due to a Moving Surface
•	Maximum Surface Temperatures up to 250°C (480°F)
•	Straight, Right-Angle and Swival Head Probe Constructions.
•	Surface Velocity of Moving Surfaces up to but not Exceeding 90 meters (300 ft.) per minute (Select Models).
•	Meet the Standard Limits of Error
•	TAS Adapter Sold Separately!
View related products - Thermocouples

The block style surface probes have a unique construction that makes them ideal for measuring moving, rotating or stationary surfaces. This family of 880000 probes are extensively used in the following industries: paper, fiber, printing, iron and steel. Models are availabel for flat and curved moving surfaces.

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
88220K	16 Weeks	¥2,115.00	K Type. Curved Sensing head for 4-6" rollers, perpendicular Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

98220K	16 Weeks	¥2,565.00	K Type. Curved Sensing head for 4-6" rollers, perpendicular Configuration with swivel head. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

88221K	16 Weeks	¥1,975.00	Type K Flat Sensing head, perpendicular Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

98221K	16 Weeks	¥2,220.00	Type K Flat Swivel Sensing head, perpendicular Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

88222K	16 Weeks	¥1,975.00	K Type. Flat Sensing head in Length Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

88222E	16 Weeks	¥2,300.00	EType. Flat Sensing head in Length Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

88223K	16 Weeks	¥1,975.00	K Type. Flat Sensing head in Width Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

88223E	16 Weeks	¥1,975.00	E Type. Flat Sensing head in Width Configuration. Right-angle probe ideal for measuring moving or rotating surfaces. 250°C (480°F).	qty.

88224K	16 Weeks	¥1,960.00	K Type. Right-angle probe for rotating rollers from 100 to 152 mm (4 to 6") in diameter. Max. surface temperature of 250°C (480°F).	qty.

88224E	16 Weeks	¥1,935.00	E Type. Right-angle probe for rotating rollers from 100 to 152 mm (4 to 6") in diameter. Max. surface temperature of 250°C (480°F).	qty.

88226K	16 Weeks	¥2,115.00	K Type. Curved Sensing head for 6-12" rollers, Right-angle probe for rotating rollers of 152 to 300 mm (6 to 12") in diameter. 61 meters (200') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

98226K	16 Weeks	¥2,495.00	K Type. Curved Sensing head for 6-12" rollers with swivel head. Right-angle probe for rotating rollers of 152 to 300 mm (6 to 12") in diameter. 61 meters (200') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

88225K		¥2,230.00	K Type. Right-angle probe for rotating rollers of 300 to 584 mm (12 to 23") in diameter. 30 meters (100') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

98225K	16 Weeks	¥2,425.00	K Type. SWIVEL HEAD. Right-angle probe for rotating rollers of 300 to 584 mm (12 to 23") in diameter. 30 meters (100') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

88225E	16 Weeks	¥2,175.00	E Type. Right-angle probe for rotating rollers of 300 to 584 mm (12 to 23") in diameter. 30 meters (100') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

98225E	16 Weeks	¥2,495.00	E Type. SWIVEL HEAD. Right-angle probe for rotating rollers of 300 to 584 mm (12 to 23") in diameter. 30 meters (100') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

88226E	16 Weeks	¥2,630.00	E Type. Curved Sensing head for 6-12" rollers, Right-angle probe for rotating rollers of 152 to 300 mm (6 to 12") in diameter. 61 meters (200') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

98226E	16 Weeks	¥2,545.00	E Type. Curved Sensing head for 6-12" rollers with swivel head. Right-angle probe for rotating rollers of 152 to 300 mm (6 to 12") in diameter. 61 meters (200') per minute max. velocity, with 250°C (480°F) max. surface temperature.	qty.

88227K	16 Weeks	¥1,870.00	K Type. For surface measurements with end braces to minimize flexing due to a moving surface; this also prolongs probe life. PFA sliders ensure smooth operation on both metal and plastic surfaces. 61 meters (200') per minute max. velocity, 250°C (480°F) max. surface temperature.	qty.

88227E	16 Weeks	¥1,925.00	E Type. For surface measurements with end braces to minimize flexing due to a moving surface; this also prolongs probe life. PFA sliders ensure smooth operation on both metal and plastic surfaces. 61 meters (200') per minute max. velocity, 250°C (480°F) max. surface temperature.	qty.

98227K	16 Weeks	¥2,345.00	K Type. SWIVEL HEAD. For surface measurements with end braces to minimize flexing due to a moving surface; this also prolongs probe life. PFA sliders ensure smooth operation on both metal and plastic surfaces. 61 meters (200') per minute max. velocity, 250°C (480°F) max. surface temperature.	qty.

98227E	16 Weeks	¥2,335.00	E Type. SWIVEL HEAD. For surface measurements with end braces to minimize flexing due to a moving surface; this also prolongs probe life. PFA sliders ensure smooth operation on both metal and plastic surfaces. 61 meters (200') per minute max. velocity, 250°C (480°F) max. surface temperature.	qty.


Replacement Elements

88220K-RE	16 Weeks	¥394.00	Replacement element or 88220K probe	qty.

88221K-RE	16 Weeks	¥373.00	Replacement element or 88221K probe	qty.

88225K-RE	16 Weeks	¥386.00	Replacement element or 88221K probe	qty.


TAS Adapter Sold Separately!

TAS-K-3	5 Weeks	¥108.00	TAS Adapter	qty.

TAS-E-3	2 Weeks	¥107.00	TAS Adapter	qty.

† Price are shown in RMB.

Note: Replaceable Element supplied free, for additional elements order P/N 88221K-RE
Note: For a male straight M8 plug add "M8-S-M" to the model number and add $17 to the price, for a male straight M12 plug add "M12-S-M" to the model number and add $17 to the price. For a male right-angled M8 plug add "M8-R-M" to the model number and add $17 to the price, for a male right-angled M12 plug add "M12-S-M" to the model number and add $17 to the price. All probes meet the standard limits of error.
Ordering Example: (1) 88222K Type K CHOMEGA™ ALOMEGA Right-angle surface probe, rated to 250°C 480°F, ¥1,975.00
