Counting Scales and Weigh Scales
CS7000, CS7600
4 year warranty

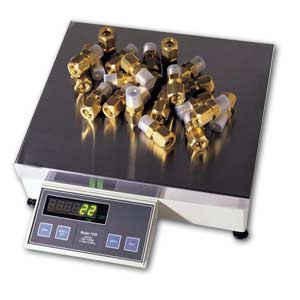

CS7000, CS7600:Counting Scales and Weigh Scales
Click for larger image.

¥ 11,610.00  CS7500-20
• Bright 6-Digit Display
• High Internal Resolution: Up to 1:16 Million
• Bidirectional RS232 Communications
• Parts Counting or Weighing
• Quality-Control Stations
• General Purpose Benchtop Weighing Applications
• Capacities 2.2 to 220 lb

View related products - Load Cells, Force Sensors and Torque Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

Designed for speed and high accuracy, the CS7500 is key to any inventory control requirement. Features include fast, one-button counting; auto-sample update for improved accuracy; 1:16 million internal resolution; 2 user-selectable units of measure; and heavy-duty cast internal construction.

The CS7600 has a long list of powerful functions, including one-button counting; auto-sample update for improved accuracy; %-accuracy or %-error display; full numeric keypad; 2 weigh units(lb/kg or user selectable); and input and display of piece weight, tare weight plus 6-digit ID number, sample quantity, and gross/net weights.

SPECIFICATIONS
CS7500 and CS7600 Count Features:
    - Auto-sample update
    - 4 preset sample sizes (or can be programmed for any sample size)
CS7600
Count Features:
    - Display of percent of error or accuracy when sampling
    - Display/key entry of piece weight (or piece weight per thousand)
    - Sample and sample-to-bulk counting with second optional platform
    - Pushbutton or keyboard tare entry
    - Display of gross/net/tare weights
    - 2 standard metrological weight units
Display Module:
    - 14.2 mm (0.56"), 6-digit, 7-segment, bright green LED display
    - Sealed, rugged, touch-panel display
    - Major functions have their own keys
Data Communications: Bidirectional RS232
Internal Resolution:
    LCS7500: 1:16 million
    LCS7600: 1:1 million
Power: 120 Vac
Dimensions: 356 L x 394 W x 133 mm H (14 x 15.5 x 5.25")
Weight: 6.9 kg (15.3 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 SS Top Cover Counting Scales
 CS7500-2 2 Weeks   ¥11,610.00    2.205 lb capacity with 0.0002 lb resolution
 CS7500-5 7 Weeks   ¥11,610.00    5 lb capacity with 0.0005 lb resolution
 CS7500-10 7 Weeks   ¥11,610.00    10 lb capacity with 0.001 lb resolution
 CS7500-20 7 Weeks   ¥11,610.00    20 lb capacity with 0.002 lb resolution
 CS7500-50 7 Weeks   ¥11,610.00    50 lb capacity with 0.005 lb resolution
 CS7500-100 7 Weeks   ¥11,610.00    100 lb capacity with 0.01 lb resolution
 CS7500-150 7 Weeks   ¥11,610.00    150 lb capacity with 0.02 lb resolution
 CS7500-220 7 Weeks   ¥11,610.00    220.5 lb capacity with 0.02 lb resolution
 SS Top Cover Counting Scales with Enhanced Keyboard Functions
 CS7600-2 7 Weeks   ¥12,695.00    2.205 lb capacity with 0.0002 lb resolution
 CS7600-5 7 Weeks   ¥12,870.00    5 lb capacity with 0.0005 lb resolution
 CS7600-10 7 Weeks   ¥12,870.00    10 lb capacity with 0.001 lb resolution
 CS7600-20 7 Weeks   ¥12,870.00    20 lb capacity with 0.002 lb resolution
 CS7600-50 7 Weeks   ¥12,870.00    50 lb capacity with 0.005 lb resolution
 CS7600-100 7 Weeks   ¥12,870.00    100 lb capacity with 0.01 lb resolution
 CS7600-150 7 Weeks   ¥12,870.00    150 lb capacity with 0.02 lb resolution
 CS7600-220 7 Weeks   ¥12,695.00    220.5 lb capacity with 0.02 lb resolution
† Price are shown in RMB.

 Note: Comes with complete operator’s manual.
  Ordering Example: (1) CS7600-10 counting scale, 100 lb capacity with 0.01 lb resolution, ¥12,870.00
