DIGITAL PRESSURE GAUGES
METRIC FITTINGS AND RANGES DPGM409 SERIES |
| DPGM409 Series METRIC PRESSURE GAUGES |
|
 |
|
|
DIGITAL PRESSURE GAUGES WITH METRIC FITTINGS AND RANGES
 |
| Click for larger image. |
|
|
¥
9,345.00
DPGM409-070BG
|
| • |
5-PT NIST Traceable Calibration Included
|
| • |
High 0.08% Accuracy
|
| • |
Easy to Read 25 mm (1") Backlit LCD Display
|
| • |
Hi and Lo Alarms Standard
|
| • |
MIN/MAX/AVG Reading
|
| • |
Analog Output: User selectable 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA (external 24 Vdc power supply required for all analog output types)
|
| • |
Free Downloadable Software with USB Connection Included
|
| • |
Wireless Transmitter Option For Remote Locations
|
| • |
Tested to Industrial CE Standards
|
| • |
Battery Powered with Long Battery Life
|
| • |
G 1/4 B Pressure Connection
|
View related products - Pressure Gauges
|
| |
|
|
|
 |

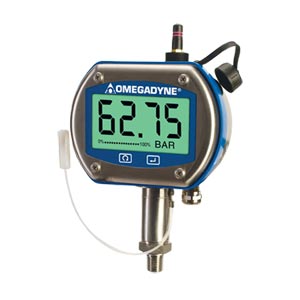

Omega’s DPGM409 digital
pressure gauge incorporates a
rugged 316 SS enclosure designed
for washdown and marine
applications with a precision 0.08%
accuracy pressure transducer with
316L SS wetted parts and body.
The result is an extreamly durable
digital pressure gage designed to
survive harsh industrial
environments. The large 25 mm (1")
display is easy to read at a distance
up to 11 m (36'). Models are
available in Gauge, Sealed Gauge,
Compound Gauge, Absolute,
Vacuum and Barometric pressure
ranges. Standard features include a
highly stable silicon sensor,
selectable MIN/MAX and AVG
readings, Hi and LO alarms and an
externally powered user selectable
analog output. An optional wireless
transmitter feature with software
allows the signal to be transmitted
to a remote location such as a PC
for charting and data logging. Power
is from an internal long life battery
(included) or an eternally supplied
dc voltage source. Free downloadable software
allows the user connect to a pc
via a standard USB connection
(cable included) and select a variety
of user configurable features
including update rate, dampening,
units, backlight and auto off.
NOTE: Models with wireless option are approved for use
in the U.S., Canada and Europe only.
SPECIFICATIONS
CE Compliant: Meets EN61326-1: 2006
for industrial locations with analog
output cables less than 30 m (98')
Accuracy (Combined Linearity,
Hysteresis and Repeatability):
±0.08% BSL (0.15% max in 10V/m RF
field) (compound gauge calibrated in
positive direction only)
Temperature:
Storage: -40 to 82°C (-40 to 180°F)
Compensated: -18 to 66°C (0 to 150°F)
Thermal Effects (Over Compensated Range):
Zero Shift:
Ranges >350 mb: ±0.3% span
Ranges ≤350 mb: ±0.5% span
Span Shift:
Ranges >350 mb ±0.3% span
Ranges ≤350 mb psi: ±0.5% span
Minimum Resistance Between Transducer Body and Any Wire:
100MΩ @ 50 Vdc
Pressure Cycles: 1 million minimum
Long Term Stability (1-yr): ±0.1% FS typical
Analog Output: User selectable
0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
(external 24 Vdc power supply required
for all analog output types)
Note: Compound gauge ranges have a
unidirectional analog output equal to their full
span; i.e. -350 to 350 mb = 0 to 10 Vdc.
Analog Output
Cable: 2.7 m (8.9')
Accuracy: 0.08% typical
Overpressure: Gauge/sealed gauge
25 mb: 10 times span
70 mb: 6 times span
170 mb to 100 bar: 4 times span
175 to 350 bar: 500 bar max
Absolute/Barometric Ranges:
350 mb to 100 bar: 4 times span
175 to 350 bar: To 500 bar abs
Containment Pressure: Gauge and
Sealed Gauge pressure
25 to 350 mbar: To 70 bar
1 to 70 bar: To 200 bar
100 to 350 bar: To 700 bar
Absolute/Barometric Pressure:
350 mb to 70 bar: to 400 bar
Display: 4-digit LCD with user
selectable backlighting, (9999 count)
25 mm (1") character height
Computer Interface: USB connection
for set-up, cable included
Update Rate: User selectable from
0.25 to 10 sec. (preset to 1/sec)
Power: One 3.6V lithium 8.4 Ah
capacity (C cell) Included (two with
wireless option) (replacement battery
BATT-C-3.6V)
Battery Life (Typical): Up to 9 months
Enclosure:
Material: 316 Stainless Steel and ABS center gasket
Finish: Brushed 316 stainless steel
Environmental Rating:
Weatherproof, NEMA 4X (IP65)
Sensor Wetted Parts: 316L Stainless Steel
Pressure Connection: G¼ male
Dimensions
Display: 115 L x 89 W x 74 mm D (4.5 x 3.5 x 2.9")
Sensor: 72 to 89 mm L (2.8 x 3.5") below display
Weight: 900 g (32 oz) Typical
depending upon configuration
Front Panel Functions
Backlight: Manually turns backlight on/off
Min/Max: Recalls min/max values
Zero/Clear: Zeros display or clears min/max
Software Settings (via USB)
Update Rate: 4 options, 10, 5, 2, 1 times per second
Units: psi, inHg, inH2O, bar, mbar, hPa
units; must be specified at time of order
Lock: Allows the lock-out of
front panel functions
Alarms: User selectable “High” and
“Low” alarm limits (open collector)
Analog Output: User Selectable
0 to 5 Vdc, 0 to 10 Vdc, or 4 to 20 mA
(requires external 24 Vdc power)
Backlight: On/off, 10 sec, 30 sec, 1 min, 5 min
Wireless Transmitter (Optional):
Channel number, transmission rate,
alarms, sensor offset, chart recording,
data logging
Overrange Indication: “_ _ _ _”
Wireless Option Specifications
Transmit Sample Rate: User
programmable from 1 sample/2 min
to 1 sample/2 sec
Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz
RF Output: 10 dBm (10 mW)
Range of RF Link:
Outdoors (Line of Sight): Up to 120 m (400')
Indoors/Urban: Up to 40 m (130')
Included Software: Requires Windows® 7 (32 bit); XP or Vista
Internal Battery: Two 3.6V lithium
8.4 Ah capacity (C-cell) included,
(replacement battery BATT-C-3.6V)
Data Transmission to Host: Pressure
reading, ambient temperature reading,
RF transmit strength and battery level
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual, free downloadable software, USB cable, 2.7 m (8.9') analog output cable with ferrite core, and 5-point NIST traceable calibration.
