High Performance Modular Expandable PLC - Discontinued
EZPLC Series
1 year warranty

High Performance Modular Expandable PLC

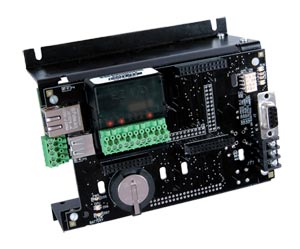

EZPLC Series:High Performance Modular Expandable PLC - Discontinued
Click for larger image.

• 3ms Scantime
• 64KB Memory, 8192 Registers
• Expandable to 2048 I/O
• 8 Autotuned PID Loops
• 32 Bit Floating Point Math
• Drag-n-Drop Ladder Programming
• Snap-in I/O Modules (purchase separately)
• Built-in RS232 & RS422/485 Ports
• 4 In 4 Out Wide Variety of Mix-n-Match Ultra Compact I/O Modules
• Built-in Modbus RTU Driver
• Built-in Realtime clock/calendar
• Small Compact Foot-print
• Universal Remote I/O Modules (Modbus/RS485)
--- Digital, Analog, Thermocouple, RTD
--- DIN Rail mountable
• Sample application programs available by request

View related products - Automation Controllers and HMI

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The EZPLC series has been discontinued. Please see the ELC-PLC Series as a possible alternative or contact our Automation Engineering department.

EZPLC is the most innovative PLC in its class. It is packed with power only found in high-end PLCs that cost 3 to 5 times more. It also sports the most flexible I/O in the industry, EZI/O modules (sold separately). This power-packed micro modular PLC is a good fit for small machines that need high-end PLC performance like fast scan times or a fair amount of I/O or lots of memory, or simply low cost.

Snap-in I/O Modules
EZI/O modules are designed with one thing in mind - modularity! Each and every EZI/O module can be utilized with EZPLC, EZ Series TouchPLC and EZ Series TextPLC for a truly modular I/O.
  • I/O Status LED Indicators
    LED indicator lights on every channel to help troubleshoot and debug field wiring.
  • Wiring Duct for Routing Field Wires
    Every EZI/O module has a wiring duct for routing field wiring in neat bundles.
  • Removable Terminal Block
    EZI/O modules come with male headers to accommodate 11-point removable Phoenix terminal blocks (UL rated for 300V 10 amp 14 AWG) for ease of wiring.
  • Compact
    Extremely small size, 2 x 2 x 1 inch.
  • Wide Variety of Digital and Analog
    AC and DC, analog I/O, thermocouple and RTD modules are available. Combination modules are also available to provide maximum flexibility.

General-Purpose Signal Conditioners for any PLC

***New!*** Universal Remote I/O Modules: Digital, Analog, Thermocouple, RTD

NOTE:   Programming software (EZPLC-EDIT) and programming cable (EZP-PGMCBL) required.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 EZ PLC base models
 EZPLCJ-A-32    Consult sales   EZPLC base for 32 I/O (max), 110 VAC Power
 EZPLC-A-32    Consult sales   EZPLC base for 32 I/O, 110 VAC Power
 EZPLC-A-48    Consult sales   EZPLC base for 48 I/O, 110 VAC Power
 EZPLC-A-64    Consult sales   EZPLC base for 64 I/O, 110 VAC Power
 EZPLC-A-96    Consult sales   EZPLC base for 96 I/O, 110 VAC Power
 EZPLC-A-32E    Consult sales   EZPLC base w. Ethernet for 32 I/O, 110 VAC Power
 EZPLC-A-48E    Consult sales   EZPLC base w. Ethernet for 48 I/O, 110 VAC Power
 EZPLC-A-64E    Consult sales   EZPLC base w. Ethernet for 64 I/O, 110 VAC Power
 EZPLC-A-96E    Consult sales   EZPLC base w. Ethernet for 96 I/O, 110 VAC Power
 EZPLC-D-32    Consult sales   EZPLC base for 32 I/O, 24 VDC Power
 EZPLC-D-48    Consult sales   EZPLC base for 48 I/O, 24 VDC Power
 EZPLC-D-64    Consult sales   EZPLC base for 64 I/O, 24 VDC Power
 EZPLC-D-96    Consult sales   EZPLC base for 96 I/O, 24 VDC Power
 EZPLC-D-32E    Consult sales   EZPLC base w. Ethernet for 32 I/O, 24 VDC Power
 EZPLC-D-48E    Consult sales   EZPLC base w. Ethernet for 48 I/O, 24 VDC Power
 EZPLC-D-96E    Consult sales   EZPLC base w. Ethernet for 96 I/O, 24 VDC Power
 Software
 EZPLC-EDIT    Consult sales   EZPLC Programming Software
 Accessories
 EZP-PGMCBL    Consult sales   RS232 Programming cable
 OM-CONV-USB In Stock   ¥206.00    USB to RS232 Interface Converter; USB-A to DB9-male
 OM-PL-USBS    Consult sales   USB to RS232 converter; works with Windows Vista and Windows 7.
 EZPLC-DEVICENET    Consult sales   DeviceNet Interface Card for EZPLC
 EZPLC-PROFIBUS    Consult sales   Profibus Interface Card for EZPLC
 ELC-PS01    Consult sales   DIN rail power supply, 24 Vdc, 1 A
 ELC-PS02    Consult sales   DIN rail power supply, 24 Vdc, 2 A
 DR-75-24V 28 Weeks   ¥1,560.00    DIN rail power supply, 24 Vdc,   3.125 A
 DR-120-24V    Consult sales   DIN rail power supply, 24 Vdc, 5 A
 DR-240-24V 5 Weeks   ¥2,990.00    DIN rail power supply, 24 Vdc, 10 A
 EZ I/O Modules
 EZIO-4ACI4ACO    Consult sales   I/O Module, 4 x 110Vac IN, 4 x 110Vac OUT
 EZIO-4ACI4DCOP    Consult sales   I/O Module, 4 x 110Vac IN, 4 x 24Vdc OUT (source)
 EZIO-4ACI4RLO    Consult sales   I/O Module, 4 x 110Vac IN, 4 x Relay OUT
 EZIO-4ANI4ANOC    Consult sales   I/O Module, 4 x Analog IN, 4 x Analog OUT (current)
 EZIO-4ANI4ANOV    Consult sales   I/O Module, 4 x Analog IN, 4 x Analog OUT (voltage)
 EZIO-4DCI4ACO    Consult sales   I/O Module, 4 x 24Vdc IN, 4 x 110Vac OUT
 EZIO-4DCI4DCIF    Consult sales   I/O Module, 4 x 24Vdc IN, 4 x 24Vdc IN (fast interrupt)
 EZIO-4DCI4DCOP    Consult sales   I/O Module, 4 x 24Vdc IN, 4 x 24Vdc OUT (source)
 EZIO-4DCI4DCON    Consult sales   I/O Module, 4 x 24Vdc IN, 4 x 24Vdc OUT (sink)
 EZIO-4DCIP4RLO    Consult sales   I/O Module, 4 x 24Vdc IN, 4 x Relay OUT
 EZIO-4DCOP4ACO    Consult sales   I/O Module, 4 x 24Vdc OUT (source), 4 x 110Vac OUT
 EZIO-4HSCM1    Consult sales   I/O Module, High Speed Counter, 2 Quad Encoders (IN), 2 Counters with 2 PLS outputs each
 EZIO-4HSCM2    Consult sales   I/O Module, High Speed Counter, 1 Quad Encoder (IN), 1 Counter with 4 PLS outputs
 EZIO-4RLO    Consult sales   I/O Module, 4 x Relay OUT
 EZIO-4RTD    Consult sales   I/O Module, 4 x RTD IN (PT100)
 EZIO-4RTD-PT1000    Consult sales   I/O Module, 4 x RTD IN (PT1000)
 EZIO-4THIE    Consult sales   I/O Module, 4 x Thermocouple IN (Types J, K, S, T, E, R, B, N)
 EZIO-8ACI    Consult sales   I/O Module, 8 x 110Vac IN
 EZIO-8ACO    Consult sales   I/O Module, 8 x 110Vac OUT
 EZIO-8ANIC    Consult sales   I/O Module, 8 x Analog IN (current)
 EZIO-8ANIV    Consult sales   I/O Module, 8 x Analog IN (voltage)
 EZIO-8DCI    Consult sales   I/O Module, 8 x 24Vdc IN
 EZIO-8DCON    Consult sales   I/O Module, 8 x 24Vdc OUT (sink)
 EZIO-8DCOP    Consult sales   I/O Module, 8 x 24Vdc OUT (source)
 EZIO-8HSDCI    Consult sales   I/O Module, 8 x 24Vdc IN (fast)
 EZ I/O Accessories
 EZIO-SCDRV    Consult sales   Screwdriver, 2.5mm blade, for terminal blocks, pkg of 2
 EZIO-TERM11    Consult sales   11-Pin Removable 3.5mm Phoenix Terminal Block, for EZ I/O modules
 EZIO-TERM11CJC    Consult sales   11-Pin Removable 3.5mm Phoenix Terminal Block, for EZ I/O Thermocouple Module, with Built-in Cold Junction Compensator
 Universal Remote I/O Modules (Modbus/RS485) - DIN Rail mount
 HE359THM100 8 Weeks   ¥3,525.00    4 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N, 0.1 °C resolution) or Millivolt Inputs (+/-1000 mV)
 HE359THM200 8 Weeks   ¥5,345.00    8 channel Thermocouple Inputs (Types J,K,R,S,B,E,T,N, 0.1 °C resolution) or Millivolt Inputs (+/-1000 mV)
 HE359RTD100 10 Weeks   ¥3,525.00    4 channel RTD Inputs (Pt-100, Ni-100, Pt-1000, Ni-1000, 0.1 °C resolution) or Resistance Inputs (0-2000 ohm)
 HE359ADC107 8 Weeks   ¥3,040.00    4 channel Analog Inputs, Voltage (+/-10 Vdc), 1mV resolution
 HE359ADC120 2 Weeks   ¥3,155.00    4 channel Analog Inputs, Current (4-20 mA), 1uA resolution
 HE359ADC207 8 Weeks   ¥4,830.00    8 channel Analog Inputs, Voltage (+/-10 Vdc), 1mV resolution
 HE359ADC220 8 Weeks   ¥4,830.00    8 channel Analog Inputs, Current (4-20 mA), 1uA resolution
 HE359DAC007 8 Weeks   ¥3,580.00    2 channel Analog Outputs, Selectable between Voltage (0-10 Vdc, 1mV resolution) and Current (0-20 mA, 1uA resolution)
 HE359DAC107 2 Weeks   ¥5,590.00    4 channel Analog Outputs, Selectable between Voltage (0-10 Vdc, 1mV resolution) and Current (0-20 mA, 1uA resolution)
 HE359DAC201 2 Weeks   ¥6,895.00    8 channel Analog Outputs, Voltage (0-10 Vdc, 1mV resolution)
 HE359DIM610 8 Weeks   ¥3,040.00    12 DC Inputs (12/24 Vdc, negative logic)
 HE359DIQ512 8 Weeks   ¥2,495.00    4 DC Inputs (12/24 Vdc, neg logic), 4 Relay Outputs (250 Vac, 30 Vdc, 2A max)
† Price are shown in RMB.

 Note: I/O modules not included.
