OEM Style Acrylic Variable Area Flow Meters |
| FL7000 Series |
|
 |
|
|
OEM Style Acrylic Variable Area Flow Meters
 |

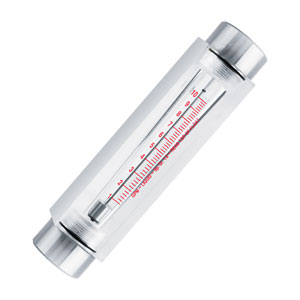

| Click for larger image. |
|
|
|
|
|
|
 |
FL7000 OEM-style variable area flow meters are
precisely machined from solid acrylic
blocks. They are available in 50, 75,
100, 127, and 250 mm scale lengths
(1.97, 2.96, 5, 3.94, and 9.85") and
have accuracies between 2 and 6%.
SPECIFICATIONS
Construction: Acrylic tube, 316 SS float and guide rod (no guide rod for FL7211 through FL7215 air meters), PVC end fittings (brass on FL7200 series), EPR O-rings
Shipping Weights:
FL7200, 7300, 7500: 0.45 kg (1 lb)
FL7400: 0.79 kg (1.75 lb)
FL7600: 1.25 kg (2.75 lb)
Max Pressure/Temperature:
Water Ranges: 125 psig at 21°C (70°F); 54°C (130°F) at 0 psig
Air Ranges: 100 psig at 21°C (70°F); 38°C (100°F) @ 0 psig
Full Scale Accuracy/Repeatability:
FL7200: 6/2%
FL7300: 6/1%
FL7400: 4/1%
FL7500: 3/½%
FL7600: 2/½%
|
|
|
|
|
|
† Price are shown in RMB.
Note: Comes complete with operator’s manual.
*Minimum flowrate = 10% of maximum flowrate listed.
For 5-point NIST calibration certificate, add suffix, "-NIST5" to model number, add $360 to price.
For 10-point NIST calibration certificate, add suffix "-NIST10" to model number, add $450 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) FL7601 Acrylic Variable Area Flow Meter, 2 GPM, $106, ¥1,715.00
|
|
|
|
|
| |
|
