Low Cost Industrial Variable Area Flow Meters With Capacities: 0.5 to 200 GPM of Water
FL-75
1 year warranty

Low Cost Industrial Variable Area Flow Meters
FL-75:Low Cost Industrial Variable Area Flow Meters With Capacities: 0.5 to 200 GPM of Water

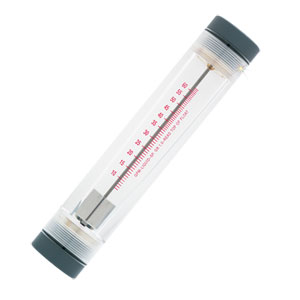

Click for larger image.

¥ 8,025.00  FL-75K
• Direct Reading Scales
• Shatter Resistant Construction
• Easy-to-Read 127 mm (5") Scale
• Vertical Connections for Easy Installation

View related products - Variable Area Flow Meters

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

OMEGA ® FL-75 flowmeters combine shatter resistant, non-glass construction and laboratory precision accuracy at an economical price.

SPECIFICATIONS
Accuracy Scale: 127 mm (5"), Direct Reading on Tube
Metering Tubes: Acrylic
Floats: 316 SS
Float Stops: Polysulfone
Guide Rods: 316 SS
O-Rings: EPR End
Fittings: PVC
Max. Temp./Pres.: 21°C (70°F) @ 125 psig; (FL-75 J thru P); 21°C (70°F) @ 150 psig; (FL-75 A thru G); 54°C (130°F) @ 0 psig for all
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 FL-75A 2 Weeks   ¥2,720.00    .5-5 GPM, 1 NPT
 FL-75C 4 Weeks   ¥2,720.00    2-22 GPM, 1 NPT
 FL-75C 4 Weeks   ¥2,720.00    2-22 GPM, 1 NPT
 FL-75D 8 Weeks   ¥2,885.00    3-30.5 GPM, 1 NPT
 FL-75E 7 Weeks   ¥2,720.00    1.5-15 GPM, 1 NPT
 FL-75F 2 Weeks   ¥3,180.00    5-40 GPM, 1.5 NPT
 FL-75G 7 Weeks   ¥3,465.00    8-50 GPM, 1.5 NPT
 FL-75J 8 Weeks   ¥8,265.00    4-40 GPM, 2 NPT
 FL-75K 7 Weeks   ¥8,025.00    6-60 GPM, 2 NPT
 FL-75L 8 Weeks   ¥8,025.00    8-80 GPM, 2 NPT
 FL-75M 2 Weeks   ¥8,025.00    20-100 GPM, 2 NPT
 FL-75N 7 Weeks   ¥8,025.00    30-120 GPM, 2 NPT
 FL-75P 7 Weeks   ¥8,025.00    55 to 200 GPM, 2 NPT
† Price are shown in RMB.

 Note: Comes complete with operator’s manual

For 5 point NIST calibration add suffix "-NIST5" to the model number, add $250. to the price.

For 10 point NIST calibration add suffix "-NIST10" to the model number, add $350 to the price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)


  Ordering Example: (1) FL-75L 2, ¥8,025.00
