Flexible Hermetic Sealed PFA RTD Sensor Probe

HSRTD Series

Flexible Hermetic Sealed PFA RTD Temperature Sensor Probe

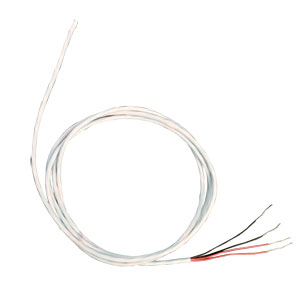

HSRTD Series:Flexible Hermetic Sealed PFA RTD Sensor Probe

Click for larger image.

•	100 Ω, Class “A” or “B” DIN Platinum Thin Film Element Standard, 1000 ohm Resistance Also Available
•	Sealed Against Moisture and Corrosion
•	PFA Insulated Cable
•	Temperature Range: -60 to 250ºC
•	4-Wire Configuration Standard
•	Hermetically Sealed RTD Sensor Probe Tip
•	Response Time = 3.75 Seconds Max in Water Flowing at 3 Feet per Second (63%)
View related products - RTD (PT100) Probes, Elements and Assemblies

The HSRTD Series Flexible RTD Temperature Sensor Probes are hermetically sealed at the sensor tip to provide continuous protection at the temperature measurement junction. The flexible sensor probe PFA cable forms a hermetic seal and electrically isolates the small RTD sensor, suited to a variety of applications.

For a hermetically sealed Thermocouple sensor, see the HSTC

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.

Popular Options and Accessories

CN1A-RTD	2 Weeks	¥2,215.00	1/16 DIN On-Off LCD Temperature Controller	qty.

DP460-RTD		Consult sales	Economical Temperature Meter	qty.

HH804U		¥1,750.00	Precision Handheld Thermometer	qty.

HSRTD-3-100-A-120-E		¥855.00	100 Ω, 4 wire, Class “A” sensor with 3m (120") of cable, stripped leads termination	qty.

HSRTD-3-100-A-180-E	6 Weeks	¥1,130.00	100 Ω, 4 wire, Class “A” sensor with 4.5m (180") of cable, stripped leads termination	qty.

HSRTD-3-100-A-240-E	9 Weeks	¥1,345.00	100 Ω, 4 wire, Class “A” sensor with 6m (240") of cable, stripped leads termination	qty.

HSRTD-3-100-A-300-E	9 Weeks	¥1,745.00	100 Ω, 4 wire, Class “A” sensor with 7.5m (300") of cable, stripped leads termination	qty.

HSRTD-3-100-A-40-E	2 Weeks	¥835.00	100 Ω, 4 wire, Class “A” sensor with 1m (40") of cable, stripped leads termination	qty.

HSRTD-3-100-A-80-E		¥745.00	100 Ω, 4 wire, Class “A” sensor with 2m (80") of cable, stripped leads termination	qty.

HSRTD-3-100-B-120-E	7 Weeks	¥800.00	100 Ω, 4 wire, Class “B” sensor with 3m (120") of cable, stripped leads termination	qty.

HSRTD-3-100-B-180-E	9 Weeks	¥950.00	100 Ω, 4 wire, Class “B” sensor with 4.5m (180") of cable, stripped leads termination	qty.

HSRTD-3-100-B-240-E	7 Weeks	¥1,185.00	100 Ω, 4 wire, Class “B” sensor with 6m (240") of cable, stripped leads termination	qty.

HSRTD-3-100-B-300-E	9 Weeks	¥1,395.00	100 Ω, 4 wire, Class “B” sensor with 7.5m (300") of cable, stripped leads termination	qty.

HSRTD-3-100-B-40-E	6 Weeks	¥730.00	100 Ω, 4 wire, Class “B” sensor with 1m (40") of cable, stripped leads termination	qty.

HSRTD-3-100-B-80-E	9 Weeks	¥740.00	100 Ω, 4 wire, Class “B” sensor with 2m (80") of cable, stripped leads termination	qty.

iDRN-RTD		Consult sales	Signal Conditioner with Analog Input for RTD Sensors	qty.

MTP-U-M		¥43.50	Miniature Connector	qty.

OM-DAQPRO-5300		Consult sales	Portable Handheld Datalogger	qty.

TA4F		¥127.00	Female, 4 pin, 'T' Series Miniature Instrumentation Connector	qty.

† Price are shown in RMB.

Note:
Options: Sensors come with stripped leads standard. For custom cable lengths greater than 6 m (240"), change the “-240” variable at the end of the model number to desired length in inches and add $2.25 per additional foot to the price. For miniature connectors add “-MTP” to the end of the model number and add $7 to price. For a 4-wire audio connector, add “-TA4F” to model number and add $17 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
Ordering Example: (1) HSRTD-3-100-B-40-E 100 Ohm, 4 Wire, Class “B” element with 40'' of cable, ¥730.00

Part Number Builder

		(1)		(2)		(3)
H H S S R R T T D D - - 3 3 - - 1 1 0 0 0 0	- -		- -		- - E E
Qty:

Option Descriptions

(1)

Resistance

Select
A for Class A Resistance
B for Class B Resistance

(2)

Wire Length

Select
40 for 1 m (40 in)
80 for 2 m (80 in)
120 for 3 m (120 in)
180 for 4.5 m (180 in)
240 for 6 m (240 in)

(3)

Miniature and Audo Connector

Select
Nothing(leave field blank) for None
-MTP for Miniature Connectors
-TA4F for Audio Connector

NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
