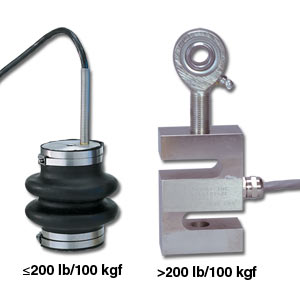

The LCM105 & LCM115 are also available in standard configurations, with 0-25 to 0-1000 lb ranges and standard threads.
Please see the LC105 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS Excitation: 10 Vdc, 15 Vdc max Output: 3 mV/V ±.0075 mV/V Linearity: ±0.03% FSO Hysteresis: ±0.05% FSO
±0.02% FSO Repeatability: ±0.01% FSO Zero Balance: ±1% FSO Operating Temp Range: -40 to 93°C (-40 to 200°F) Compensated Temp Range: 17 to 71°C (60 to 160°F) Thermal Effects: Zero: 0.002% FSO/°C Span: 0.002% rdg/°C Safe Overload: 150% of Capacity Ultimate Overload: 300% of Capacity Bridge Resistance: 350 ± 5 Ohms Full Scale Deflection: 0.25 to 0.50 mm (0.010 to 0.020") Construction: Aluminum Electrical (4-conductor shielded cable:) <250 kg: 9 m (30 ft) 24 AWG >100 kg: 9 m (30 ft) 20 AWG LC115/LCM115 Mating Connector: PT06F10-6S, sold separately
† Price are shown in RMB.
Note: Connector style available from 250 kgF and up, specify model LCM115-(capacity). Mating connector part number PT06F10-6S sold separately, $26.50. (OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
