High Accuracy Current Output Transducer, 7/16-20 or 1/4 NPT Connections |
| PX02-I |
|
 |
|
|
|
|
|
¥
9,225.00
PX02C1-100GI
|
| • |
High Accuracy
|
| • |
5-Point NIST Traceable Calibration Provided
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed Design for Harsh Environments
|
| • |
Available in Gage, Absolute and Sealed Gage Models
|
| • |

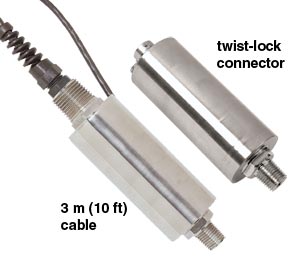

Cable or Connector Models
|
| • |
Optional Pressure Ports to Fit Most Industrial Applications
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA's PX02 Series is a high accuracy, industrial pressure transmitter. All stainless steel construction and a hermetically sealed
case makes the PX02 suitable for harsh industrial environments. It is a true high accuracy industrial device. A broad temperature compensated range of 16 to 71°C (60-160°F) and excellent temperature
compensation make this transducer very stable with fluctuating temperatures. The PX02 is available in gage, absolute or sealed
models as well as PSI or metric ranges. NPT and 7/16-20 O-ring seal fittings are available for industrial and hydraulic applications.
The PX02 is also available in metric configurations, with G1/4 or G1/8 ports, and
models from 0-160 mbar to 0-400 bar pressure ranges.
Please see the PXM02 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±10% adj.
Zero Balance: 4 mA +10% -2% adj.
Linearity: ±0.15% FSO
Hysteresis: ±0.05% FSO
Repeatability: ±0.05% FSO
Sensing Element: 4 active-arm bridge, using thick film strain gauges in a hermetically sealed chamber
Operational Temp Range: -46 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.009% FSO/°C
Zero: 0.009% FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH Stainless Steel
Pressure Port:
Style "C" = 1/4-18 NPT male
Style "D" = 1/4-18 NPT female
Style "J" = 7/16-20 UNF male
Style "K" = 7/16-20 UNF female
Style "S" = 1/4" HP tube (models ≥10,000 psi)
Electrical Connections:
Style "0" = 3 m cable
Style "1" = PTIH-10-6P connector
Style "6" = micro DIN
See Custom Configurations
Mating Connector:
Style "1" = PT06F10-6S (not included)
Style "6" = included
Weight: 170 g (6 oz)
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: (1) 2 and 5 psi Ranges available only on amplified output. (2) 1/4 HP Tube Fitting supplied for ranges 10,000 psi and above.(3)All Gage Pressure Ranges also available in Sealed Gage Pressure
Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00, plus (1) PX02K1-1KGI is a 0-1,000 PSIG transducer with 4-20 mA output, twist lock connector and 7/16-20 female fitting, ¥8,935.00, ¥326.00 + 8,935.00 = $9,261.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
C for 1/4 -18 NPT-M
D for 1/4 -18 NPT-F
J for 7/16 -20 UNF-M
K for 7/16 -20 UNF-F
S for 1/4 HP Tube Fitting (for models 10000 psi and over)
|
(2)
|
Electrical Connection
|
| |
Select
0 for 10ft cable (std)
1 for PT1H-10-6P Connector
5 for Lightening protected Amplifier Box (no charge) (4-20 mA models only)
|
(3)
|
Range (psi)
|
| |
Select
002 for 0-2
005 for 0-5
010 for 0-10
015 for 0-15
020 for 0-20
025 for 0-25
050 for 0-50
075 for 0-75
100 for 0-100
150 for 0-150
200 for 0-200
250 for 0-250
300 for 0-300
500 for 0-500
750 for 0-750
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
3K for 0-3000
3.5K for 0-3500
5K for 0-5000
7.5K for 0-7500
10K for 0-10000
20K for 0-20000
30K for 0-30000
|
(4)
|
Units
|
| |
Select
G for Gage Model
A for Absolute Model
S for Sealed Gage Model
|
(5)
|
Output
|
| |
Select
V for mV/V Output
5E for Isolated 0 to 5 Vdc
10E for 0 to 10 Vdc Output
I for 4 to 20mA Output
|
(6)
|
Options (Leave blank for no options)
|
| |
Select
for No Options
-OL for Overload Stops +$65
-OX for Cleaned for Oxygen use (takes 2 weeks +$75)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
