Discontinued - Wet/Wet Low Differential Pressure Transmitter

PX154

Wet/Wet Low Differential Pressure Transmitter

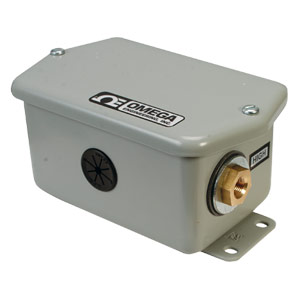

Click for larger image.

•	Low Differential Pressure Measurements
•	Zero and Span Controls are Provided for Easy Field Adjustment
•	Weatherproof NEMA-4 enclosure
•	For Industrial Applications Requiring Wet/Wet Differential Pressure
View related products - Pressure Transducers

This item is discontinued.

SPECIFICATIONS
Excitation: 24 Vdc (18 to 30 Vdc)
Output: 4 to 20 mA (2-wire)
Accuracy: ±0.75% BFSL
Response Time: 100 ms
Zero Balance: 1%
Zero and Span Adjustment: 10%
Compensated Temp: 0 to 50°C (32 to 122°F)
Thermal Effects:
Zero: ±0.03% FS/°C (±0.05% FS/°F)
Span: ±0.03% rdg/°C (±0.05% rdg/°F)
Proof Pressure: 20 psi
Common Line Pressure: 20 psi
Burst Pressure: 60 psi
Pressure Port: 1/8 FNPT
Media Compatibility: Liquids or gases compatible with brass, vinyl, polyester, silica and fluorosilicone
Termination: Screw terminal block
Enclosure: Epoxy coated, steel enclosure, NEMA 4 (IP65) rating
Dimensions: 141 x 75 x 100 mm (5 9/16 x 2 15/16 x 3 15/16")
Weight: 454 g (1.0 lb)

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
PX154-001DI		Consult sales	low differential pressure transmitter, 0 to 1.0 inch of water range	qty.

PX154-003DI		Consult sales	low differential pressure transmitter, 0 to 3.0 inch of water range	qty.

PX154-005DI		Consult sales	low differential pressure transmitter, 0 to 5.0 inch of water range	qty.

PX154-010DI		Consult sales	low differential pressure transmitter, 0 to 10.0 inch of water range	qty.

PX154-025DI		Consult sales	low differential pressure transmitter, 0 to 25.0 inch of water range	qty.

PS-8G	8 Weeks	¥133.00	Pressure snubber for gaseous media	qty.

PS-8E	5 Weeks	¥146.00	Pressure snubber for water and light oils	qty.

PS-8D	2 Weeks	¥146.00	Pressure snubber for dense liquids (motor oil)	qty.

TX4-100		¥465.00	100' spool of 4-conductor shielded wire	qty.

† Price are shown in RMB.
