Discontinued - Wet/Wet Differential Pressure Transmitter, Stainless Steel and Brass Construction
PX157
1 year warranty

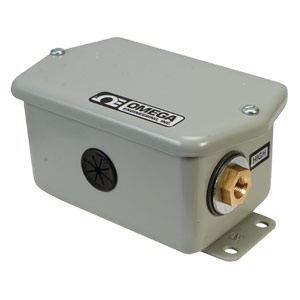

PX157:Discontinued - Wet/Wet Differential Pressure Transmitter, Stainless Steel and Brass Construction
Click for larger image.

• Liquids Can Be Applied to Both Ports
• Zero and Span Adjustments for Field Calibration
• Rugged Steel NEMA-4 Enclosure
• Bidirectional Ranges Available

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The OMEGA PX157 transmitter provides an accurate, reliable, and economical means for monitoring differential pressures in HVAC automation, pneumatic systems, and process control. The output can be easily interfaced with chart recorders, data loggers, and computerized monitoring and control systems. Modern, low- pressure chemical vapor deposition methods provide simple, stable molecular bonds between a proven metal diaphragm and a polysilicone strain gage bridge. The integral metal diaphragm and polysilicone bridge are virtually unaffected by shock, vibration, or mounting.
SPECIFICATIONS
Excitation: 24 V (2 wire) DC unregulated
Output: 4 to 20 mA
Accuracy: ±0.75% FS
Zero and Span Adjustment: ±10%
Operating Temperature: -40 to 120°C (-40 to 248°F)
Compensated Temperature: -30 to 80°C(-22 to 176°F)
Thermal Stability:
Zero: ±0.02%/°C
Span:±0.02%/°C
Proof Pressure: 2x FS
Burst Pressure: 3x FS
Response Time: 100 ms
Humidity Effects: 5 to 99% RH (non-condensing)
Media Compatibility: Liquids or gases compatible with brass and 17-4 PH stainless steel
Enclosure: Gasketed steel epoxy painted with NEMA 4 (IP65) rating
Pressure Port: 1.8 NPTF
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX157-005DI    Consult sales   wet/wet differential transmitter with a 0 to 5 psid range
 PX157-010DI    Consult sales   wet/wet differential transmitter with a 0 to 10 psid range
 PX157-015DI    Consult sales   wet/wet differential transmitter with a 0 to 15 psid range
 PX157-015BDI    Consult sales   wet/wet bidirectional differential transmitter with a -15 to 15 psid range
 PX157-030DI    Consult sales   wet/wet differential transmitter with a 0 to 30 psid range
 PX157-15/45BDI    Consult sales   wet/wet bidirectional differential transmitter with a -15 to 45 psid range
 PX157-060DI    Consult sales   wet/wet differential transmitter with a 0 to 60 psid range
 PX157-100DI    Consult sales   wet/wet differential transmitter with a 0 to 100 psid range
 PX157-150DI    Consult sales   wet/wet differential transmitter with a 0 to 150 psid range
 PX157-200DI    Consult sales   wet/wet differential transmitter with a 0 to 200 psid range
 PX157-300DI    Consult sales   wet/wet differential transmitter with a 0 to 300 psid range
 PX157-500DI    Consult sales   wet/wet differential transmitter with a 0 to 500 psid range
 PX157-750DI    Consult sales   wet/wet differential transmitter with a 0 to 750 psid range
 PX157-1KDI    Consult sales   wet/wet differential transmitter with a 0 to 1000 psid range
† Price are shown in RMB.

 Note: Pressure snubbers PS-8G (gas), PS-8E (liquids), or PS-8D (dense liquids) should be installed on transmitters, $10 each.
Comes with complete operator’s manual.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
