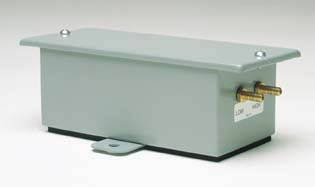

The PX274 is a rugged differential pressure transmitter that offers up to 6 field-selectable ranges in one unit. It incorporates a rugged NEMA 4 (IP65) dust-proof and splashproof enclosure with an external mounting bracket.
SPECIFICATIONS Excitation: PX274: 12 to 40 Vdc PX277: 12 to 35 Vdc Output: PX274: 4 to 20 mA (2 wire) PX277: 0 to 5 or 0 to 10 Vdc Accuracy: }1.0% FS Operating Temp: -18 to 80‹C (0 to 175‹F) Compensated Temp: -4 to 65‹C (25 to 150‹F) Thermal Effects: 0.02% URL/‹C (}0.0125%/‹F) Proof Pressure: 10 psi Media Compatibility: Clean, dry air or inert gas Pressure Fittings: 0.2" hose barbs (use 3.16" TygonR tubing) Termination: Screw terminal Enclosure: Enamel coated, 18 GA steel, NEMA 4 (IP65) rated Weight: 454 g (1.0 lb)
† Price are shown in RMB.
Ordering Example: (1) PX274-30DI Differential transducer with 4-20 mA output, 0-30 Inch H2O maximum range and 6 field selectable ranges, ¥2,365.00
