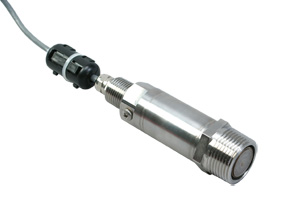

OMEGA's PX42 is a high-accuracy,
current output, industrial pressure
transmitter with a specially designed
flush diaphragm for use with
industrial fluids and slurries that
are difficult to measure because of
sticking or plugging of orifices.
Its hermetically sealed, all stainless
steel construction makes it suitable
for the harshest industrial
environments. Three meters (10')
of 2-conductor vented, shielded cable
is standard with a ½ NPT fitting on
the body for conduit installation.
Pressure ranges from 0 to 3 psi to
0 to 30 psi are available to cover
low-pressure processing and
industrial applications.
The PX42 is also available in metric configurations, with M 1 male threaded port and ranges from 0-400 mbar to 0-1.6 bar.
Please see the PXM42 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS Excitation: 12 to 40 Vdc Output: 4 to 20 mA ±0.10% adj Zero Balance: 4 mA +10% -2% FSO adj Accuracy: 0.25% linearity, hysteresis and repeatability combined Operating Temp Range: -54 to 121°C (-65 to 250°F) Compensated Temp Range: 16 to 71°C (60 to 160°F) Thermal Effects: Span: 0.009% of rdg/°C Zero: 0.009% of FSO/°C Proof Pressure: 200% of capacity Burst Pressure: 500% of capacity Wetted Parts: 316 SS with Inconel diaphragm Pressure Port: 1-11½ NPT male Electrical Connection: 3 m (10') 2-conductor vented cable with ½-14 NPT conduit fitting, with desiccant to protect vent from moisture
† Price are shown in RMB.
Note: Metric Ranges Available - Consult Engineering
