Submersible Water Level Transmitter, Measure 0-5 ft to 0-690 ft of Water - Discontinued

PX437-8-9
CE

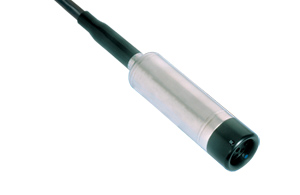

PX437-8-9:Submersible Water Level Transmitter, Measure 0-5 ft to 0-690 ft of Water - Discontinued
Click for larger image.

• Available with Accuracies of 0.5%, 0.25% and 0.1% of Full Scale
• Designed for Complete Submersibility
• Welded 316 Stainless Steel Construction
• Unique Cable Seal System Insures Water-Tight Integrity
• High Static Accuracy and Repeatability
• 100% Computer Tested, Calibrated and Serialized
• Calibration Sheet Provided
• Fully Temperature Compensated
• Moisture Trap Included as Standard Feature
Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

Our PX437 is being discontinued. We encourage you to use our newest submersible level transmitter with transient protection, the PX633 . This is a permanent replacement and is the optimal choice to satisfy all of your high demand level measuring applications.



OMEGA’s PX437, PX438 and PX439 Series submersible water level transmitters are designed to meet the rigorous environments of applications including well monitoring, pump tests, lift stations, chemical tank level, ground water and surface water measurement and process control and many others. They provide repeatable, precision depth measurements under the most adverse conditions.These transducers utilize a silicon pressure cell fitted into a stainless steel housing with an integral welded 316 stainless steel barrier diaphragm. The supplied calibration sheet specifies input and output data which reflects the unit’s static accuracy and thermal characteristics. Each transducer is shipped with a moisture trap that prevents moisture from entering the vent tube. Replacement moisture traps are available as accessory items.

SPECIFICATIONS
Excitation: 9 to 30 Vdc, reverse polarity protected
Output: 4 to 20 mA dc, 2 wire, short circuit protected
Input Current: 20 mA max
Zero Offset: ±0.12 mA max
Insulation Resistance: 100 MΩ at 50Vdc
Accuracy: PX437 0.1% FS BFSL, PX438 0.25% FS BFSL, PX439 0.5% FS BFSL (includes linearity, hysteresis and repeatability)
Response Time: 2 ms
Operating Temperature: -10 to 60°C (15 to 140°F)
Compensated Temperature: 0 to 50°C (32 to 120°F)
Combined Thermal Effect: ±0.05% FS/°C (Zero and Span) 0.1% FS/°C for 2 and 5 psig ranges
Proof Pressure: 150%
Burst Pressure: 200%
Wetted Parts: 316 Stainless Steel, acetal, Polyurethane Cable FKM or PFE
Fill Fluid: Silicone oil
Mounting Provisions: Suspended by cable. For turbulent conditions, specify optional mounting clamp Electrical
Connections: Submersible cable terminating in pigtail leads
Cable: Polyurethane jacketed shielded cable with polyethylene vent tube and Kevlar® tension members 198 lb (90 kg) pull strength Conductors are 22 AWG
Weight: 200 g (7 oz) transducer 79 g/m cable (0.8 oz/ft) cable weight

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 0.1% Accuracy Models
 PX437-002GI    Consult sales   0-2 psi, 0.1% accuracy, submersible transmitter with 20 foot cable
 PX437-005GI    Consult sales   0-5 psi, 0.1% accuracy, submersible transmitter with 20 foot cable
 PX437-010GI    Consult sales   0-10 psi, 0.1% accuracy, submersible transmitter with 40 foot cable
 PX437-015GI    Consult sales   0-15 psi, 0.1% accuracy, submersible transmitter with 50 foot cable
 PX437-030GI    Consult sales   0-30 psi, 0.1% accuracy, submersible transmitter with 90 foot cable
 0.25% Accuracy Models
 PX438-005GI    Consult sales   0-5 psi, 0.25% accuracy, submersible transmitter with 20 foot cable
 PX438-010GI    Consult sales   0-10 psi, 0.25% accuracy, submersible transmitter with 40 foot cable
 PX438-015GI    Consult sales   0-15 psi, 0.25% accuracy, submersible transmitter with 50 foot cable
 PX438-030GI    Consult sales   0-30 psi, 0.25% accuracy, submersible transmitter with 90 foot cable
 0.5% Accuracy Models
 PX439-002GI    Consult sales   0-2 psi, 0.5% accuracy, submersible transmitter with 20 foot cable
 PX439-005GI    Consult sales   0-5 psi, 0.5% accuracy, submersible transmitter with 20 foot cable
 PX439-010GI    Consult sales   0-10 psi, 0.5% accuracy, submersible transmitter with 40 foot cable
 PX439-015GI    Consult sales   0-15 psi, 0.5% accuracy, submersible transmitter with 50 foot cable
 PX439-030GI    Consult sales   0-30 psi, 0.5% accuracy, submersible transmitter with 90 foot cable
 PX439-050GI    Consult sales   0-50 psi, 0.5% accuracy, submersible transmitter with 135 foot cable
 PX439-100GI    Consult sales   0-100 psi, 0.5% accuracy, submersible transmitter with 250 foot cable
 PX439-150GI    Consult sales   0-150 psi, 0.5% accuracy, submersible transmitter with 365 foot cable
 PX439-200GI    Consult sales   0-200 psi, 0.5% accuracy, submersible transmitter with 480 foot cable
 PX439-250GI    Consult sales   0-250 psi, 0.5% accuracy, submersible transmitter with 595 foot cable
 PX439-300GI    Consult sales   0-300 psi, 0.5% accuracy, submersible transmitter with 710 foot cable
 ACCESSORIES
 PX430-TRAP    Consult sales   Replacement water vapor trap (1 included with transmitter)
 PX430-CLAMP    Consult sales   Mounting clamp
† Price are shown in RMB.

 Note: (1) To order 0.25% accuracy model specify PX438, for 0.1% accuracy specify PX437. See "Part Number Builder" below for pricing.
(2) For models with 1/4" NPT male pressure fitting add suffix "-NPT" to part number. No extra charge.
(3) For models with additional cable add $1.80 per foot of additional cable
   Part Number Builder
(1) (2) (3)
P
P
X
X
4
4
3
3
-
-
Qty:
Option Descriptions
(1) Accuracy
  Select
9 for 0.5% Full scale accuracy
8 for 0.25% Full scale accuracy
7 for 0.1% Full scale accuracy
(2) Pressure Range
  Select
002GI for 0-2 psi (0-4.6 feet of water) range
005GI for 0-5 psi (0-11.5 feet of water) range
010GI for 0-10 psi (0-23.1 feet of water) range
015GI for 0-15 psi (0-34.6 feet of water) range
030GI for 0-30 psi (0-69.2 feet of water) range
050GI for 0-50 psi (0-115 feet of water) range
100GI for 0-100 psi (0-230 feet of water) range
150GI for 0-150 psi (0-345 feet of water) range
200GI for 0-200 psi (0-460 feet of water) range
250GI for 0-250 psi (0-575 feet of water) range
300GI for 0-300 psi (0-690 feet of water) range
(3) Fitting
  Select
for No fitting
-NPT for 1/4-18 NPT male fitting
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
