Diffused Semiconductor Pressure Transducer
Rugged Aerospace Design |
| PX6000-5V |
|
 |
|
|
Diffused Semiconductor Pressure Transducer
 |

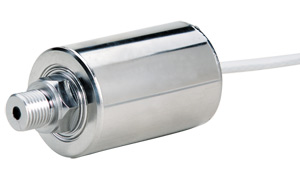

| Click for larger image. |
|
|
|
|
|
|
 |
OMEGA’s PX6000 pressure
transducer fits easily into your
application. This low-cost
transducer is small and light,
and mounting requires no bulky
structures.You select from
3 electrical terminations and
6 pressure fittings. The sensor is a
small [about 2.5 mm (0.1")] square
silicon chip with 4 diffused strain
gages, mounted in the stainless
steel case. Laser-trimmed resistors
provide temperature compensation
and adjust zero balance and span.
The 0 to 5 Vdc output is compatible with most control and data
acquisition systems.
The PX6000 Series uses solid
state media isolation for improved
reliability. Thin films of chemically
inert materials are deposited or
grown on the chip surface to provide
electrical isolation between the
sensor and the pressure medium.
The sensor is less sensitive to
vibration and more dependable in
high-shock environments because
the films add no significant mass.
Corrosion resistance is outstanding,
and the isolation will remain
effective because there is no
gel or oil column to deteriorate.
The PX6000 is also available in metric configurations, with G1/4 or G1/8 ports, and models
from 0-1 to 0-25 bar pressure ranges.
Please see the PXM6000 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 12 to 40 Vdc unregulated
Output: 0 to 5 Vdc ±0.1 Vdc adjustable ±10% FSO
Input Current: 15 mA max with no load
Output Resistance: Less than 200 Ω
Zero Balance: 0V ±0.1 Vdc Adjustable ±5% FSO
Dielectric Isolation Resistance: 100 MΩ minimum at 45 Vdc applied between the case or a conductive medium and the bridge circuit
Sensing Element: 4-active-arm bridge using a micro-machined diffused silicon diaphragm sensor, thin-film media and dielectric isolation barriers
Temperature Sensor: 900 to 1500 Ω Output resistance @ 24°C (75°F)
Temperature Coefficient: 8% min, 10% max per 55.5°C (100°F)
Accuracy: ±0.25% FSO for all ranges (Combined linearity, hysteresis and repeatability)
Operational Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: -18 to 82°C (0 to 180°F)
Thermal Effects:
Span: ±0.03% FSO/°F (0.054%/°C)
Zero: ±0.03% FSO/°F (0.054%/°C)
Vibration Sensitivity: At 20 g peak sinusoidal vibration from 10 Hz to 2000 Hz (1/2" D.A.), the output shall not exceed 0.04% FSO/g for 1 bar (15 psi) range to 0.005% FSO/g for 7 bar (100 psi) and above
Natural Frequency: Greater than 35 kHz for 7 bar (100 psi) and above
Shock: 100 g, 11 ms half sine wave without damage
Proof Pressure: 2 times rated pressure will not cause changes in performance beyond the specified tolerances
Burst Pressure: 3 times rated pressure for pressure ranges below 14 bar (200 psi), or 2.5 times rated pressure for pressure ranges above 14 bar (200) psi will not cause rupture of the pressure sensor
Wetted Parts: 316 stainless steel, silicon, Pyrex® glass, epoxy, Kovar®
Electrical Connection:
Style "0": 0.6 m (2 ft) cable
Style "1": PTIH-10-6P connector
Style "3": 4-pin eyelet header
Style "6": mini DIN connector
Pressure Port:
Style "A": 1/8-27 NPT, male
Style "B": 1/8-27 NPT, female
Style "C": 1/4-18 NPT, male, standard
Style "D": 1/4-18 NPT, female
Style "L": MS33656-4, male
Style "M": MS33649-4, female
Weight: 170 g (6 oz) typical
Mating Connector (Style 1): PTS06A-10-6S (sold separately)
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Metric Ranges Available - Consult Engineering
Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00,
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
L for MS33656-4 Male
M for MS33649-4 Female
A for 1/8-27 NPT Male
B for 1/8-27 NPT Female
C for 1/4-18 NPT Male
D for 1/4-18 NPT Female
|
(2)
|
Electrical Connection
|
| |
Select
1 for PT1H-10-6P Connector or equal (no charge) (mating connector not included)
0 for 2' (6m) cable (std) +2$/ft over 2'
3 for 4-pin Eyelet Header (no charge)
|
(3)
|
Range
|
| |
Select
30 for 30 to 0 in-Hg (Vacuum only)
015 for 0-15 psi
020 for 0-20 psi
050 for 0-50 psi
100 for 0-100 psi
200 for 0-200 psi
300 for 0-300 psi
|
(4)
|
Units
|
| |
Select
VAC for Vacuum Model
G for Gage Model
A for Absolute Model
|
(5)
|
Output
|
| |
Select
5T for 0 to 5 Vdc Output
V for mV/V Output
I for 4 to 20mA Output
|
(6)
|
Options
|
| |
Select
for No Options
-CAL11 for 11 point NIST Calibration($250.00 extra)
-xxFT for Extra length of cable $2/ft over 3ft
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
