Thin Film Pressure Transducer Gage, Vacuum and Compound Ranges
PX603 and PX613
1 year warranty

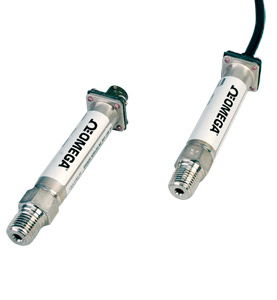

PX603 and PX613:Thin Film Pressure Transducer Gage, Vacuum and Compound Ranges
Click for larger image.

¥ 4,695.00  PX603-500G5V
• Excellent Long Term Stability
• All Stainless Steel Construction
• NEMA 4 Cable or Connector Models
• 0.4% Accuracy
• Thin Film Design For High Reliability
• Ideal for Liquid and Gas
• Zero and Span Adjustments

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Excitation: 10 to 30 Vdc unregulated
Output: 1 to 5 Vdc (3 wire)
Supply Current: <3.0 mA
Insulation Resistance: 100 MΩ @ 50 V
Accuracy: ±0.4% BFSL (Includes non-linearity, hysteresis and non-repeatability errors)
±1.0% Terminal Point Method Includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors
Hysteresis: ±0.2% FS
Repeatability: ±0.05% FS
Stability: ±1.0%/year
Durability: 100 million cycles
Operating Temperature: -48 to 90°C (-55 to 195°F)
Compensated Temperature: -29 to 82°C (-20 to 180°F)
Thermal Zero Effect: ±0.07% FS/°C
Thermal Span Effect: ±0.07% FS/°C
Proof Pressure:
    15 to 2000 psi = 200% FS
    3000 to 5000 psi = 150% FS
    7500 to 20,000 psi = 120% FS
Burst Pressure:
    15 to 2000 psi = 800% FS
    3000 to 5000 psi = 500% FS
    7500 to 20,000 psi = 500% FS
Gages: Thin-film polysilicone
Diaphragm: 17-4 PH stainless steel
Case: 300 Series stainless steel
Pressure Connection:
    15 to 10,000 psi = ¼ NPT
    15,000 and 20,000 psi = female Aminco fitting
Electrical Connection: 0.9 m (36") braided-shield PVC cable or connector
Mating Connector: PT06F8-4S (not included)
Weight: 128 g (4.5 oz) without cable
Response Time: 5 ms
Construction: Sealed units, except PX603 ≤500 psi is vented to room
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX603-30VAC5V In Stock   ¥5,220.00    0-30 inch of Mercury vacuum transducer with 3 foot cable and 1-5 Vdc output
 PX603-30V15G5V 9 Weeks   ¥5,220.00    30 inch vacuum to 15 psi transducer with 3 foot cable and 1-5 Vdc output
 PX603-015G5V 2 Weeks   ¥4,860.00    0-15 psi gage pressure transducer with 3 foot cable and 1-5 Vdc output
 PX603-060G5V 2 Weeks   ¥4,720.00    0-60 psi gage pressure transducer with 3 foot cable and 1-5 Vdc output
 PX603-3KG5V 2 Weeks   ¥4,720.00    0 to 3,000 psi gage pressure transducer with 3 foot cable and 1-5 Vdc output
 PX603-7.5KG5V 2 Weeks   ¥4,465.00    0-10,000 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PX613-30VAC5V 2 Weeks   ¥5,255.00    0-30 inch vacuum to 0 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PX613-100G5V 9 Weeks   ¥5,080.00    0-100 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PX613-300G5V 4 Weeks   ¥5,110.00    0-300 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PX613-1KG5V 2 Weeks   ¥5,110.00    0-1,000 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PX613-5KG5V 2 Weeks   ¥4,835.00    0 to 5,000 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PX613-10KG5V 2 Weeks   ¥5,555.00    0-10,000 psi gage pressure transducer with 4 pin connector and 1-5 Vdc output
 PT06F8-4S 2 Weeks   ¥291.00    Mating connector for PX613 series (sold separately)
† Price are shown in RMB.

 Note: 15,000 and 20,000 psi models supplied with female AMINCO fitting.
  Ordering Example: (1) PT06F8-4S mating connector (sold separately), ¥291.00,  plus (1) PX613-500G5V is a connector style transducer with a range of 0 to 500 psi, ¥5,080.00, ¥291.00 + 5,080.00 = $5,371.00
