Thin Film Pressure Transmitters, Stainless Steel Construction
PX605 and PX615
1 year warranty

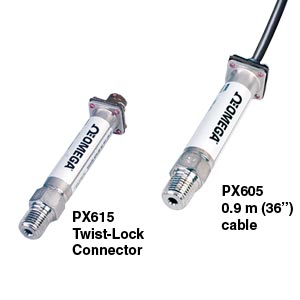

PX605 and PX615:Thin Film Pressure Transmitters, Stainless Steel Construction
Click for larger image.

¥ 4,415.00  PX605-100GI
• Excellent Long Term Stability
• NEMA 4 Cable or Connector Models
• 0.4% Accuracy
• Thin Film Design For High Reliability
• Ideal for Liquid and Gas Applications

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Excitation: 10 to 30 Vdc unregulated
Output: 4 to 20 mA (2-wire)
Supply Current: 20 mA
Insulation Resistance: 100 M½ @ 50 V
Accuracy: ±0.4% BFSL (Includes non-linearity, hysteresis and non-repeatability errors)
±1.0% Terminal Point Method Includes non-linearity, hysteresis, non-repeatability, zero offset and span setting errors
Hysteresis: ±0.2%
Repeatability: ±0.05%
Stability: ±1.0%/year
Durability: 100 million cycles
Operating Temperature: -48 to 90°C (-55 to 195°F)
Compensated Temperature: -29 to 82°C (-20 to 180°F)
Thermal Zero Effect: ±0.07% FS/°C
Thermal Span Effect: ±0.07% FS/°C
Proof Pressure:
15 to 2000 psi = 200% Full Scale;
3000 to 5000 = 150% FS
7500 to 20000 = 120% FS
Burst Pressure:
15 to 2000 psi = 800% FS
3000 to 5000 = 500% FS
7500 to 20000 = 500% FS
Gages: Thin film polysilicon
Diaphragm: 17-4PH Stainless Steel
Case: 300 Series Stainless Steel
Pressure Connection:
15 to 10,000 psi: 1/4 NPT
15,000 and 20,000 psi = female AMINCO fitting (9/16-18 UNF)
Electrical Connection: 0.9 m (36") braided shield PVC Cable or Connector.
Mating Connector (PX615): PT06F8-4S, sold separately
Response Time: 5 ms
Construction: Sealed units, except PX605 ≤500 psi is vented to room
Weight: 128 g (4.5 oz) without cable

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX605 Models, with 0.9 m (36') cable
 PX605-30VACI 4 Weeks   ¥5,110.00    0-30 inch of mercury vacuum transducer with 4-20 mA output and 3 foot cable
 PX605-30V15GI 4 Weeks   ¥4,835.00    30 inch of mercury (-14.7 psi) vacuum to 15 psi transducer with 4-20 mA output and 3 foot cable
 PX605-30V30GI 2 Weeks   ¥4,835.00    30 inch of mercury (-14.7 psi) vacuum to 30 psi transducer with 4-20 mA output and 3 foot cable
 PX605-30V60GI 9 Weeks   ¥5,110.00    30 inch of mercury (-14.7 psi) vacuum to 60 psi transducer with 4-20 mA output and 3 foot cable
 PX605-015GI 2 Weeks   ¥4,830.00    0-15 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-030GI 2 Weeks   ¥4,830.00    0-30 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-060GI 2 Weeks   ¥4,665.00    0-60 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-100GI In Stock   ¥4,415.00    0-100 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-150GI 2 Weeks   ¥4,415.00    0-150 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-200GI 2 Weeks   ¥4,665.00    0-200 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-300GI 4 Weeks   ¥4,415.00    0-300 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-500GI 2 Weeks   ¥4,665.00    0-500 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-3KGI 2 Weeks   ¥4,415.00    0-3000 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX605-5KGI 2 Weeks   ¥4,665.00    0-5000 psi gage pressure transducer with 4-20 mA output and 3 foot cable
 PX615 Models, with twist-lock connector
 PX615-30VACI 2 Weeks   ¥5,255.00    0-30 inch of mercury vacuum transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-100GI 2 Weeks   ¥5,110.00    0-100 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-150GI 2 Weeks   ¥5,110.00    0-150 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-200GI 9 Weeks   ¥5,110.00    0-200 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-500GI 9 Weeks   ¥5,080.00    0-500 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-1KGI 2 Weeks   ¥5,110.00    0-1000 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-2KGI 2 Weeks   ¥5,110.00    0-2000 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-3KGI 2 Weeks   ¥4,835.00    0-3000 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-5KGI 2 Weeks   ¥5,110.00    0-5000 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-7.5KGI 9 Weeks   ¥5,080.00    0-7500 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-10KGI 2 Weeks   ¥5,555.00    0-10000 psi gage pressure transducer with 4-20 mA output and 4 pin connector (mating connector sold separately)
 PX615-15KGI 9 Weeks   ¥5,885.00    0-15000 psi gage pressure transducer with 4-20 mA output, AMINCO 9/16-18 UNF fitting and 4 pin connector (mating connector sold separately)
 PX615-20KGI 2 Weeks   ¥5,570.00    0-20,000 psi gage pressure transducer with 4-20 mA output, AMINCO 9/16-18 UNF fitting and 4 pin connector (mating connector sold separately)
 ACCESSORIES
 PT06F8-4S 2 Weeks   ¥291.00    Mating connector for PX615 (sold separately)
† Price are shown in RMB.

 Note: 15,000 and 20,000 psi models supplied with female AMINCO 9/16 -18 UNF fitting
  Ordering Example: (1) PT06F8-4S mating connector (sold separately), ¥291.00,  plus (1) PX615-500GI is a connector style transducer with a range of 0 to 500 psi range and 4-20 mA output, ¥5,080.00, ¥291.00 + 5,080.00 = $5,371.00
   Part Number Builder
(1) (2)
P
P
X
X
6
6
-
-
I
I
Qty:
Option Descriptions
(1) Style
  Select
05 for Cable Style
15 for Connector Style
(2) Range
  Select
30VAC for 0-30 Inches of Mercury vacuum
30V15G for 30 In Hg vacuum to 15 psig
30V30G for 30 In Hg vacuum to 30 psig
30V60G for 30 In Hg vacuum to 60 psig
015G for 0-15 psig
030G for 0-30 psig
060G for 0-60 psig
100G for 0-100 psig
150G for 0-150 psig
200G for 0-200 psig
300G for 0-300 psig
500G for 0-500 psig
1KG for 0-1000 psig
2KG for 0-2000 psig
3KG for 0-3000 psig
5KG for 0-5000 psig
7.5KG for 0-7500 psig
10KG for 0-10000 psig
15KG for 0-15000 psig
20KG for 0-20000 psig
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
