Highly Accurate, Low Pressure Industrial Transmitter
PX656
1 year warranty

Highly Accurate, Low Pressure Industrial Transmitter

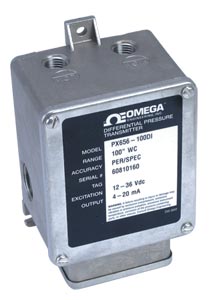

PX656:Highly Accurate, Low Pressure Industrial Transmitter
Click for larger image.

¥ 8,545.00  PX656-01DI
• IDEAL APPLICATIONS:
• Boiler Inlet Air
• HVAC
• Industrial Fume Hoods
• Level Control

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 4 to 20 mA (2 wire)
Operating Temp: -29 to 85°C (-20 to 185°F)
Compensated Temp: -18 to 72°C (0 to 160°F)
Thermal Effects:
    Zero: 0.015% FS/°F
    Span: 0.015% FS/°F
Proof Pressure: 10 psi
Burst Pressure: 50 psi
Static Pressure: 100 psi
Gage Type: Capacitance
Max Loop Resistance: (Supply voltage - 12) x 50 Ω
Calibration Report: NIST calibration at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean non-corrosive gases only
Enclosure: NEMA 4X (IP65); 137 L x 76 W x 64 mm D (5.4 x 3 x 2.5")
Pressure Port: ¼ NPTF
Electrical Conn: Screw terminal (two ½ NPTF conduit)
Weight: 955 g (2.1 lb)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX656-0.1DI 8 Weeks   ¥10,095.00    0-0.1 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-0.25DI 2 Weeks   ¥9,370.00    0-0.25 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-0.5DI 2 Weeks   ¥8,930.00    0-0.5 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-01DI 8 Weeks   ¥8,545.00    0-1 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-02DI 8 Weeks   ¥8,545.00    0-2 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-03DI 8 Weeks   ¥8,545.00    0-3 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-05DI 2 Weeks   ¥8,590.00    0-5 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-10DI 8 Weeks   ¥8,590.00    0-10 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-25DI 2 Weeks   ¥8,130.00    0-25 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-50DI 8 Weeks   ¥8,545.00    0-50 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-100DI 8 Weeks   ¥8,545.00    0-100 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-200DI 8 Weeks   ¥8,545.00    0-200 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-0.05BDI 8 Weeks   ¥10,095.00    -0.05 to +0.05 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-0.25BDI 8 Weeks   ¥8,930.00    -0.25 to +0.25 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-0.5BDI 8 Weeks   ¥8,545.00    -0.5 to +0.5 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-01BDI 2 Weeks   ¥8,590.00    -1 to +1 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-2.5BDI 8 Weeks   ¥8,545.00    -2.5 to +2.5 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-05BDI 8 Weeks   ¥8,590.00    -5 to +5 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-10BDI 2 Weeks   ¥8,590.00    -10 to +10 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-25BDI 2 Weeks   ¥8,590.00    -25 to +25 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-50BDI 8 Weeks   ¥8,545.00    -50 to +50 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
 PX656-100BDI 8 Weeks   ¥8,545.00    -100 to +100 inH2O range transmitter with NEMA-4 enclosure and 4-20 mA output
† Price are shown in RMB.

 Note: Comes with complete operator’s manual.
To Order the High Accuracy PX657, change PX656 to PX657 in Model Number. See Part Number Builder below.
  Ordering Example: (1) PX656-01DI is a high accuracy, 0-1 inH2O differential transmitter with NEMA-4 enclosure and 4-20 mA output, ¥8,545.00
   Part Number Builder
(1) (2)
P
P
X
X
6
6
5
5
-
-
D
D
I
I
Qty:
Option Descriptions
(1) Accuracy
  Select
6 for Standard Accuracy
7 for High Accuracy
(2) Range (inH2O)
  Select
0.1 for 0-0.1
0.25 for 0-0.25
0.5 for 0-0.5
01 for 0-1
02 for 0-2
03 for 0-3
05 for 0-5
10 for 0-10
25 for 0-25
50 for 0-50
100 for 0-100
200 for 0-200
0.05B for ± 0.05
0.25B for ± 0.25
0.50B for ± 0.50
01B for ± 1
2.5B for ± 2.5
05B for ± 5
10B for ± 10
25B for ± 25
50B for ± 50
100B for ± 100
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
