Flush Diaphragm Pressure Transmitter, all Stainless Steel

PX675

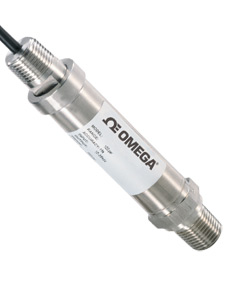

PX675:Flush Diaphragm Pressure Transmitter, all Stainless Steel
Click for larger image.

• All Stainless Steel Construction
• Non-clogging Flush Diaphragm Design
• NEMA 4X Environmental Integrity
• Paper Mills
• Printing Presses
• Thin Film Reliability
• 100% Production Calibrated
• NIST

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

The PX675 Series transducers utilize reliable thin film technology combined with a flush stainless steel diaphragm to deliver a rugged industrial transducer for applications where an orifice type transducer would not be suitable.

SPECIFICATIONS
Excitation: 10 to 36 Vdc unregulated
Loop Power: Vmin = 10 V + [0.022 x RL]
Output: 4 to 20 mA
Zero Balance: ±1% FS
Linearity: ±0.4% BFSL
Hysteresis: ±0.2%
Repeatability: ±0.15%
Operating Temperature: -29 to 82°C (-20 to 180°F)
Compensated Temperature: -29 to 71°C (-20 to 160°F)
Thermal Effects:
Zero: ±0.04% FS/°F
Span: ±0.04% FS/°F
Proof Pressure: 100 to 2K psi = 200% 3K to 5K = 150% full scale
Burst Pressure: 100 to 2K psi = 800% full scale 3K to 5K = 300% full scale
Vibration: <±0.1% FS effect for 20 g, 0 to 400 Hz in any axis
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX675-100SI    Consult sales   0-100 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-200SI    Consult sales   0-200 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-300SI    Consult sales   0-300 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-500SI    Consult sales   0-500 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-750SI    Consult sales   0-750 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-1KSI    Consult sales   0-1,000 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-2KSI    Consult sales   0-2,000 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-3KSI    Consult sales   0-3,000 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
 PX675-5KSI    Consult sales   0-5,000 psi sealed gage pressure flush diaphragm transducer with 4-20 mA output
† Price are shown in RMB.

 Note: Comes with complete operator’s manual.
