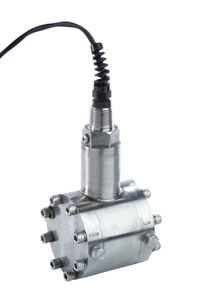

Industrial Wet/Wet Differential Pressure Transducer with Amplified Voltage Output |
| PX80-5V |
|
 |
|
|
|
|
|
|
|
| • |
Low Differential Pressure at High Line Pressure - up to 5,000 psi
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed for Harsh Environments
|
| • |
High Overpressure Capability
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX80 Series is a heavy duty, wet/wet, differential pressure transducer available in ranges from 0-1 to 0-5000 psid. The amplified 0-5V output is suitable for interface with most PLCs and computer based control systems. An extremely high over pressure capacity of 1500 psi or 150% of capacity (whichever is greater) make the PX80 an extremely durable transducer. The all stainless steel construction and high over pressure protection make the PX80 Series differential pressure transducers a high reliability transducer in harsh industrial environments.
The PX80 is also available in metric configurations, with
G1/8 or G1/4 ports, and models from 0-2 to 0-350 bar pressure ranges.
Please see the PXM80 for complete details, or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.009% rdg/°C
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port: See dimensional drawings on spec pages
Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "5" = Metal terminal box (4 to 20 mA output models only)
Style "6" = mini DIN
Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included)
Weight: 2.3 kg (5 lb)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Metric Ranges Available - Consult Engineering
Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00,
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
B for 1/8-27 NPT Female (1000 psid and over)
D for 1/4-18 NPT Female (700 psid and less)
|
(2)
|
Electrical Connection
|
| |
Select
0 for 10 ft PVC Cable
1 for PT1H-10-6P Connector or equal
5 for Explosion-proof Amplifier Box (4-20 mA model only)
|
(3)
|
Range (psid)
|
| |
Select
030 for 0-30
050 for 0-50
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500
700 for 0-700
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
2.5K for 0-2500
3K for 0-3000
5K for 0-5000
|
(4)
|
Output
|
| |
Select
DV for mV/V
D5T for +/- 5 Vdc
DI for 4-20 mA
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | |
|
|
|
|
|
|
| |
|
