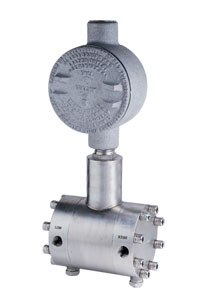

Industrial Wet/Wet Differential Pressure Transmitter, Measures Differentials on High Line Pressures |
| PX80-I-HEAD |
|
 |
|
|
|
|
|
|
|
| • |
Low Differential Pressure at High Line Pressure - up to 5,000 psi
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed for Harsh Environments
|
| • |
High Overpressure Capability
|
| • |
Rugged Lightening Protected Amplifier Housing
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX80 Series is a heavy duty, wet-wet, differential pressure transmitter available in ranges from 1 to 5,000 psid. All stainless steel construction and high over pressure protection make the PX80 Series suitable for harsh industrial environments.
SPECIFICATIONS
mV/V Output
Electrical:
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
5 Vdc Output
Electrical:
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj 4 to 20 mA Output
Electrical:
Excitation: 10 to 40 Vdc
Output: 4 to 20 mA ±0.8 mA adj
Max Loop Resistance: (Input voltage . 12) x 50
Zero Balance: 4 mA ± 0.4 mA adj
COMMON SPECIFICATIONS
Performance:
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Environmental:
Operating Temp Range:
mV/V: -73 to 163°C (-100 to 325°F)
Amplified: -46 to 107°C (-50 to 225°F)
Compensated Temp Range:
mV/V: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C (mV and 5 V
Zero: 0.013% FSO/°C (4 to 20 mA)
Span: 0.009% rdg/°C
Pressure:
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port:
1/4-18 NPTF: For .700 psi
1/8-27 NPTF: For .1000 psi
Electrical Termination:
Style 0 = 3 m (10') cable
Style 1 = PTIH-10-6P (or equiv)
Style 5 = Metal terminal box
Style 6 = Micro DIN
Mating Connector:
Style 1: PT06F-10-6S (not included)
Style 6: Mating connector (included)
Weight: 5 lb
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Metric Ranges Available - Consult Engineering
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
B5 for 1/8-27 NPT Female (1000 psid and over)
D5 for 1/4-18 NPT Female (700 psid and less)
|
(2)
|
Range (psid)
|
| |
Select
030 for 0-30
050 for 0-50
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500
700 for 0-700
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
2.5K for 0-2500
3K for 0-3000
5K for 0-5000
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
|
|
|
|
|
|
|
| |
|
