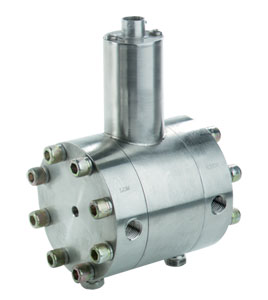

Triple Range Industrial Wet/Wet Differential Pressure Transducer |
| PX83-5V |
|
 |
|
|
|
|
|
|
|
| • |
Low Differential Pressure at High Line Pressure - up to 6,000 psi
|
| • |
3 User Selectable Ranges
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed for Harsh Environments
|
| • |
High Overpressure Capability
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX83 Series is a heavy duty, wet/wet, differential pressure transducer available in ranges up to ±3000 psid. Each model has three pre-calibrated user selectable ranges. The triple range ±5V output is suitable for applications where the pressure may vary from operation to operation and high accuracy and resolution are required for all situations. An extremely high over pressure capacity of 1500 psi or 150% (whichever is greater) make the PX83 an extremely durable transducer.
SPECIFICATIONS
Triple Range (Specifications Apply to All Ranges)
Electrical:
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Zero Balance: 0 V ±10% adj
Performance:
Accuracy: 0.25%
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Environmental:
Operating Temp Range: -46 to 107°C (-50 to 225°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C (0.005% FSO/°F)
Span: 0.009% FSO/°C (0.005% FSO/°F)
Line Pressure: 1500 psi or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi minimum
Mechanical:
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
1/4-18 NPTF for ranges 0-25 to 0-700 psi
1/8-27 NPTF for ranges ≤ 0-1000 psi
Electrical Connection: Cable or PTIH-10-6P (or equal)
Mating Connector: PT06F-10-6S (not included)
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: Metric Ranges Available - Consult Engineering
Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00,
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
B for 1/8-27 NPT-F
D for 1/4-18 NPT-F
|
(2)
|
Electrical Connection
|
| |
Select
0 for 10 ft 6-Conductor Cable
1 for PT1H-10-6P Connector or equal
|
(3)
|
Range (psid)
|
| |
Select
075 for ±025/050/075
150 for ±050/100/150
300 for ±100/200/300
600 for ±200/400/600
1K for ±500/750/1K
2K for ±750/1.5K/2K
3K for ±1K/2K/3K
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| |
|
|
|
|
|
|
| |
|
