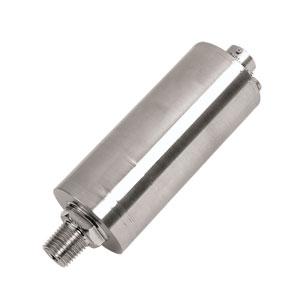

SPECIFICATIONS Excitation: 24 to 32 Vdc @25 mA Output: 0-5 Vdc (4-wire), ±10% adjustable Insulation Resistance: 5 Mohm @ 75 Vdc PERFORMANCE Accuracy: ±0.15% (Combined effect of linearity, hysteresis and repeatability) Hysteresis: ±0.10% typical Repeatability: +0.05% typical Zero Balance: 0 Vdc ±10% adjustable Shunt Value: 80% Full Scale Response Time: 2 mS Operable Temperature Range: 45 to 121°C (-50 to 250°F) Compensated Temperature Range: 16 to 71°C (60 to 160°F) Thermal Zero Effect: ±0.005% full scale/°F Thermal Sensitivity Effect: ±0.005% Reading/°F Proof Pressure: 150% Range Burst Pressure: 300% Range CONSTRUCTION Body Material: 17-4 PH Stainless Steel Diaphragm Material: 17-4 PH Stainless Steel Pressure Port: 1 /4 -18 NPT Male Thread 10 to 1,000 psi Female thread 3,000 to 7,500 psi Mating Connector: PT06F10-6S (not included) Weight: 13.5 oz (383 g)
Compatible Meters: DP41-E, DP25-E, and DPi Series
† Price are shown in RMB.
Note: Models with ranges 1000 psi and less have 1/4-18 NPT male fitting. Ranges 3000 psi and up have 1/4-18 NPT female fitting. Ordering Example: (1) PT06F10-6S mating connector (sold separately), ¥326.00,
