Air Temperature RTD Sensors
RTD-805 and RTD-806

Air Temperature RTD Sensors

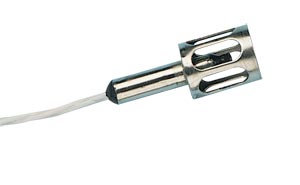

RTD-805 and RTD-806:Air Temperature RTD Sensors
Click for larger image.

¥ 1,380.00  RTD-805
• For Monitoring of Air and Gas Streams; Mounts in Any Orientation
• Exposed Sensing Element Has Fast Response Times in Air
• Available with Stainless Steel or Plastic Housings
• High-Accuracy, 100 Ohm, Class “A” DIN Platinum Element
• Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
• Provided with 3-Wire, PFA Insulated & Jacketed Cable with 3-Pin Miniature Connector for Connecting to Most Instruments
• Perfect for Air Temperature Monitoring and Control in Laboratories and Laminar Flow Benches
• Mating Connector & other accessory Sold Separately!!

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

Omega's Air Temperature RTD sensors. The platinum thin film RTD sensing element is exposed to air flow while being protected from passing debris by a vented housing (available in both plastic and steel). This construction uses a #26 AWG stranded nickel-plated copper, PFA insulated lead wire. This design comes standard with a removable miniature three pin connector.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RTD-805 In Stock   ¥1,380.00    Steel housing, 1m (40") of PFA insulated lead wire. MTP style connector termination.
 RTD-806 2 Weeks   ¥1,250.00    Plastic housing, 1m (40") of PFA insulated lead wire. MTP style connector termination.
 RTD-805-OTP 7 Weeks   ¥1,475.00    Steel housing, 1m (40") of PFA insulated lead wire. OTP style connector termination.
 RTD-806-OTP 2 Weeks   ¥1,465.00    Plastic housing, 1m (40") of PFA insulated lead wire. OTP style connector termination.
 RTD-805-TA3F 7 Weeks   ¥1,610.00    Steel housing, 1m (40") of PFA insulated lead wire. Audio connector termination.
 RTD-806-TA3F    Consult sales   Steel housing, 1m (40") of PFA insulated lead wire. Audio connector termination.
 Sold Separately, Mating Connector & clamp & other accessory Part Number
 OTP-U-F In Stock   ¥116.00    Mating Connector for OTP Style Termination
 MTP-U-F In Stock   ¥49.00    Mating Connector for MTP Style Termination
 PCLM In Stock   ¥14.50    Cable Clamp for OTP Type Connector
 PCLM-MTP 5 Weeks   ¥14.50    Cable Clamp for MTP Type Connector
 HH804U In Stock   ¥1,750.00    Two Channel Precision Hand Held Thermometer
 OM-CP-OCTRTD    Consult sales   8 Channel RTD Data Logger
 SPRTX-M1 12 Weeks   ¥2,095.00    4 to 20ma Plug-In Transmitter
 TECU10-MTP-U-M-MTP-U-F 7 Weeks   ¥240.00    10 Foot Long PFA Insulated Extension Cable with 3-Wire Miniature Connectors Both Ends
 DRF-RTD-115VAC--50/150C-4/20    Consult sales   RTD DIN Rail Mounting Signal Conditioner with -50 to 150C Range, 4 to 20mA Output and 115Vac Power
† Price are shown in RMB.

 Note: Terminations Available: Provided with a miniature connector standard. For heavy-duty connector add “-OTP” to model number and $7 to price. For audio connector add “-TA3F” to model number and $17 to price (Note: If specifing this connector please include wiring requirements). For terminal lugs add “-LUG” to model number and $4.50 to price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

This product page contains items that either have a Lithium Battery installed in the equipment or have a Lithium Battery packed with the equipment. These items as being regulated for air transportation. The following applies:
• No FX1D, FX2D or FX3D can be used as a ship method.
• Only UPS1, UPS2 or UPS3 is authorized.
• For International shipments UPS and DHL can be used. For DHL internationally – Omega only has permission to ship Lithium Batteries no other Hazardous Material.
  Ordering Example: (1) RTD-805 Air Sensor with Stainless Steel Housing, 100 Ohm Class A DIN Platinum Element, 1 meter (40, ¥1,380.00,  plus (1) RTD-806 Air Sensor with Plastic Housing, 100 Ohm Class A DIN Platinum Element, 1 meter (40, ¥1,250.00, ¥1,380.00 + 1,250.00 = $2,630.00
