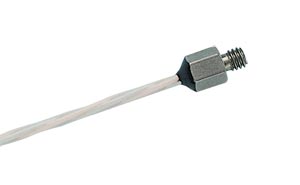

RTD Sensor with Miniature Threaded Housing
RTD-850

RTD Sensor with Miniature Threaded Housing
RTD-850:RTD Sensor with Miniature Threaded Housing
Click for larger image.

¥ 985.00  RTD-850
• Bolt Mountable RTD Sensor Can be Installed in Small Places, All That is Needed is a #8-32 Threaded Hole 3/16" Deep (Minimum).
• #8-32 Thread Body Has a 1/4" Hex for Installation.
• Sensor Contains a High-Accuracy, 100 Ohm, Class “A” DIN Platinum Element, 3-Wire Configuration With 1 Meter (40") of PFA Insulated & Jacketed Cable With 3-Pin Miniature Connector.
• Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
• Temperature Range Is -60 to 230ºC
• Mating Connector Sold Separately!!

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

The RTD-850 RTD sensor is designed for installation in #8-32 threaded holes or in thin items using a backing nut. Its small size allows for installation in tight spaces such as electronic equipment, power supples, equipment racks, motors, automated equipment, and many other places. The 100 Ohm Class A DIN platinum element is connected to 1 meter (40") of 3-wire PFA Insulated & jacketed cable and a 3-pin miniature connector for easy connection to measurement and control equipment.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RTD-850 In Stock   ¥985.00    Bolt-Mounted RTD Sensor with #8-32 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40") of PFA Insulated & Jacketed Cable With 3-pin Miniature Connector.
 RTD-850M 2 Weeks   ¥985.00    Bolt-Mounted RTD Sensor with M4 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40") of PFA Insulated & Jacketed Cable With 3-pin Miniature Connector.
 RTD-850-TA3F    Consult sales   Bolt-Mounted RTD Sensor with #8-32 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40") of PFA Insulated & Jacketed Cable With Audio Male connector
 RTD-850M-TA3F    Consult sales   Bolt-Mounted RTD Sensor with M4 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40") of PFA Insulated & Jacketed Cable With Male Audio Connector
 RTD-850-OTP 2 Weeks   ¥1,125.00    Bolt-Mounted RTD Sensor with #8-32 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40") of PFA Insulated & Jacketed Cable With 3-pin Standard Connector.
 RTD-850M-OTP 7 Weeks   ¥1,000.00    Bolt-Mounted RTD Sensor with M4 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40") of PFA Insulated & Jacketed Cable With 3-pin Standard Connector.
 Sold Separately, Mating Connector & clamp & other accessory Part Number
 MTP-U-F In Stock   ¥49.00    Mating Connecter of Miniature 3 PIn connector
 OTP-U-F In Stock   ¥116.00    Mating connector for 3 Pin standard Connector
 PCLM-MTP 5 Weeks   ¥14.50    Cable clamp for 3 Pin Miniature connector
 PCLM In Stock   ¥14.50    Cable clamp for 3 Pin Standard connector
 SPRTX-M1 12 Weeks   ¥2,095.00    4-20ma Plug-In Transmitter
 HH804U In Stock   ¥1,750.00    Dual Channel Precision Hand-Held Thermometer
 CNi3253 2 Weeks   ¥2,970.00    Temperature Controller
 DP25-RTD-DC10/32    Consult sales   Digital Display
 TECU10-MTP-U-M-MTP-U-F 7 Weeks   ¥240.00    10 Foot PFA Insulated Extension Cable with Miniature Male and Female Connectors
† Price are shown in RMB.

 Note: Terminations Available: Provided with a miniature connector standard. For heavy duty connector add “-OTP” to model number and $7 to price. For audio connector add “-TA3F” to model number and $10 to price.

(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) RTD-850 Bolt-Mounted RTD Sensor with #8-32 threaded tip, 100 Ohm Class A DIN Platinum RTD Element, 1m (40, ¥985.00
