Precision RTD Probes for Lab Applications
RTD-860

Precision RTD Probes for Lab Applications
RTD-860:Precision RTD Probes for Lab Applications
Click for larger image.

¥ 1,285.00  RTD-860
• High-Accuracy Class “A” 100 Ohm DIN Platinum Element Standard
• Temperature Coefficient (Alpha) = .00385 ohm/ohm/°C
• Temperature Range Is -200 to 230ºC
• Includes Stainless Steel Sheath and Flange with Pre-Drilled Mounting Holes for Easy Installation
• 3-Wire PFA Insulated & Jacketed Cable with Miniature 3-Pin Connector for Connecting to Most Instruments
• Mating Connector Sold Separately!

View related products - RTD (PT100) Probes, Elements and Assemblies

Click to scroll below to order See Specs PDF Related Items View a printer friendly page

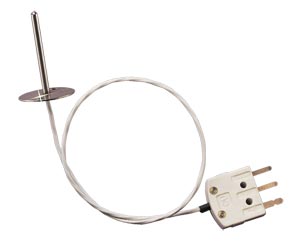

The RTD-860 sensor is designed for easy installation into air ducts, laminar flow booths or other applications where temperature measurements must be taken through thin walls or structures. The sensor features an all stainless steel welded construction consisting of a closed-end tube and mounting plate. The platinum RTD sensor is housed in the tip of the 1/8" diameter tube for fast response. The 1" dia. mounting plate has two (2) 0.15" diameter holes for convenient mounting, and the sensor is supplied with 1 meter (40") of PFA insulated & jacketed cable and miniature 3-pin connector.

Combine this sensor with Omega's extension cables, thermometer instruments, data loggers, controllers or displays to create a complete temperature control and monitoring system. Need to connect the RTD-860 to a remote location, try our SPRTX transmitter for a simple but effective plug-in 4-20 milliamp signal.
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 RTD-860 6 Weeks   ¥1,285.00    Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40") of PFA Insulated & Jacketed Cable and Miniature male MTP Connector.
 RTD-860-OTP 6 Weeks   ¥1,380.00    Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40") of PFA Insulated & Jacketed Cable and Standard male OTP Connector.
 RTD-860-TA3F    Consult sales   Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40") of PFA Insulated & Jacketed Cable and male Audio Connector.
 Sold Separately, Mating Connector & clamp & other accessory Part Numbers
 MTP-U-F In Stock   ¥49.00    Mating Connector for MTP Termination type
 OTP-U-F In Stock   ¥116.00    Mating Connector for OTP Termination type
 SPRTX-M1 20 Weeks   ¥2,095.00    Plug-In 4-20 ma Transmitter
 TECU10-MTP-U-M-MTP-U-F 6 Weeks   ¥240.00    10 Foot Long PFA Insulated Extension Cable with Miniature 3-Socket Connector One End and Miniature 3-Pin Plug Connector the Other End
 HH804U In Stock   ¥1,750.00    Single Channel Dual Channel High Accuracy RTD Thermometer
 CN1A-RTD 2 Weeks   ¥2,215.00    1/16 DIN On-Off LCD Temperature Controller
 DRF-RTD-115VAC-0/200C-4/20    Consult sales   RTD Input Signal Conditioner
 iDRN-RTD    Consult sales   Signal Conditioner with Analog Input for RTD Sensors
 OM-CP-RFRTDTEMP101A    Consult sales   Precision RTD Recorder and Wireless Transmitter
† Price are shown in RMB.

 Note: Terminations Available: Provided with standard miniature connector; for larger sized connector add “-OTP” to model number and $7 to price; for audio connector add “-TA3F” to model number and $17 to price.
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)
  Ordering Example: (1) RTD-860 Duct Mountable 100 Ohm Class A DIN Platinum RTD Sensor with Tube and Mounting Plate, 1Meter (40, ¥1,285.00
