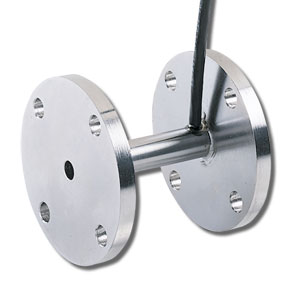

Reaction Torque Cells, Flange to Flange Mount

TQ301

Click for larger image.

^¥ 6,065.00 TQ301-400

•	All Stainless Steel Case for Long Term Reliability in Industrial Environments
•	High Accuracy
•	Shielded Cable for Precise Low Noise Measurements
•	Heavy Duty Mounting for Positive, Non-Slip Connection
View related products - Load Cells, Force Sensors and Torque Transducers

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
AccuracyClass: ±0.2% FSO
Linearity, Hysteresis, and Repeatability: ±0.2% FSO Combined
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects:
Zero: ±0.005% FSO/°F
Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 4 ft (1.2 m) 4-conductor shielded PVC cable, color coded

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TQ301-400	8 Weeks	¥6,065.00	Flange mounted reaction torque sensor with 400 in-lb range	qty.

TQM301-45N	13 Weeks	¥5,945.00	Flange mounted reaction torque sensor with 45 N-m range	qty.

† Price are shown in RMB.

Ordering Example: (1) TQ301-400 is a flange mounted reaction torque sensor with +/- 400 in-lb range, ¥6,065.00
