Reaction Torque Cells, Flange to Flange Mount, Metric, 0 to 45 N-m

TQM301 Series

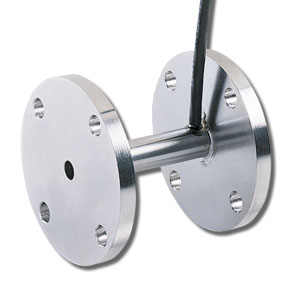

TQM301 Series:Reaction Torque Cells, Flange to Flange Mount, Metric, 0 to 45 N-m

Click for larger image.

•	All Stainless Steel Case for Long Term Reliability in Industrial Environments
•	High Accuracy
•	Shielded Cable for Precise Low Noise Measurements
•	Heavy Duty Mounting for Positive, Non-Slip Connection
View related products - Load Cells, Force Sensors and Torque Transducers

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms minimum
Output Resistance: 350 ±5 Ohms
Accuracy: ±0.2% FSO (linearity, hysteresis, and repeatability combined)
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects: Zero: ±0.009% FSO/°C Span: ±0.009% Rdg/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 1.2 m (4 ft) 4-conductor shielded color coded PVC cable

Order on www.omegaengineering.cn and 5% will be discounted when you checkout.

To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping

Part Number	Availability	Price(RMB)	Description	Qty.
TQM301-45N	13 Weeks	¥5,945.00	Flange mount reaction torque cell with 0 to 45 Newton meter range	qty.

† Price are shown in RMB.
