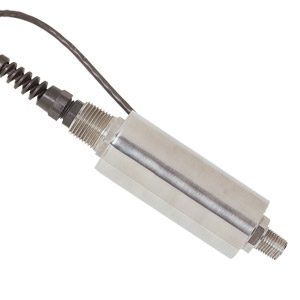

High Accuracy Amplified Voltage Output Pressure Transducer,
7/16-20 UNF or 1/4 NPT Connection |
| PX02-5V |
|
 |
|
|
|
|
|
¥
8,645.00
PX02K1-100G5E
|
| • |
Internal Shunt Resistor for Easy System Checks
|
| • |
All Stainless Steel Construction
|
| • |
5 Point NIST Traceable Calibration
|
| • |
Hermetically Sealed Double Diaphragm Design for Harsh Environments
|
| • |
Available in Gage, Absolute, Sealed Gage Models
|
| • |
Cable or Connector Models
|
| • |
Optional Pressure Ports to Fit Most Industrial Applications
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX02 Series is a high accuracy, amplified voltage output, industrial pressure transducer. All stainless steel construction and a hermetically sealed case makes the PX02 suitable for harsh industrial environments. It is a true high accuracy industrial device. A broad temperature compensated range of 16 to 71°C (60-160°F) and excellent temperature compensation make this transducer very stable with fluctuating temperatures. The PX02 is available in gage, absolute or sealed models as well as PSI or metric ranges. NPT and 7/16-20 O-ring seal fittings are available for industrial and hydraulic applications.
The PX02 is also available in metric configurations, with G1/4 or G1/8 ports, and
models from 0-160 mbar to 0-400 bar pressure ranges.
Please see the PXM02 for complete details, or contact our Pressure department for more information.
Consult sales for units available with Inconel construction.
SPECIFICATIONS
Excitation: 24 to 32 Vdc
Output: 0 to 5 Vdc ±10% adj
Linearity: 0.15% FSO
Hysteresis: 0.05% FSO
Repeatability: ±0.05% FSO
Zero Balance: 0 V ±10% adj
Sensing Element: 4 active-arm bridge, using thick film strain gages in a hermetically sealed chamber
Shunt Calibration Value: Specified on Calibration sheet
Operational Temp Range: -46 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span:0.0054% of rdg/°C
Zero: 0.0054% of FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH Stainless Steel
Pressure Port: 1/4 NPT or ¼" HP tube fitting (models ≥10,000 psi) standard; 7/16-20 UNF also available
Electrical Connections:
Style "0" = 3 m cable
Style "1" = PTIH-10-6P connector
Style "6" = micro DIN
See Custom Configurations
Mating Connector:
Style "1" = PT06F-10-6S (not included)
Style "6" = included
Weight: 170 g (6 oz)
For special options consult Sales or Pressure Engineering.
Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
|
|
|
|
|
|
† Price are shown in RMB.
Note: (1) 2 and 5 psi Ranges available only on amplified output. (2) 1/4 HP Tube Fitting supplied for ranges 10,000 psi and above. (3)All Gage Pressure Ranges also available in Sealed Gage Pressure.
Ordering Example: (1) PT06F10-6S Mating connector (sold separately), ¥326.00, plus (1) PX02K1-1KG5T is a 1,000 psi gage transducer with 0-5 V output, twist lock connector and 7/16-20 female pressure connection, ¥8,645.00, ¥326.00 + 8,645.00 = $8,971.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
C for 1/4 -18 NPT-M
D for 1/4 -18 NPT-F
J for 7/16 -20 UNF-M
K for 7/16 -20 UNF-F
S for 1/4 HP Tube Fitting (for models 10000 psi and over)
|
(2)
|
Electrical Connection
|
| |
Select
0 for 10ft cable (std)
1 for PT1H-10-6P Connector
5 for Lightening protected Amplifier Box (no charge) (4-20 mA models only)
|
(3)
|
Range (psi)
|
| |
Select
002 for 0-2
005 for 0-5
010 for 0-10
015 for 0-15
020 for 0-20
025 for 0-25
050 for 0-50
075 for 0-75
100 for 0-100
150 for 0-150
200 for 0-200
250 for 0-250
300 for 0-300
500 for 0-500
750 for 0-750
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
3K for 0-3000
3.5K for 0-3500
5K for 0-5000
7.5K for 0-7500
10K for 0-10000
20K for 0-20000
30K for 0-30000
|
(4)
|
Units
|
| |
Select
G for Gage Model
A for Absolute Model
S for Sealed Gage Model
|
(5)
|
Output
|
| |
Select
V for mV/V Output
5E for 0 to 5Vdc Output
10E for 0 to 10 Vdc Output
I for 4 to 20mA Output
|
(6)
|
Options (Leave blank for no options)
|
| |
Select
for no options leave blank
-OL for Overload Stops +$65
-OX for Cleaned for Oxygen use (takes 2 weeks +$75)
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
