High Accuracy Electronic Barometer |
| PX02-BAR |
|
 |
|
|
|
|
|
¥
10,050.00
PX02K1-26A5E
|
| • |
High Accuracy
|
| • |
Broad Temperature Compensated
-18 to 66°C (0 to 150°F)
|
| • |
NIST Traceable Calibration Certificate
|
| • |
All Stainless Steel Construction
|
| • |
Hermetically Sealed for Harsh Environments
|
| • |
Cable or Connector Models
|
| • |

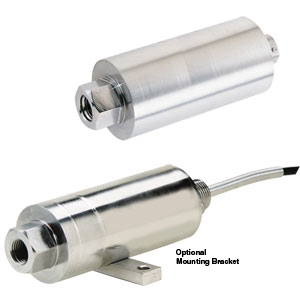

Mounting Bracket Option
|
| • |
See Related Links Below for Cables and Accessories
|
View related products - Pressure Transducers
|
| |
|
|
|
 |
OMEGA’s PX02 Electronic Barometer is a high accuracy,
electronic barometer available in three ranges, 16-32 inHg,
26-32 inHg or 28-32 inHg (absolute pressure) for laboratory or
industrial test applications. They are hermetically sealed with
all stainless steel construction which make them ideally suitable for
harsh industrial environments. Their high operating temperature,
broad compensated range and excellent temperature
compensation allow stable readings in applications with
fluctuating temperatures commonly found where barometric
pressure must be monitored.
The PX02-BAR is also available in metric configurations, with G1/4 or G1/8 ports, and models from 542 to 1084 hPa pressure ranges.
Please see the PXM02-BAR for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
0 to 5 V Model
Input, Recommended: 24 to 32 Vdc
Input, Maximum: 32 Vdc
Output, FS: 0 to 5 Vdc
Linearity: ±0.15% FS
Hysteresis: ±0.1% FS
Repeatability: ±0.05% FS
Zero Balance: 0 ±10% FS, adjustable
Thermal Effects:
Span: 0.005% rdg/°F (0.009%/ºC)
Zero: 0.005% FS/°F (0.009%/ºC)
4 to 20 mA Model
Input, Recommended: 10 to 40 Vdc
Input, Maximum: 40 Vdc
Output, FS: 4 to 20 mA
Accuracy: 0.25% FS, linearity, hysteresis and repeatability combined
Zero Balance: 4 mA +10% -2% FS adj
Thermal Effects:
Span: 0.005% rdg/°F (0.009%/ºC)
Zero: 0.005% FS/°F (0.009%/ºC)
Agency Approvals: FM Intrinsically Safe; IS/I.II.III/1/ABCDEFG
COMMON SPECIFICATIONS
Operating Temp Range: -47 to 121°C (-50 to 250°F)
Compensated Temp Range: -18 to 66°C (0 to 150°F)
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
Style "K": 7/16-20 UNF female, standard
Style "J": ; 7/16-20 UNF male
Style "C": , 1/4 NPT male
Style "D": , 1/4 NPT female
Electrical Connection:
Style "0": 3 m (10 ft) cable
Style "1": PTIH-10-6P, standard
Style "6": mini DIN connector
Mating Connector:
Style "1": PT06F10-6S (sold separately)
Weight: 425 g (15 oz)
|
|
|
|
|
|
† Price are shown in RMB.
Ordering Example: (1) PX02K1-26AI-MB is a 26 to 32 inHg calibrated electronic barometer with 7 /16-20 internal connection, 4-20mA output, a Bendix connector and the optional mounting bracket, ¥10,740.00
|
|
|
|
|
|
|
|
|
Part Number Builder |
|
|
|
|
|
|
|
|
Option Descriptions
|
|
(1)
|
Pressure Port
|
| |
Select
C for 1/4 -18 NPT-M
D for 1/4 -18 NPT-F
J for 7/16 -20 UNF-M
K for 7/16 -20 UNF-F
|
(2)
|
Electrical Connection
|
| |
Select
0 for 10ft cable (std)
1 for PT1H-10-6P Connector
5 for Lightening protected Amplifier Box (no charge) (4-20 mA models only)
|
(3)
|
Range (psi)
|
| |
Select
16 for 16-32 inHg
26 for 26-32 inHg
28 for 28-32 inHg
|
(4)
|
Units
|
| |
Select
A for Absolute Model
|
(5)
|
Output
|
| |
Select
5E for 0 to 5Vdc Output
I for 4 to 20mA Output
|
(6)
|
Options
|
| |
Select
for no options
-MB for optional mounting bracket
|
|
NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
|
| | | | |
|
|
|
|
|
|
| |
|
