Highly Accurate, Low Pressure Laboratory Transducer
PX653
1 year warranty

Highly Accurate, Low Pressure Laboratory Transducer

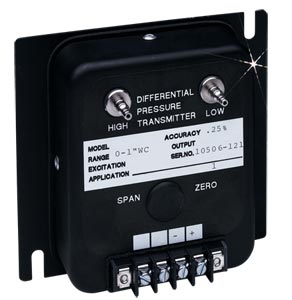

PX653:Highly Accurate, Low Pressure Laboratory Transducer
Click for larger image.

¥ 8,005.00  PX653-0.1D5V
• Clean Rooms
• HVAC
• Laboratory Fume Hoods
• NIST Traceable Calibration Certificate

View related products - Pressure Transducers

Click to scroll below to order See Specs PDF Manuals Related Items View a printer friendly page

SPECIFICATIONS
Excitation: 12 to 36 Vdc
Output: 1 to 5 Vdc (3 wire)
Linearity: 0.3% FS (BFSL)
Hysteresis: 0.02% FS
Repeatability: 0.05% FS
Operating Temperature: -29 to 72°C (-20 to 160°F)
Compensated Temperature: 2 to 57°C (35 to 135°F)
Thermal Effects:
    Zero: 0.015% FS/°F
    Span: 0.015% rdg/°F
Proof Pressure: 15 psi
Burst Pressure: 20 psi
Static Pressure: 25 psi
Gage Type: Capacitance
Supply Current: <5 mA
Calibration Report: NIST cal at 25, 50, 75 and 100% FS; upscale and downscale provided
Response Time: 250 ms
Wetted Parts: Dry, clean, non-corrosive gases only
Enclosure: NEMA 2 (IP62), 107 H x 117 W x 53 mm D (4.2 x 4.6 x 2.1")
Pressure Port: ¼ barbed fittings (tubing TY-316-100)
Electrical Connections.: Screw terminal
Weight: 368 g (13 oz)
Order on www.omegaengineering.cn and 5% will be discounted when you checkout.
  To Order (Specify Model Number)
All list prices are pre-VAT rate not including tax and shipping
 Part Number   Availability   Price(RMB)   Description    Qty.
 PX653-0.1D5V 8 Weeks   ¥8,005.00    high accuracy, low pressure transducer, with a 0 to 0.1' H2O range
 PX653-0.25D5V 8 Weeks   ¥7,155.00    high accuracy, low pressure transducer, with a 0 to 0.25' H2O range
 PX653-0.5D5V 2 Weeks   ¥6,730.00    high accuracy, low pressure transducer, with a 0 to 0.5' H2O range
 PX653-01D5V 8 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a 0 to 1' H2O range
 PX653-02D5V 2 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a 0 to 2' H2O range
 PX653-03D5V 8 Weeks   ¥6,230.00    high accuracy, low pressure transducer, with a 0 to 3' H2O range
 PX653-05D5V 8 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a 0 to 5' H2O range
 PX653-10D5V 2 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a 0 to 10' H2O range
 PX653-25D5V 8 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a 0 to 25' H2O range
 PX653-50D5V 8 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a 0 to 50' H2O range
 PX653-0.05BD5V 8 Weeks   ¥7,675.00    high accuracy, low pressure transducer, with a bidirectional range of -0.05 to 0.05' H2O
 PX653-0.25BD5V 8 Weeks   ¥6,690.00    high accuracy, low pressure transducer, with a bidirectional range of -0.25 to 0.25' H2O
 PX653-0.5BD5V 8 Weeks   ¥6,230.00    high accuracy, low pressure transducer, with a bidirectional range of -0.5 to 0.5' H2O
 PX653-01BD5V 8 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a bidirectional range of -1 to 1' H2O
 PX653-2.5BD5V 2 Weeks   ¥6,230.00    high accuracy, low pressure transducer, with a bidirectional range of -2.5 to 2.5' H2O
 PX653-05BD5V 8 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a bidirectional range of -5 to 5' H2O
 PX653-10BD5V 8 Weeks   ¥6,230.00    high accuracy, low pressure transducer, with a bidirectional range of -10 to 10' H2O
 PX653-25BD5V 2 Weeks   ¥6,265.00    high accuracy, low pressure transducer, with a bidirectional range of -25 to 25' H2O
 PX653-50BD5V 8 Weeks   ¥6,230.00    high accuracy, low pressure transducer, with a bidirectional range of -50 to 50' H2O
† Price are shown in RMB.

 Note: Comes complete with operator’s manual and calibration certificate.
  Ordering Example: (1) PX653-01D5V high accuracy, low pressure transducer, with a 0 to 1'' H2O range, ¥6,265.00
